£79.14
excl. VAT
£94.97 incl. VAT
£94.97
incl. VAT
£79.14 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Basic radial load dynamic | 44500 N |
|---|---|
| Basic radial load static | 38000 N |
| Bearing model type | Deep groove ball bearings |
| Content in sale unit | 1 pcs |
| Inner ring shape | Cylindrical |
| Inside diameter | 45 mm |
| Inside diameter of outer ring | 72.4 mm |
| Manufacturer | Schaeffler |
| Material | Steel |
| Max rotation speed | 6700 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -20 °C |
| Original number equivalent | 4209-BB-TVH |
| Outside diameter | 85 mm |
| Outside diameter of inner ring | 58.1 mm |
| Radial internal clearance code | CN |
| Ref rotation speed | 7000 r/min |
| Regreasable | Yes |
| Rows number | 2 |
| Sealing | Open |
| Unit | Each |
| Weight | 0.54 kg |
| Width | 23 mm |
Logistics
| EAN | 40266779661314064328127869 |
|---|---|
| Unit of measure | EA |
| Weight | 540 g |
| Dimensions | 96 × 95 × 27 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000093232
FAG Angular contact ball bearing 3320M
£2,047.29 excl.
£2,456.75 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000149361
FAG Deep groove ball bearing 15x32x9mm INA/FAG 6002ZZC3
£4.61 excl.
£5.53 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000085973
FAG Angular contact ball bearing 3211BDXL2HRSTVHC3
£137.89 excl.
£165.47 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000153489
FAG Deep groove ball bearing 15x42x13mm INA/FAG 6302ZZC3
£5.38 excl.
£6.46 incl.
In stock
Expected to ship on Tuesday 22 September

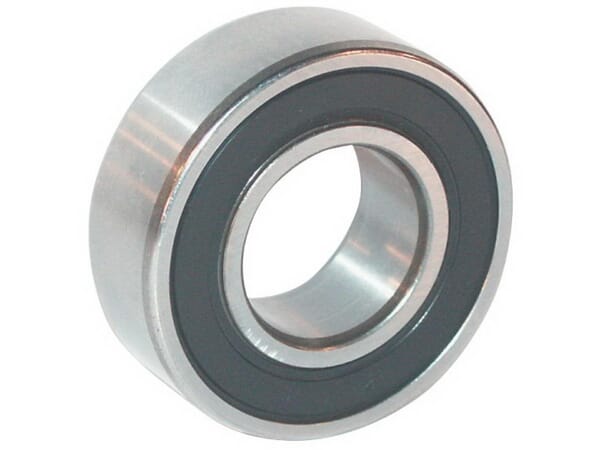

BPA000155833
