£3.45
excl. VAT
£4.14 incl. VAT
£4.14
incl. VAT
£3.45 excl. VAT
In stock
Expected to ship on Tuesday 22 September
About this product
A deep groove ball bearing with a 6 mm bore, 19 mm outside diameter, and 6 mm width, supplied as a single piece. Manufactured by Schaeffler (FAG/INA brand), this single-row bearing features an open design with no integral sealing and cylindrical inner and outer rings. The bearing carries a radial internal clearance code of CN and is rated for a maximum rotation speed of 53,000 r/min (reference speed 32,000 r/min). Basic dynamic radial load capacity is 2340 N; static radial load capacity is 885 N. The bearing is suitable for continuous operation between −30 °C and 120 °C and is regreasable. Total weight is approximately 8 g. EAN 40128024066104054372940279.
Product details
| Basic radial load dynamic | 2340 N |
|---|---|
| Basic radial load static | 885 N |
| Bearing model type | Deep groove ball bearings |
| Bore type | Cylindrical |
| Content in sale unit | 1 pcs |
| Inner ring shape | Cylindrical |
| Inside diameter | 6 mm |
| Inside diameter of outer ring | 15.5 mm |
| Manufacturer | Schaeffler |
| Material | Steel |
| Max rotation speed | 53000 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | 626 |
| Outside diameter | 19 mm |
| Radial internal clearance code | CN |
| Ref rotation speed | 32000 r/min |
| Regreasable | Yes |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Width | 6 mm |
Logistics
| EAN | 40128024066104054372940279 |
|---|---|
| Unit of measure | EA |
| Weight | 8 g |
| Dimensions | 19 × 19 × 6 mm |
| Dangerous goods | No |
You might also like
BPA000380771
FAG Housing unit UCP UCP214
£86.86 excl.
£104.23 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000153552

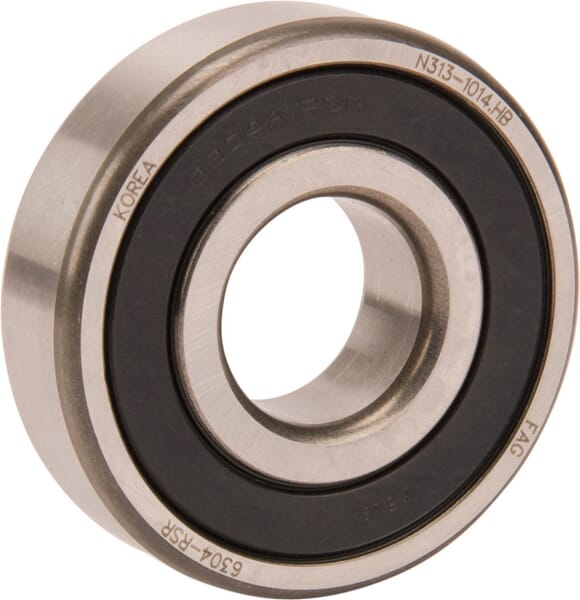

FAG Deep groove ball bearing 20x52x15mm INA/FAG 6304RSR
