£193.01
excl. VAT
£231.61 incl. VAT
£231.61
incl. VAT
£193.01 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Basic radial load dynamic | 70000 N |
|---|---|
| Basic radial load static | 71000 N |

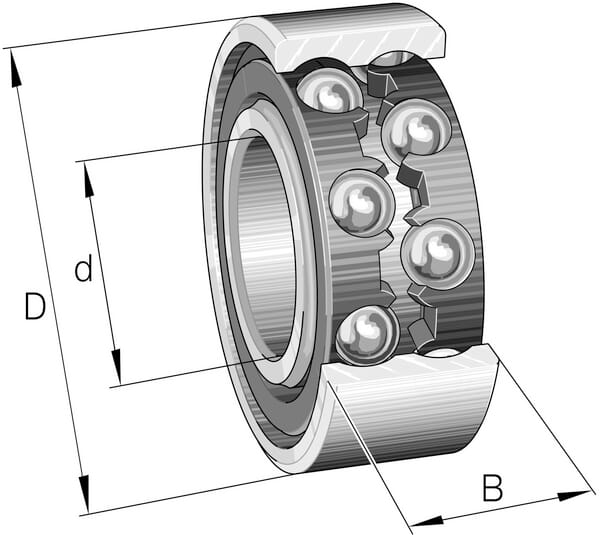

| Bearing model type | Deep groove ball bearings |
| BWidth | 31 mm |
| Content in sale unit | 1 pcs |
| dInside diameter | 70 mm |
| DOutside diameter | 125 mm |
| Inner ring shape | Cylindrical |
| Inside diameter of outer ring | 109.44 mm |
| Manufacturer | Schaeffler |
| Material | Steel |
| Max rotation speed | 4300 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -20 °C |
| Original number equivalent | 4214-B-TVH |
| Outside diameter of inner ring | 91.7 mm |
| Radial internal clearance code | CN |
| Ref rotation speed | 4500 r/min |
| Regreasable | Yes |
| Rows number | 2 |
| Sealing | Open |
| Unit | Each |
| Weight | 1.521 kg |
Logistics
| EAN | 4012801197090 |
|---|---|
| Unit of measure | EA |
| Weight | 1519 g |
| Dimensions | 142 × 135 × 40 mm |
| Dangerous goods | No |
