£8.20
excl. VAT
£9.84 incl. VAT
£9.84
incl. VAT
£8.20 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Basic radial load dynamic | 1270 N |
|---|---|
| Basic radial load static | 530 N |
| Bearing model type | Deep groove ball bearings |
| Bore type | Cylindrical |
| Content in sale unit | 1 pcs |
| Inner ring shape | Cylindrical |
| Inside diameter | 8 mm |
| Inside diameter of outer ring | 13.5 mm |
| Manufacturer | Schaeffler |
| Material | Steel |
| Max rotation speed | 63000 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | 688-HLC |
| Outside diameter | 16 mm |
| Outside diameter of inner ring | 9.65 mm |
| Radial internal clearance code | CN |
| Ref rotation speed | 37000 r/min |
| Regreasable | Yes |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Weight | 0.038 kg |
| Width | 5 mm |
Logistics
| EAN | 4012802603149 |
|---|---|
| Unit of measure | EA |
| Weight | 4 g |
| Dimensions | 16 × 16 × 4 mm |
| Dangerous goods | No |
You might also like
BPA000150381
FAG Deep groove ball bearing 45x75x16mm INA/FAG 6009C3
£11.09 excl.
£13.31 incl.
In stock
Expected to ship on Friday 18 September
BPA000380551
FAG Bearing insert 55x100x25.6mm INA/FAG UC211INA
£35.39 excl.
£42.47 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000072896
FAG Spherical roller bearing 95x200x67mm 22319E1XLC3
£659.67 excl.
£791.60 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000153885
FAG Deep groove ball bearing 60x130x31mm INA/FAG 6312
£43.35 excl.
£52.02 incl.
In stock
Expected to ship on Friday 18 September
BPA000155581
FAG Deep groove ball bearing 70x125x24mm INA/FAG 6214ZZ
£72.63 excl.
£87.16 incl.
In stock
Expected to ship on Friday 18 September
BPA000052195

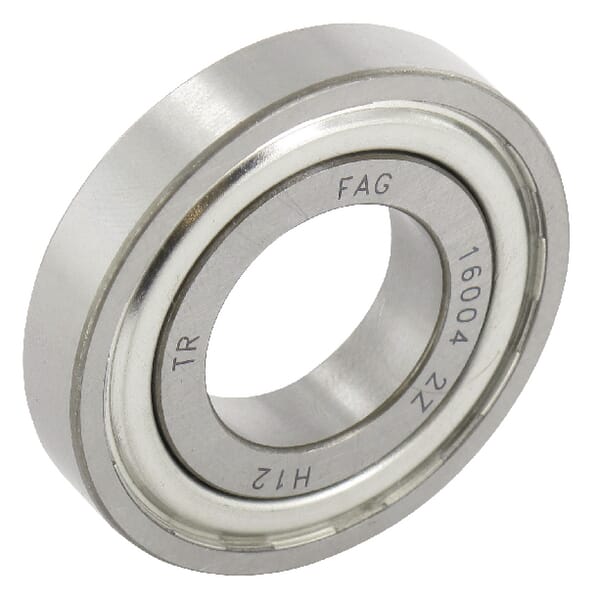

FAG Deep groove ball bearing 20x42x8mm INA/FAG 16004AZZ
