£30.97
excl. VAT
£37.16 incl. VAT
£37.16
incl. VAT
£30.97 excl. VAT
In stock
Expected to ship on Friday 18 September

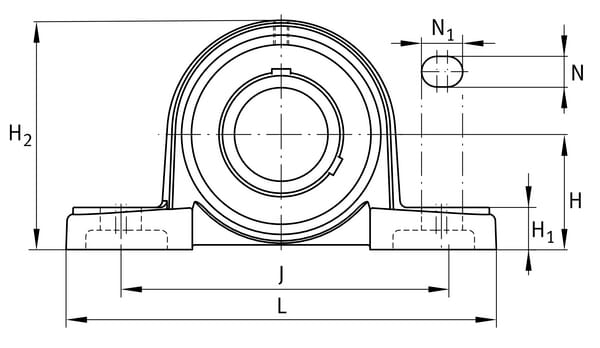

Product details
| Basic radial load dynamic | 34500 N |
|---|---|
| Basic radial load static | 20400 N |
| Bearing inner ring width | 49.2 mm |
| Bearing inside diameter | 45 mm |
| Grease nipple thread diameter | M6 |
| Housing type | Pillow block |
| Housing width | 54 mm |
| Includes | Bearing block, Bearing, Grease nipple |
| Long description | These standing ball bearing units are pre-assembled and pre-lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment. |
| Manufacturer | Schaeffler |
| Mounting centre hole width | 17 mm |
| Mounting holes distance | 146 mm |
| Mounting holes length | 21 mm |
| Original number equivalent | UCP209-J7 |
| Product details | Inner bearing has extended inner ring on both sides with 2 adjusting screws, Regreasable, Self-aligning ball bearing, Wide inner ring ball bearing |
| Pros | Highly suitable for limited installation spaces, Assembled, ready for use, Pre-lubricated |
| Shaft vertical distance | 54 mm |
| Total height | 106 mm |
| Total length | 190 mm |
| Unit | Each |
Logistics
| EAN | 4047643247597 |
|---|---|
| Unit of measure | EA |
| Weight | 2236 g |
| Dimensions | 210 × 115 × 70 mm |
| Dangerous goods | No |
You might also like
BPA000380685

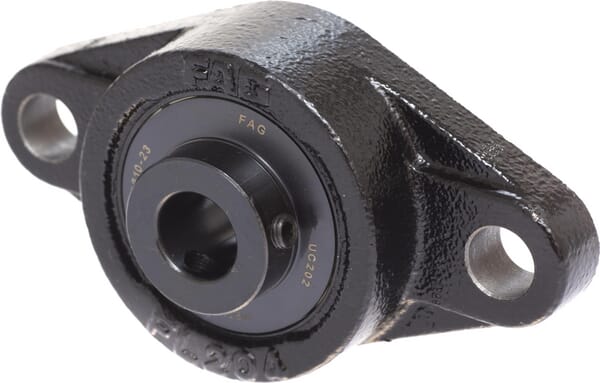

FAG Housing unit UCFL202J7
