£29.50
excl. VAT
£35.40 incl. VAT
£35.40
incl. VAT
£29.50 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Bearing design with considerable shaft deflection or alignment errors, Conveyor belts, Plants for steel production |
|---|---|
| Basic radial load dynamic | 11800 N |
| Basic radial load static | 2750 N |
| Bearing model type | Self-aligning ball bearings |
| Bore type | Cylindrical |
| BWidth | 16 mm |
| dInside diameter | 17 mm |
| DOutside diameter | 40 mm |
| Inner ring shape | Cylindrical |
| Inside diameter of outer ring | 33.86 mm |
| Manufacturer | Schaeffler |
| Material | Steel |
| Max rotation speed | 19100 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | 2203-TVH-C3 |
| Outside diameter of inner ring | 23.9 mm |
| Properties | Self-adjusting roller bearing, Double row |
| Radial internal clearance code | C3 |
| Ref rotation speed | 17400 r/min |
| Rows number | 2 |
| Sealing | Open |
| Unit | Each |
| Weight | 0.085 kg |
Logistics
| EAN | 4012801160247 |
|---|---|
| Unit of measure | EA |
| Weight | 95 g |
| Dimensions | 46 × 46 × 20 mm |
| Dangerous goods | No |
You might also like
BPA000072154

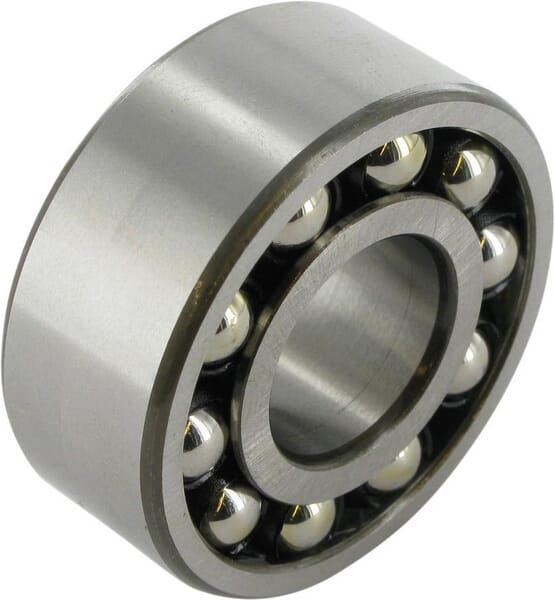

FAG Self-aligning ball bearing 17x40x16mm INA/FAG 2203TVH
