£40.73
excl. VAT
£48.88 incl. VAT
£48.88
incl. VAT
£40.73 excl. VAT
In stock
Expected to ship on Friday 18 September
About this product

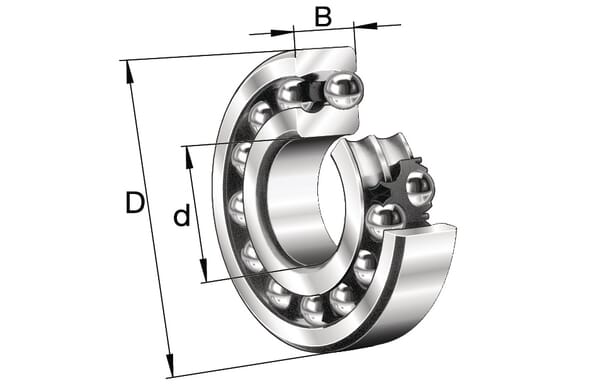

A FAG self-aligning ball bearing, series 2200, with a 35 mm inner diameter, 72 mm outer diameter, and 23 mm width, supplied as a single piece. The bearing is a double-row self-adjusting design with cylindrical bore and open sealing, manufactured from steel. It is rated for a basic dynamic radial load of 33 000 N and a static radial load of 9 000 N, with a reference speed of 9 500 r/min and a maximum speed of 9 800 r/min. The bearing operates within a temperature range of -30 °C to 120 °C and is suitable for applications involving considerable shaft deflection or alignment errors, including conveyor belts and steel production plants. The bearing weighs approximately 390 g and carries the EAN 4012801160384.
Product details
| Application range | Bearing design with considerable shaft deflection or alignment errors, Conveyor belts, Plants for steel production |
|---|---|
| Basic radial load dynamic | 33000 N |
| Basic radial load static | 9000 N |
| Bearing model type | Self-aligning ball bearings |
| Bore type | Cylindrical |
| BWidth | 23 mm |
| dInside diameter | 35 mm |
| DOutside diameter | 72 mm |
| Inner ring shape | Cylindrical |
| Inside diameter of outer ring | 62.44 mm |
| Manufacturer | Schaeffler |
| Material | Steel |
| Max rotation speed | 9800 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | 2207-TVH |
| Outside diameter of inner ring | 45.7 mm |
| Properties | Self-adjusting roller bearing, Double row |
| Radial internal clearance code | CN |
| Ref rotation speed | 9500 r/min |
| Rows number | 2 |
| Sealing | Open |
| Unit | Each |
| Weight | 0.389 kg |
Logistics
| EAN | 4012801160384 |
|---|---|
| Unit of measure | EA |
| Weight | 390 g |
| Dimensions | 50 × 50 × 9 mm |
| Dangerous goods | No |
You might also like
BPA000072225

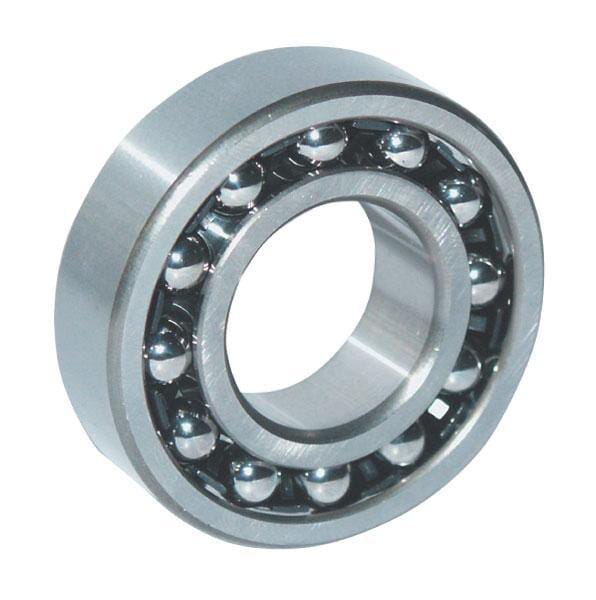

FAG Self-aligning ball bearing 35x72x23mm INA/FAG 2207TVHC3
