£64.83
excl. VAT
£77.80 incl. VAT
£77.80
incl. VAT
£64.83 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Bearing design with considerable shaft deflection or alignment errors, Conveyor belts, Plants for steel production |
|---|---|
| Basic radial load dynamic | 30000 N |
| Basic radial load static | 9700 N |

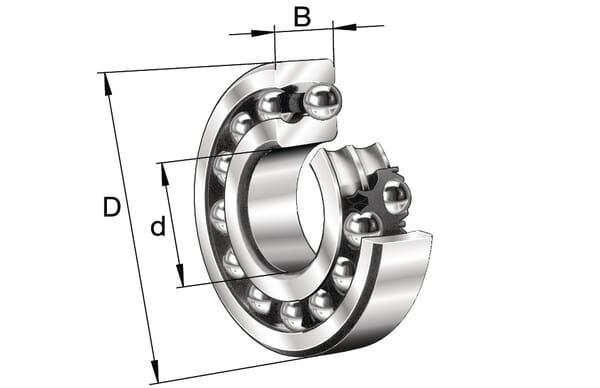

| Bearing model type | Self-aligning ball bearings |
| Bore type | Tapered |
| BWidth | 23 mm |
| Consists of | Self-adjusting roller bearing, Expansion bush not included |
| dInside diameter | 40 mm |
| DOutside diameter | 90 mm |
| Inner ring shape | Tapered |
| Inside diameter of outer ring | 74.71 mm |
| Manufacturer | Schaeffler |
| Material | Steel |
| Max rotation speed | 8600 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | 1308-K-TVH-C3 |
| Outside diameter of inner ring | 57.75 mm |
| Properties | Self-adjusting roller bearing, Double row, With conical inner ring |
| Radial internal clearance code | C3 |
| Ref rotation speed | 8500 r/min |
| Rows number | 2 |
| Sealing | Open |
| Unit | Each |
| Weight | 0.704 kg |
Logistics
| EAN | 4012801159364 |
|---|---|
| Unit of measure | EA |
| Weight | 698 g |
| Dimensions | 106 × 98 × 39 mm |
| Dangerous goods | No |
