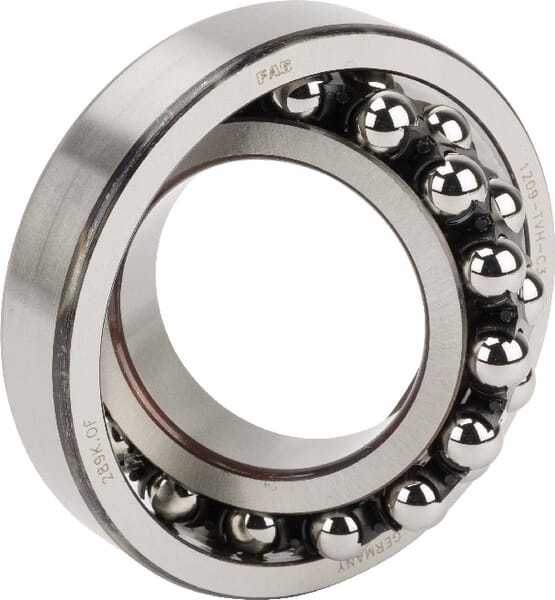

Product details
| Application range | Bearing design with considerable shaft deflection or alignment errors, Conveyor belts, Plants for steel production |
|---|---|
| Basic radial load dynamic | 22000 N |
| Basic radial load static | 7300 N |
| Bearing model type | Self-aligning ball bearings |
| Bore type | Cylindrical |
| BWidth | 19 mm |
| dInside diameter | 45 mm |
| DOutside diameter | 85 mm |
| Inner ring shape | Cylindrical |
| Inside diameter of outer ring | 72.11 mm |
| Manufacturer | Schaeffler |
| Material | Steel |
| Max rotation speed | 9300 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | 1209-TVH-C3 |
| Outside diameter of inner ring | 57.7 mm |
| Properties | Self-adjusting roller bearing, Double row |
| Radial internal clearance code | C3 |
| Ref rotation speed | 8200 r/min |
| Rows number | 2 |
| Sealing | Open |
| Unit | Each |
| Weight | 0.046 kg |
Logistics
| EAN | 4012801159036 |
|---|---|
| Unit of measure | EA |
| Weight | 463 g |
| Dimensions | 95 × 95 × 20 mm |
| Dangerous goods | No |
You might also like
BPA000038286
FAG Self-aligning ball bearing 45x85x19mm INA/FAG 1209TVH
£52.03 excl.
£62.44 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000155573
FAG Deep groove ball bearing 70x125x24mm INA/FAG 62142RS
£43.93 excl.
£52.72 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000323638

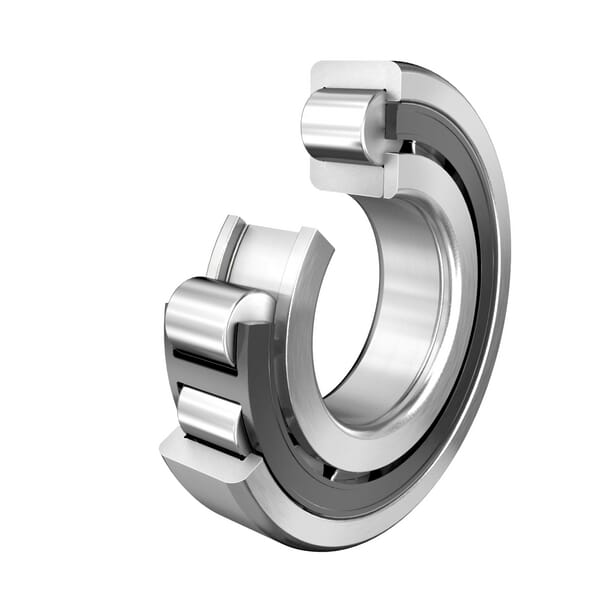

FAG Cylindrical roller bearing NUP314EXLTVP2
£330.56 excl.
£396.67 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000380813

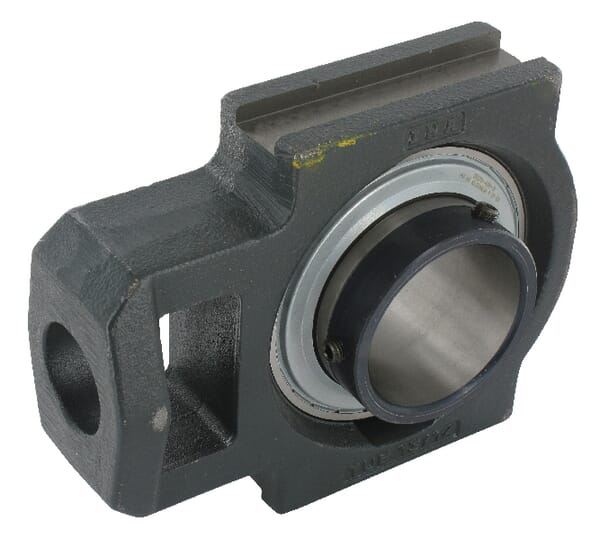

FAG Housing unit UCT UCT209
