Product details
| Application range | Bearing design with considerable shaft deflection or alignment errors, Conveyor belts, Plants for steel production |
|---|---|
| Basic radial load dynamic | 22900 N |
| Basic radial load static | 8100 N |

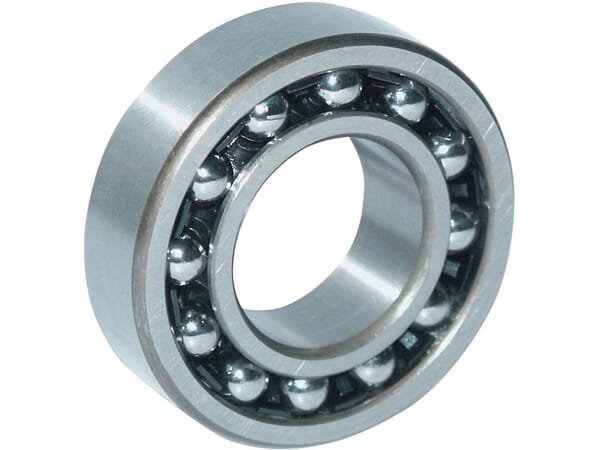

| Bearing model type | Self-aligning ball bearings |
| Bore type | Tapered |

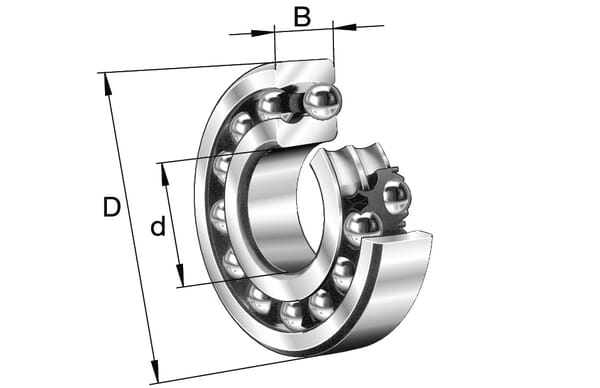

| BWidth | 20 mm |
| Consists of | Self-adjusting roller bearing, Expansion bush not included |
| dInside diameter | 50 mm |
| DOutside diameter | 90 mm |
| Inner ring shape | Tapered |
| Inside diameter of outer ring | 77.13 mm |
| Manufacturer | Schaeffler |
| Material | Steel |
| Max rotation speed | 8700 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | 1210-K-TVH-C3 |
| Outside diameter of inner ring | 62.7 mm |
| Properties | Self-adjusting roller bearing, Double row, With conical inner ring |
| Radial internal clearance code | C3 |
| Ref rotation speed | 8500 r/min |
| Rows number | 2 |
| Sealing | Open |
| Suitable for machine/vehicle brand | Claas |
| Unit | Each |
| Weight | 0.506 kg |
Logistics
| EAN | 4012801159043 |
|---|---|
| Unit of measure | EA |
| Weight | 518 g |
| Dimensions | 95 × 93 × 23 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000093075
FAG Angular contact ball bearing 55x120x49.2mm INA/FAG 3311BDXL2HRSTVH
£256.77 excl.
£308.12 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000085237
FAG Tapered roller bearing 65x140x36mm INA/FAG 31313A
£192.89 excl.
£231.47 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000067634
FAG Spherical roller bearing 80x170x39mm 21316E1XLC3
£353.90 excl.
£424.68 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000285463
FAG Adaptor sleeve with nut 90x140x76mm H3120FAG
£177.25 excl.
£212.70 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000285172
FAG Adaptor sleeve with nut 85x125x55mm H219
£141.22 excl.
£169.46 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000326219
FAG Cylindrical roller bearing NU1007XLM1
£127.66 excl.
£153.19 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
Free shipping
BPA000204867
Tente Caster wheel swivel, polyamide wheel: diameter 125x50mm, plate fitting: 135x110mm Load: 700kg, 9680TOP125P63
£121.03 excl.
£145.24 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000159319
Kramp Hexagon flange bolt DIN6921 M6x25 steel zinc-plated 8.8 6921T625
£0.28 excl.
£0.34 incl.
Backorder available
Usually ships within 3–8 weeks

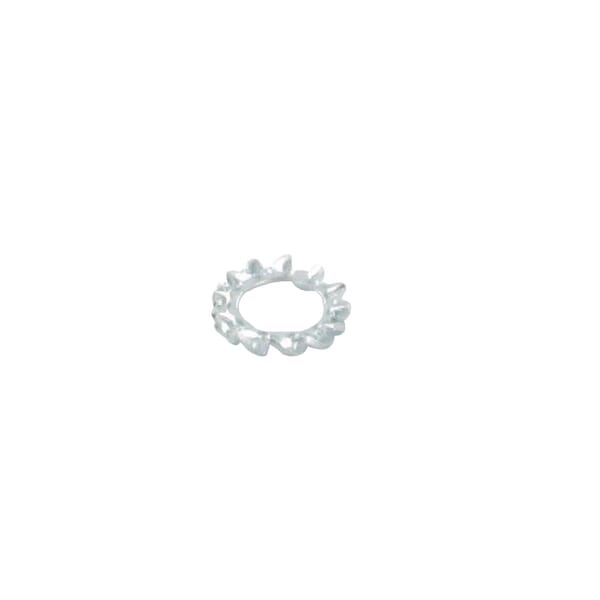

BPA000157724
