About this product

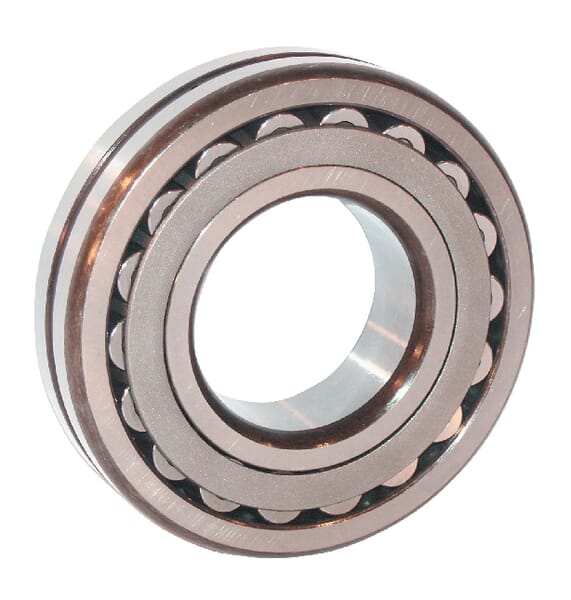

A FAG spherical roller bearing (model 22206-E1-XL-K-C3) with tapered inner ring, measuring 30 mm bore, 62 mm outside diameter, and 20 mm width. This is a two-row bearing supplied as a single unit. The bearing is rated for a dynamic radial load of 64 kN and a static radial load of 57 kN, with a maximum rotation speed of 12,500 r/min at reference speed of 7,800 r/min. The radial internal clearance code is C3. Operating temperature range is −30 °C to +200 °C. The bearing accommodates heavy radial loads and skewed axle positions, making it suitable for pumps, ventilators, cranes, and conveyor belt applications. The tapered bore design allows for radial and axial load distribution across two rows. Note that an expansion bush is ordered separately. The bearing weighs approximately 273 g and carries EAN 4026677870384.
Product details
| Basic radial load dynamic | 64000 N |
|---|---|
| Basic radial load static | 57000 N |
| Bearing model type | Spherical roller bearings |
| Bore type | Tapered |
| CWidth | 20 mm |
| DOutside diameter | 62 mm |
| Extra info | Expansion bush ordered separately |
| FwInside diameter | 30 mm |
| Includes | Spherical roller bearing with conical inner ring. |
| Inner ring shape | Tapered |
| Manufacturer | Schaeffler |
| Max rotation speed | 12500 r/min |
| Max working temperature | 200 °C |
| Min working temperature | -30 °C |
| Original number equivalent | 22206-E1-XL-K-C3 |
| Product details | Heavy radial loads and skewed positions of the axle, Pumps and ventilators, Cranes, Conveyor belts |
| Radial internal clearance code | C3 |
| Ref rotation speed | 7800 r/min |
| Rows number | 2 |
| Stub diameter | 3.2 mm |
| Unit | Each |
| Weight | 0.265 kg |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 4026677870384 |
|---|---|
| Unit of measure | EA |
| Weight | 273 g |
| Dimensions | 70 × 70 × 25 mm |
| Dangerous goods | No |
