About this product

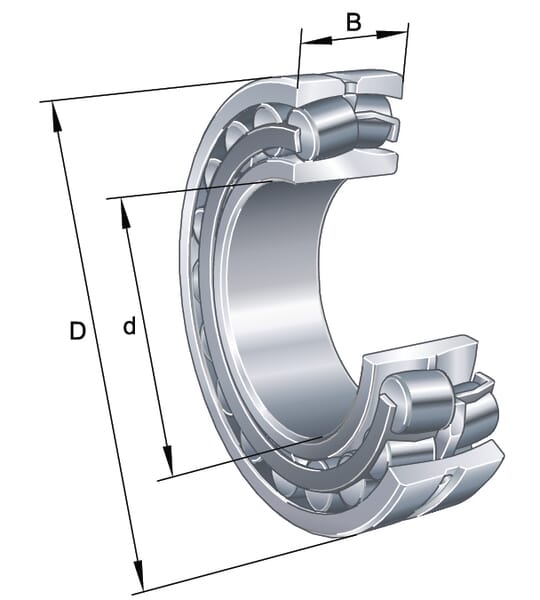

A FAG series 22308 spherical roller bearing with cylindrical inner ring, measuring 40 mm bore diameter, 90 mm outside diameter, and 33 mm width. Sold as a single piece. The bearing is a two-row design rated for dynamic radial loads up to 156 kN and static radial loads up to 149 kN, with a maximum rotation speed of 7600 r/min at reference speed of 5500 r/min. The bearing operates across a temperature range from −30 °C to 200 °C and features an open sealing arrangement. Radial internal clearance is C3 grade. The bearing is suited to applications including heavy radial loads and axial skews in pumps, fans, cranes, and conveyors. Weight is 1.018 kg; dimensions are 95 mm length, 95 mm width, and 35 mm height. EAN 4026677806635.
Product details
| Basic radial load dynamic | 156000 N |
|---|---|
| Basic radial load static | 149000 N |
| Bearing model type | Spherical roller bearings |
| Bore type | Cylindrical |
| BWidth | 33 mm |
| dInside diameter | 40 mm |
| DOutside diameter | 90 mm |
| Includes | Spherical roller bearing with cylindrical inner ring |
| Inner ring shape | Cylindrical |
| Manufacturer | Schaeffler |
| Max rotation speed | 7600 r/min |
| Max working temperature | 200 °C |
| Min working temperature | -30 °C |
| Original number equivalent | 22308-E1-C3 |
| Product details | Heavy radial loads and axial skews, Pumps and fans, Cranes, Conveyors |
| Radial internal clearance code | C3 |
| Ref rotation speed | 5500 r/min |
| Rows number | 2 |
| Sealing | Open |
| Stub diameter | 3.2 mm |
| Unit | Each |
| Weight | 1.018 kg |
Logistics
| EAN | 4026677806635 |
|---|---|
| Unit of measure | EA |
| Weight | 1044 g |
| Dimensions | 95 × 95 × 35 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000072798
FAG Spherical roller bearing 40x90x33mm INA/FAG 22308E1
£117.19 excl.
£140.63 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000093131

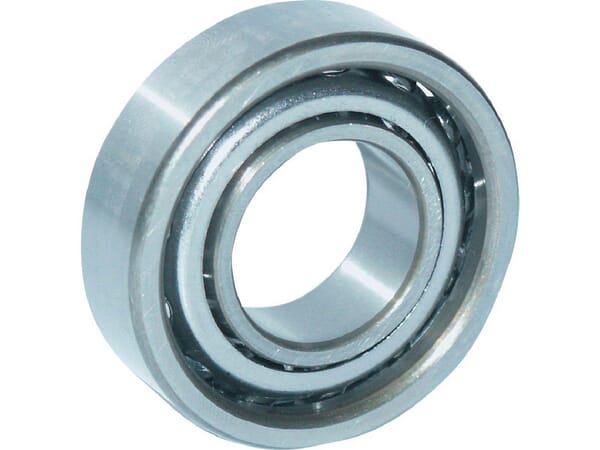

FAG Angular contact ball bearing 3315C3
£613.04 excl.
£735.65 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000093075
FAG Angular contact ball bearing 55x120x49.2mm INA/FAG 3311BDXL2HRSTVH
£256.77 excl.
£308.12 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000072840
FAG Spherical roller bearing 60x130x46mm INA/FAG 22312E1XLC3
£256.06 excl.
£307.27 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000088815

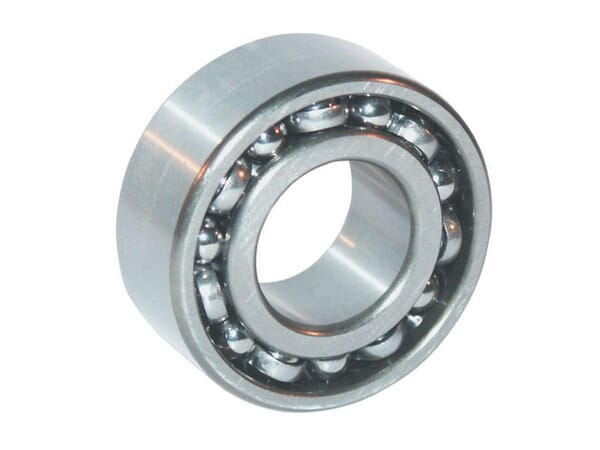

FAG Angular contact ball bearing 30x62x23.8mm INA/FAG 3206BTVHC3
