£176.49
excl. VAT
£211.79 incl. VAT
£211.79
incl. VAT
£176.49 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 24 September
Product details

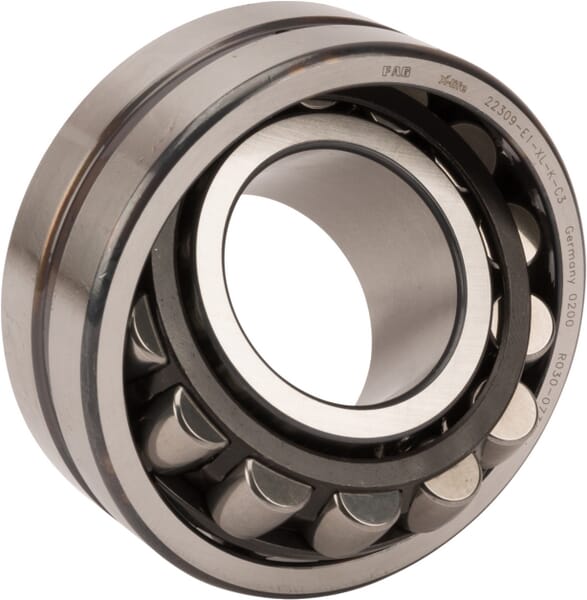

| Basic radial load dynamic | 187000 N |
|---|---|
| Basic radial load static | 183000 N |
| Bearing model type | Spherical roller bearings |
| Bore type | Tapered |
| CWidth | 36 mm |
| DOutside diameter | 100 mm |
| Extra info | Expansion bush ordered separately |
| FwInside diameter | 45 mm |
| Includes | Spherical roller bearing with conical inner ring. |
| Inner ring shape | Tapered |
| Manufacturer | Schaeffler |
| Max rotation speed | 6800 r/min |
| Max working temperature | 200 °C |
| Min working temperature | -30 °C |
| Original number equivalent | 22309-E1-XL-K-C3 |
| Product details | Heavy radial loads and skewed positions of the axle, Pumps and ventilators, Cranes, Conveyor belts |
| Radial internal clearance code | C3 |
| Ref rotation speed | 5000 r/min |
| Rows number | 2 |
| Stub diameter | 3.2 mm |
| Unit | Each |
| Weight | 0.134 kg |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 4026677806765 |
|---|---|
| Unit of measure | EA |
| Weight | 1367 g |
| Dimensions | 105 × 100 × 50 mm |
| Dangerous goods | No |
You might also like
BPA000155529
FAG Deep groove ball bearing 55x100x21mm INA/FAG 6211ZZ
£22.22 excl.
£26.66 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000136105
FAG Thrust ball bearing 51201FAG
£15.88 excl.
£19.06 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000154214
FAG Deep groove ball bearing 17x62x17mm INA/FAG 6403C3FAG
£23.28 excl.
£27.94 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000285287
FAG Adaptor sleeve with nut 70x105x78mm H2316
£97.98 excl.
£117.58 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000325031
FAG Cylindrical roller bearing 30x62x20mm INA/FAG NJ2206EXLTVP2C3
£61.89 excl.
£74.27 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000072637
FAG Spherical roller bearing 100x180x46mm 22220E1XL
£311.67 excl.
£374.00 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000279038

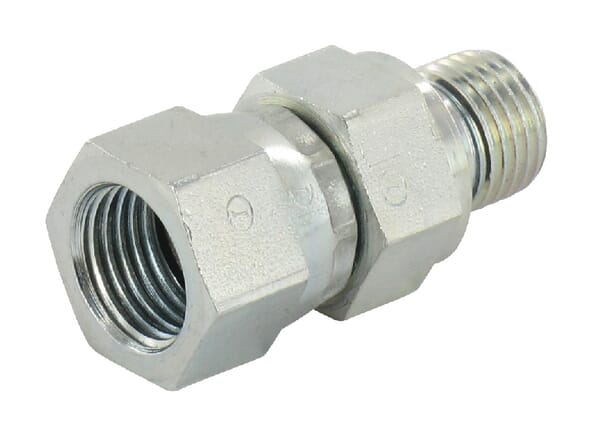

Non Original Adaptor M/F FJ 7/16 - MG1/2CY FMUB0708
