About this product

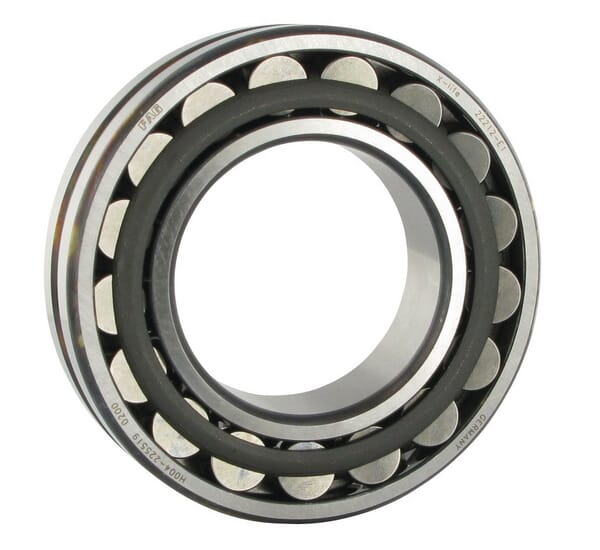

A FAG spherical roller bearing (model 22210-E1) measuring 50 mm bore diameter, 90 mm outside diameter, and 23 mm width. The bearing comprises two rows of spherical rollers on a cylindrical inner ring and is supplied as a single unit in open configuration (unsealed). It is rated for a basic dynamic radial load of 108000 N and a basic static radial load of 106000 N, with a reference rotation speed of 9500 r/min and maximum continuous speed of 9800 r/min. Operating temperature range is −30 °C to 200 °C. The bearing is designed to accommodate heavy radial loads and axial misalignment, with typical applications in pumps, fans, cranes, and conveyor systems. The product weighs 611 g and carries EAN 4026677804839 for identification and re-order matching.
Product details
| Basic radial load dynamic | 108000 N |
|---|---|
| Basic radial load static | 106000 N |
| Bearing model type | Spherical roller bearings |
| Bore type | Cylindrical |

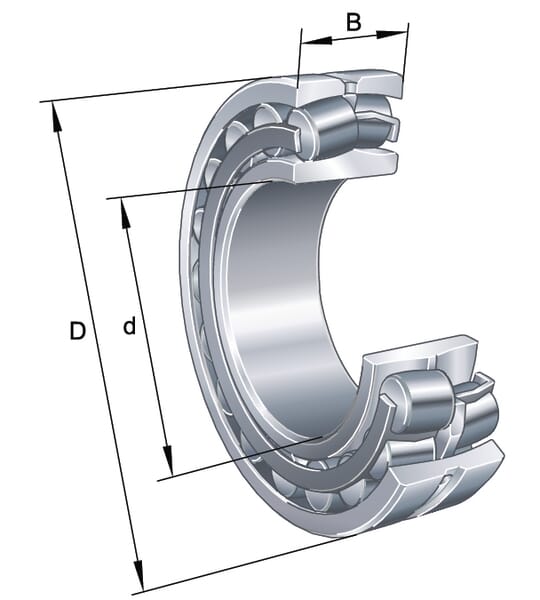

| BWidth | 23 mm |
| dInside diameter | 50 mm |
| DOutside diameter | 90 mm |
| Includes | Spherical roller bearing with cylindrical inner ring |
| Inner ring shape | Cylindrical |
| Max rotation speed | 9800 r/min |
| Max working temperature | 200 °C |
| Min working temperature | -30 °C |
| Original number equivalent | 22210-E1 |
| Product details | Heavy radial loads and axial skews, Pumps and fans, Cranes, Conveyors |
| Radial internal clearance code | CN |
| Ref rotation speed | 9500 r/min |
| Rows number | 2 |
| Sealing | Open |
| Stub diameter | 3.2 mm |
| Unit | Each |
Logistics
| EAN | 4026677804839 |
|---|---|
| Unit of measure | EA |
| Weight | 611 g |
| Dimensions | 95 × 94 × 27 mm |
| Dangerous goods | No |
