About this product
A FAG spherical roller bearing (original number 22210-E1-C3) with a 50 mm cylindrical bore, 90 mm outside diameter, and 23 mm width, supplied as a single piece. The bearing comprises two rows of rollers and is rated for a dynamic radial load of 109 000 N and a static radial load of 107 000 N. It has a radial internal clearance code C3 and an open sealing arrangement. The bearing can operate continuously at speeds up to 9800 r/min (reference speed 5100 r/min) and within a temperature range of −30 °C to +200 °C. It is suitable for applications including heavy radial loads with axial misalignment, such as in pumps, fans, cranes, and conveyors. The bearing weighs approximately 610 g and measures 90 mm × 90 mm × 30 mm. It carries the EAN 4026677804853.
Product details
| Basic radial load dynamic | 109000 N |
|---|---|
| Basic radial load static | 107000 N |
| Bearing model type | Spherical roller bearings |
| Bore type | Cylindrical |

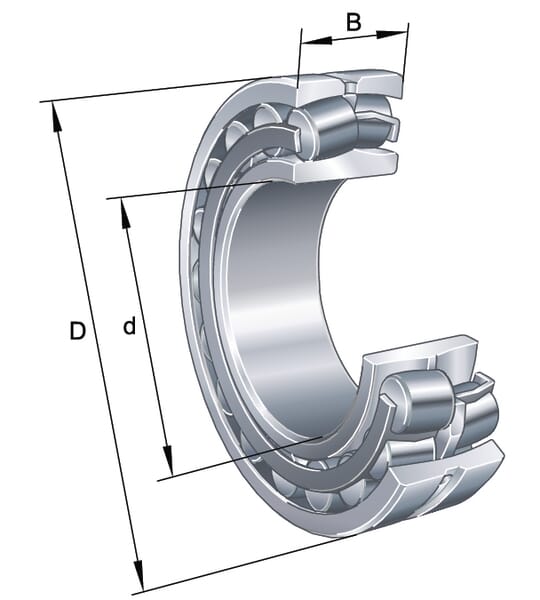

| BWidth | 23 mm |
| dInside diameter | 50 mm |
| DOutside diameter | 90 mm |
| Includes | Spherical roller bearing with cylindrical inner ring |
| Inner ring shape | Cylindrical |
| Manufacturer | Schaeffler |
| Max rotation speed | 9800 r/min |
| Max working temperature | 200 °C |
| Min working temperature | -30 °C |
| Original number equivalent | 22210-E1-C3 |
| Product details | Heavy radial loads and axial skews, Pumps and fans, Cranes, Conveyors |
| Pros | Resistant to high temperatures and therefore long service life |
| Radial internal clearance code | C3 |
| Ref rotation speed | 5100 r/min |
| Rows number | 2 |
| Sealing | Open |
| Stub diameter | 3.2 mm |
| Unit | Each |
| Weight | 0.585 kg |
Logistics
| EAN | 4026677804853 |
|---|---|
| Unit of measure | EA |
| Weight | 610 g |
| Dimensions | 90 × 90 × 30 mm |
| Dangerous goods | No |
