About this product

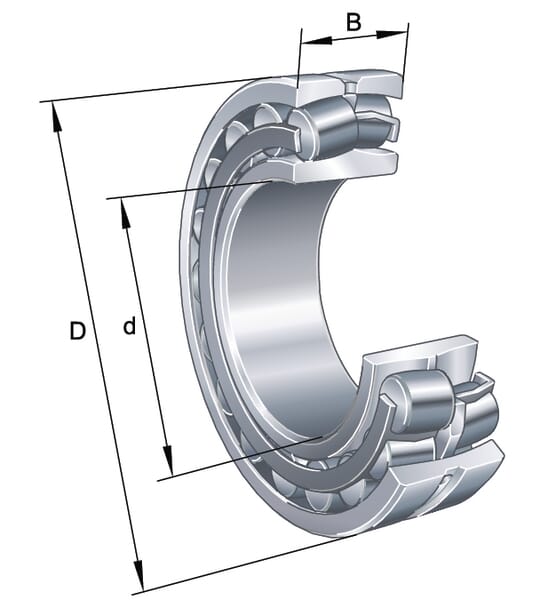

A FAG series 223 spherical roller bearing with a cylindrical inner ring, measuring 75 mm bore diameter, 160 mm outside diameter, and 55 mm width. Sold as a single unit. The bearing is rated for a dynamic radial load of 440,000 N and a static radial load of 450,000 N, with a maximum rotational speed of 4500 r/min and a reference speed of 4300 r/min. The bearing operates across a temperature range from minus 30 °C to plus 200 °C and features an open sealing design with two rows of rolling elements. The radial internal clearance code is CN. The bearing is supplied with a cylindrical bore and is suitable for applications including heavy radial loads with axial skews, pumps, fans, cranes, and conveyors. Weight is approximately 5.3 kg. EAN 4026677808547.
Product details
| Basic radial load dynamic | 440000 N |
|---|---|
| Basic radial load static | 450000 N |
| Bearing model type | Spherical roller bearings |
| Bore type | Cylindrical |
| BWidth | 55 mm |
| dInside diameter | 75 mm |
| DOutside diameter | 160 mm |
| Includes | Spherical roller bearing with cylindrical inner ring |
| Inner ring shape | Cylindrical |
| Max rotation speed | 4500 r/min |
| Max working temperature | 200 °C |
| Min working temperature | -30 °C |
| Original number equivalent | 22315-E1 |
| Product details | Heavy radial loads and axial skews, Pumps and fans, Cranes, Conveyors |
| Radial internal clearance code | CN |
| Ref rotation speed | 4300 r/min |
| Rows number | 2 |
| Sealing | Open |
| Stub diameter | 4.8 mm |
| Unit | Each |
| Weight | 5.286 kg |
Logistics
| EAN | 4026677808547 |
|---|---|
| Unit of measure | EA |
| Weight | 5329 g |
| Dimensions | 169 × 165 × 61 mm |
| Dangerous goods | No |
