FAG Spherical roller bearing 80x140x33mm INA/FAG 22216E1AXLKMC3

About this product

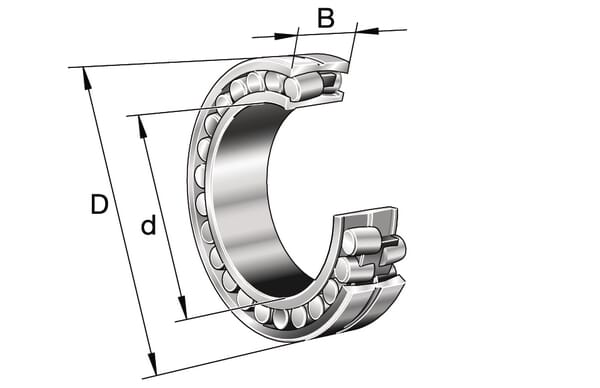

A two-row spherical roller bearing with tapered inner ring, 80 mm bore diameter, 140 mm outside diameter, and 33 mm width. The bearing is designed to handle heavy radial loads and misaligned shaft positions, with a dynamic radial load rating of 250 kN and static radial load rating of 270 kN. Maximum rotation speed is 6200 r/min at reference speed of 3550 r/min, with operating temperature range from −30 °C to 200 °C. The radial internal clearance is coded C3, and stub diameter is 3.2 mm. This bearing is suitable for applications including pumps, ventilators, cranes, and conveyor systems. The expansion bush is ordered separately. Weight is approximately 2.031 kg, with overall package dimensions of 152 × 149 × 38 mm. EAN 4026677850331.
