About this product

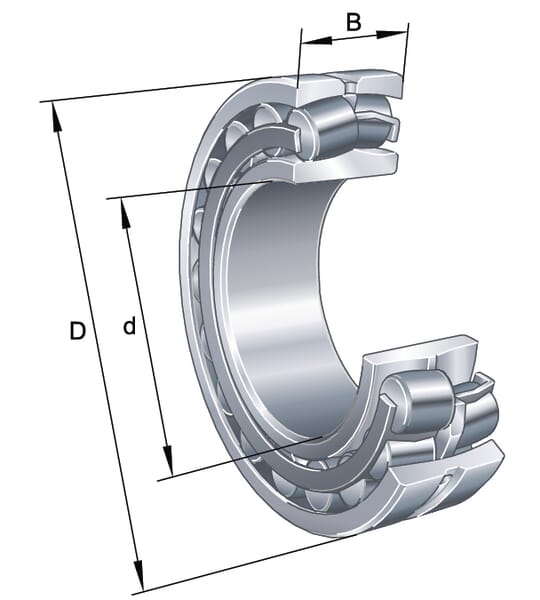

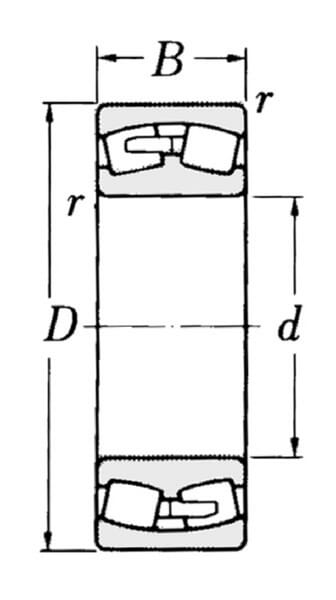

A FAG spherical roller bearing (model 22216-E1-C3) with an 80 mm cylindrical bore, 140 mm outside diameter, and 33 mm width, sold as a single unit. The bearing is a two-row design rated for a dynamic radial load of 250 kN and a static radial load of 270 kN, with a maximum working speed of 5600 r/min and reference speed of 3700 r/min. Operating temperature range is −30 °C to 200 °C. The bearing features an open sealing arrangement and a radial internal clearance code of C3. Manufactured by Schaeffler, it is designed to handle heavy radial loads and axial skews in applications such as pumps, fans, cranes, and conveyors. The bearing weighs approximately 2.065 kg and measures 149 mm length by 147 mm width by 43 mm height when packaged. EAN: 4026677808738.
Product details
| Basic radial load dynamic | 250000 N |
|---|---|
| Basic radial load static | 270000 N |
| Bearing model type | Spherical roller bearings |
| Bore type | Cylindrical |
| BWidth | 33 mm |
| dInside diameter | 80 mm |
| DOutside diameter | 140 mm |
| Includes | Spherical roller bearing with cylindrical inner ring |
| Inner ring shape | Cylindrical |
| Manufacturer | Schaeffler |
| Max rotation speed | 5600 r/min |
| Max working temperature | 200 °C |
| Min working temperature | -30 °C |
| Original number equivalent | 22216-E1-C3 |
| Product details | Heavy radial loads and axial skews, Pumps and fans, Cranes, Conveyors |
| Pros | Resistant to high temperatures and therefore long service life |
| Radial internal clearance code | C3 |
| Ref rotation speed | 3700 r/min |
| Rows number | 2 |
| Sealing | Open |
| Stub diameter | 3.2 mm |
| Unit | Each |
| Weight | 2.065 kg |
Logistics
| EAN | 4026677808738 |
|---|---|
| Unit of measure | EA |
| Weight | 2110 g |
| Dimensions | 149 × 147 × 43 mm |
| Dangerous goods | No |
