£164.20
excl. VAT
£197.04 incl. VAT
£197.04
incl. VAT
£164.20 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Spindles of machines |
|---|---|
| Basic radial load dynamic | 13100 N |
| Basic radial load static | 5600 N |
| Bearing model type | Spindle bearings |
| Benefits | Resistant to high speeds, Longer service life |

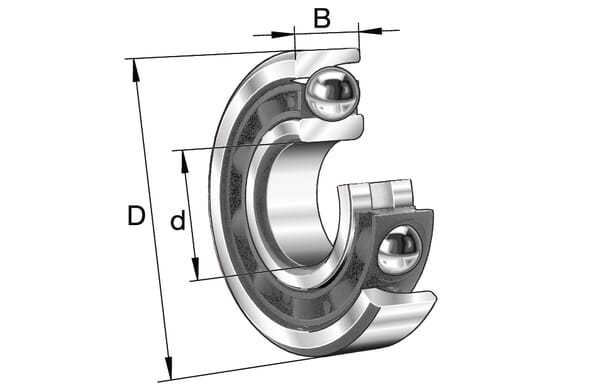

| BWidth | 12 mm |
| Contact angle | 25 ° |
| Details | Particularly suitable for precision guides, High-quality material |
| dInside diameter | 25 mm |
| DOutside diameter | 47 mm |
| Inside diameter of outer ring | 42 mm |
| Limiting speed | 500 r/s |
| Manufacturer | Schaeffler |
| Max working temperature | 100 °C |
| Min working temperature | -30 °C |
| Original number equivalent | B7005-E-T-P4S-UL |
| Properties | Single row angular contact ball bearing, Suitable for high radial and one-sided axial loads, Open design |
| Radial internal clearance code | CN |
| Regreasable | Yes |
| Rows number | 1 |
| Sealing | Open |
| Surface treatment | n/a |
| Unit | Each |
| Weight | 0.07662 kg |
Logistics
| EAN | 4012801167109 |
|---|---|
| Unit of measure | EA |
| Weight | 84 g |
| Dimensions | 70 × 70 × 20 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000235585
FAG Spindle bearing 25x47x12mm INA/FAG B7005CTP4SUM
£216.49 excl.
£259.79 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000088796
FAG Angular contact ball bearing 25x52x20.6mm INA/FAG 3205BDXL2ZTVHC3
£40.35 excl.
£48.42 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000152588
FAG Deep groove ball bearing 6x17x6mm INA/FAG 606ZZ
£7.54 excl.
£9.05 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000324970
FAG Cylindrical roller bearing 35x72x17mm INA/FAG NJ207ETVP2C3
£59.06 excl.
£70.87 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000153554
FAG Deep groove ball bearing 20x52x15mm INA/FAG 6304TBP6C3
£42.30 excl.
£50.76 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000337139
FAG Angular contact ball bearing 45x100x25mm INA/FAG QJ309MPA
£140.51 excl.
£168.61 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
Free shipping
BPA000011537

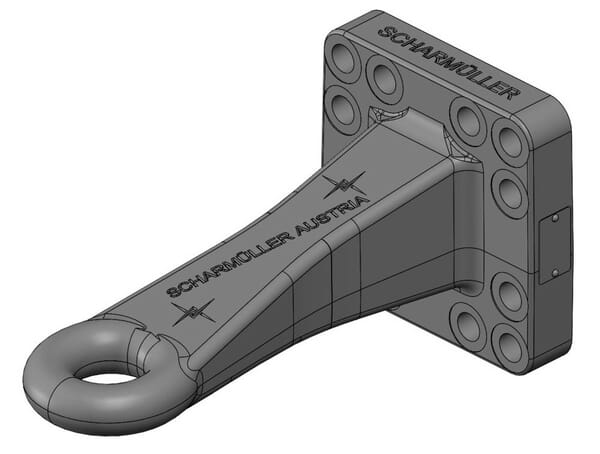

Scharmüller Towing Eye diameter 50mm 3t 160x160 ISO 20019 00665421A02
