£194.21
excl. VAT
£233.05 incl. VAT
£233.05
incl. VAT
£194.21 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Spindles of machines |
|---|---|
| Basic radial load dynamic | 14800 N |
| Basic radial load static | 6100 N |
| Bearing model type | Spindle bearings |
| Benefits | Resistant to high speeds, Longer service life |

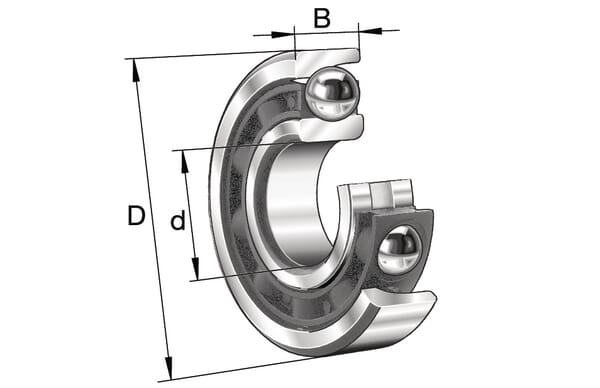

| BWidth | 15 mm |
| Contact angle | 15 ° |
| Details | Particularly suitable for precision guides, High-quality material |
| dInside diameter | 25 mm |
| DOutside diameter | 52 mm |
| Inside diameter of outer ring | 45.5 mm |
| Limiting speed | 466.7 r/s |
| Manufacturer | Schaeffler |
| Max working temperature | 100 °C |
| Min working temperature | -30 °C |
| Original number equivalent | B7205-C-T-P4S-UL |

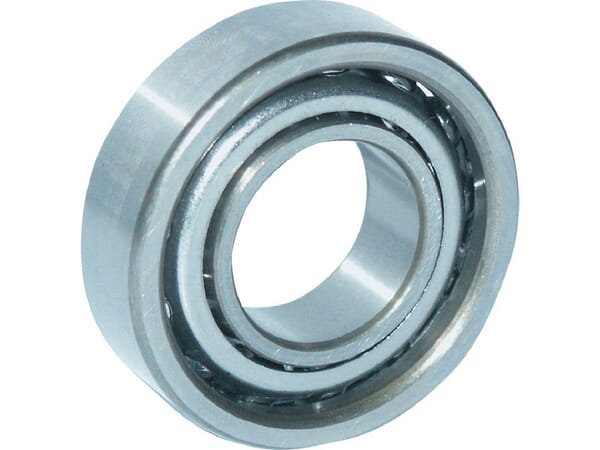

| Properties | Single row angular contact ball bearing, Suitable for high radial and one-sided axial loads, Open design |
| Radial internal clearance code | CN |
| Regreasable | Yes |
| Rows number | 1 |
| Sealing | Open |
| Surface treatment | n/a |
| Unit | Each |
| Weight | 0.132 kg |
Logistics
| EAN | 4012801167994 |
|---|---|
| Unit of measure | EA |
| Weight | 136 g |
| Dimensions | 70 × 68 × 21 mm |
| Dangerous goods | No |
You might also like
BPA000258057
FAG Cover for SES housing EDK520617
£22.61 excl.
£27.13 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000136105
FAG Thrust ball bearing 51201FAG
£15.88 excl.
£19.06 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000153023
FAG Deep groove ball bearing 5x16x5mm INA/FAG 625ZZ
£2.96 excl.
£3.55 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000150381
FAG Deep groove ball bearing 45x75x16mm INA/FAG 6009C3
£11.09 excl.
£13.31 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000153638
FAG Deep groove ball bearing 35x80x21mm INA/FAG 6307RSC3
£22.12 excl.
£26.54 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000087049
FAG Tapered roller bearing 55x120x43x35mm INA/FAG 32311A
£121.37 excl.
£145.64 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000072129
Kramp Oil seal 220x250x15mm type:BB DIN 3760 1x 22025015BBP001
£33.53 excl.
£40.24 incl.
In stock
Expected to ship on Thursday 24 September
BPA000152408
Kramp Coach bolt and nut DIN603 M8x70 steel zinc-plated 4.6 603870
£0.22 excl.
£0.26 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000195612

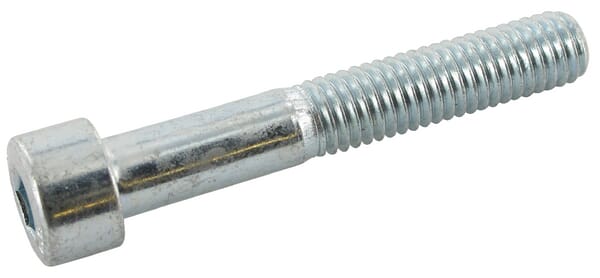

Kramp Hexagon socket head cap screw DIN912 M10x90 steel zinc-plated 10.9 9121090109
