£1,232.86
excl. VAT
£1,479.43 incl. VAT
£1,479.43
incl. VAT
£1,232.86 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | In a closed environment with grease and oil, Wheel shafts, Gearbox, Axial piston pumps, Planetary gear, Rear wheel rockers |
|---|---|
| Basic radial load dynamic | 760000 N |
| Basic radial load static | 990000 N |

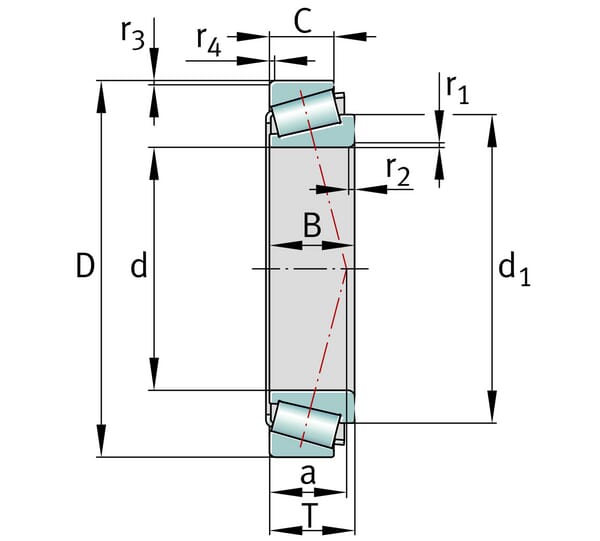

| Bearing model type | Tapered roller bearings |
| Inner ring width | 68 mm |
| Inside diameter | 140 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 3250 r/min |
| Max working temperature | 200 °C |
| Min working temperature | -30 °C |
| Original number equivalent | 32228-XL |
| Outer ring width | 58 mm |
| Outside diameter | 250 mm |
| Properties | Absorb high radial and one-sided loads. |
| Ref rotation speed | 1760 r/min |
| Rows number | 1 |
| Unit | Each |
| Width | 71.75 mm |
Logistics
| EAN | 4054371122058 |
|---|---|
| Unit of measure | EA |
| Weight | 14623 g |
| Dimensions | 275 × 270 × 75 mm |
| Dangerous goods | No |
You might also like
BPA000153540
FAG Deep groove ball bearing 20x52x15mm INA/FAG 63042RS
£6.52 excl.
£7.82 incl.
In stock
Expected to ship on Friday 18 September
BPA000150154
FAG Deep groove ball bearing 30x55x13mm Jtekt/Koyo 6006RS
£9.12 excl.
£10.94 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000093018
FAG Angular contact ball bearing 50x110x44.4mm INA/FAG 3310BDXL2HRSTVHC3
£201.26 excl.
£241.51 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000358295

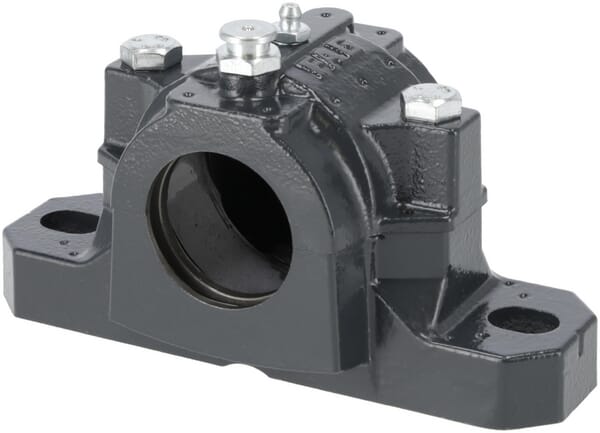

FAG Plummer block split housing SES507606L
