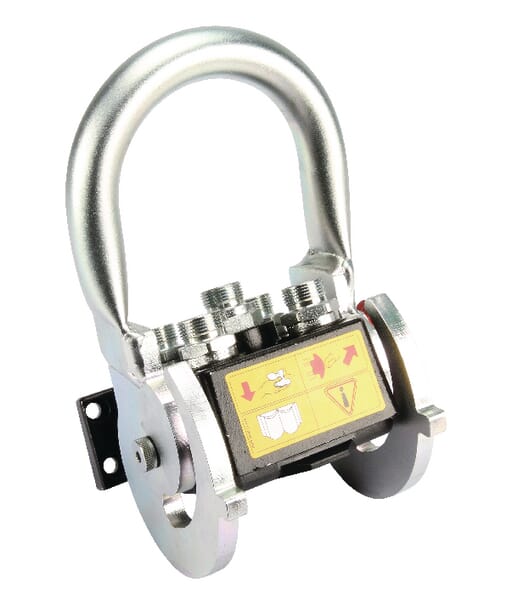

Product details
| Burst pressure | 1000 BAR |
|---|---|
| Category | DN10, DN12 |
| Connectable under pressure | Yes |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, type - male/female | Female |
| Connection 2, diameter | 3/8 Inch, 1/2 Inch |
| Connection no 1 diameter | 22 mm |
| Housing material | Aluminium, Steel |
| Housing surface treatment | Anodised |
| Long description | Application range:, Front loaders, For applications with frequently changing tools, Benefits:, No line mix-ups, Labour-saving, Low leakage, Coupling keeps dirt out of the system, Details: |
| Max. flow rate | 70 l/min |
| Max working temperature | 100 °C |
| Min. working temperature | -25 °C |
| Number of connections | 5 |
| Product details | Flat face, Coupling cavities can be filled with grease, Sealed drainage holes, Safety factor when coupled 1:4, 2P series can be coupled under residual pressure (max. 80 bar), 3P series can be coupled to mobile part under full pressure, 2P mobile part convertible to 3P by changing coupling inserts, Plug insert with additional O-ring groove and O-ring, BG1/2" coupling inserts can be replaced with 3 or 7-pole electrical inserts |
| Pros | No line mix-ups, Lock and unlock with a single action, Labour-saving, Corrosion protection by keeping out moisture, salt and dirt, Low leakage, Easy to clean, No air pockets during coupling |
| Seal material | Nitrile rubber [NBR], Polyurethane |
| Size | 3/8 Inch, 1/2 Inch |

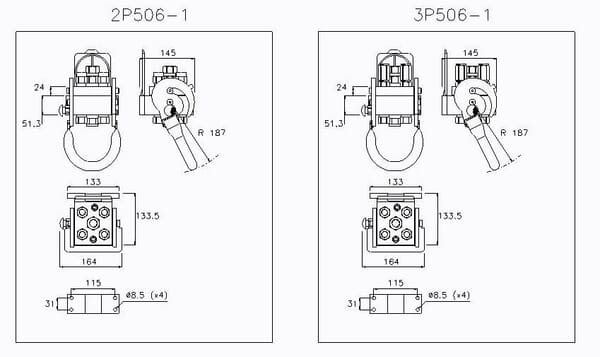

| Type | 2P506 |
| Unit | Each |
| Valve type | Flat |
| Weight | 3609 g |
| Working pressure | 250 BAR |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3966 g |
| Dimensions | 290 × 160 × 145 mm |
| Dangerous goods | No |
You might also like
BPA000269959

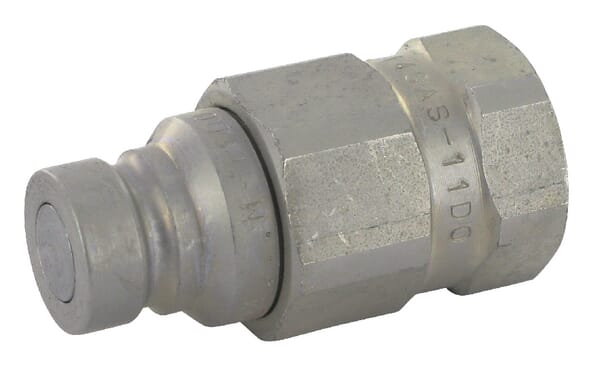

Faster FF Coupling male 1/4-1/4 BSP FFH0414GASM
£12.11 excl.
£14.53 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000367763
Faster Holder for 2P606 male SP6
£251.75 excl.
£302.10 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000367079
Faster Swivel M 1" NPT x F 1-5/16 JIC SZF16MJB16F
£184.78 excl.
£221.74 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000299468

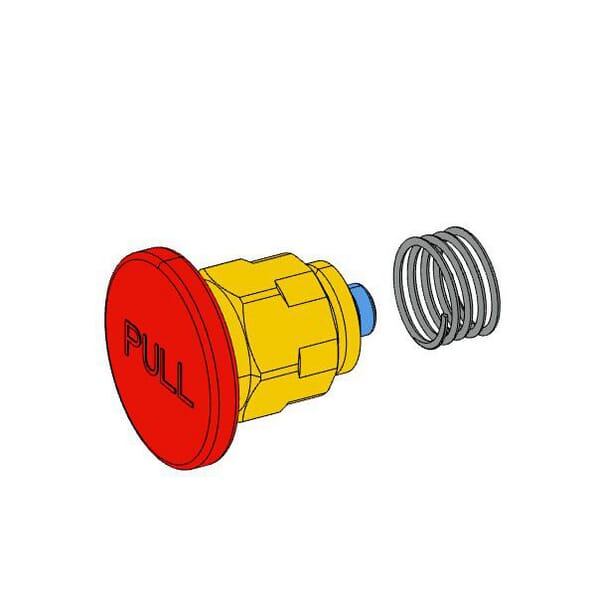

Faster Part safety lock PC206 series KITSP6CSD
£46.27 excl.
£55.52 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000372245
Faster Dust cap Black for female TM2FI12N
£2.84 excl.
£3.41 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000102656

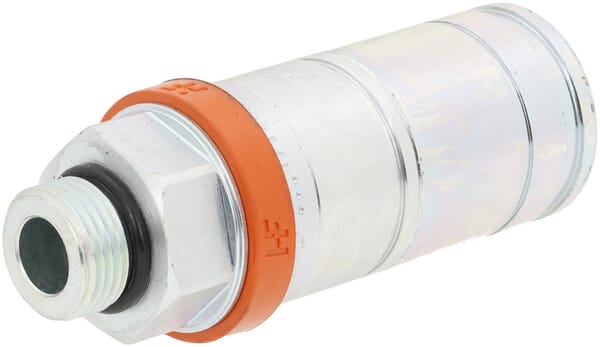

Faster Quick release coupling Female 7/8"UNF-O-ring 3CFHF178UNFF
