£16.93
excl. VAT
£20.32 incl. VAT
£20.32
incl. VAT
£16.93 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Benefits | Small installation space required, Various installation methods, Simple control options |
|---|---|
| Complete with socket | No |
| Consists of | Relays, Without accessories |
| Depth | 29 mm |
| Details | Miniature relays, Plug connection or welded connection, Test key can be locked |
| Drive, polarization | Polarity free |
| Drive, switching attitude | Mono stable |
| Height | 32.8 mm |

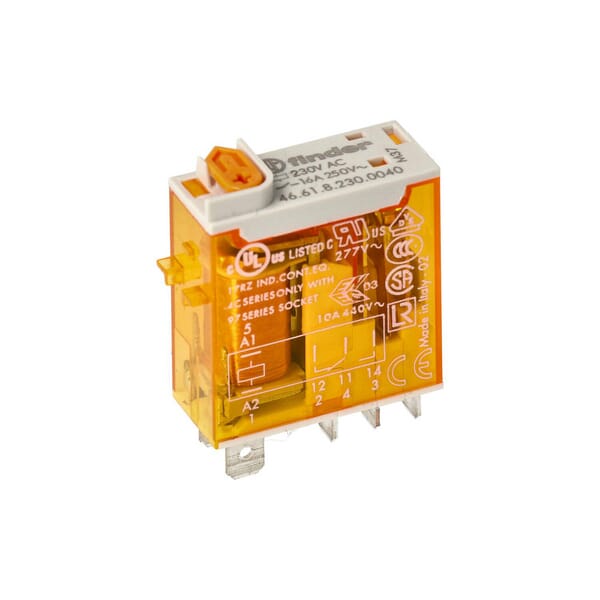

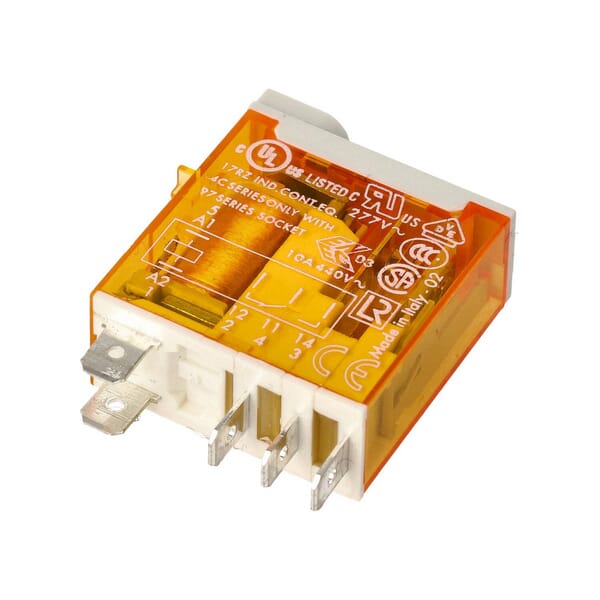

| Manufacturer Product ID | 46.61.8.230.0040 |
| Material contact | Silver nickel (AgNi) |
| Max. starting current | 25 A |
| Nominal current | 16 A |
| Number of contacts as change-over contact | 1 |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 0 |
| Operating voltage AC 50 Hz | 184.0-253.0 V |
| Operating voltage AC 60 Hz | 184.0-253.0 V |
| Rated control supply voltage Us at AC 50HZ | 230.0-230.0 V |
| Rated control supply voltage Us at AC 60HZ | 230.0-230.0 V |
| Relay technology category according to IEC 61810-7 | RT II |
| Type of electric connection | Plug-in connection |
| Type of switch contact | Single contact |
| Unit | Each |
| Voltage type for actuating | AC |
| Voltage type (operating voltage) | AC |
| Width | 12.4 mm |
| With detachable clamps | No |
| With forced-guided contacts | No |
| With LED indication | No |
Logistics
| EAN | 8012823301662 |
|---|---|
| Unit of measure | EA |
| Weight | 19 g |
| Dimensions | 31 × 12 × 39 mm |
| Dangerous goods | No |
You might also like
BPA000109545
Finder PCB/Plug-in rel.5mm.pinning 1CO 10A/24V DC SENS/Agni 405190240000
£6.52 excl.
£7.82 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000065447

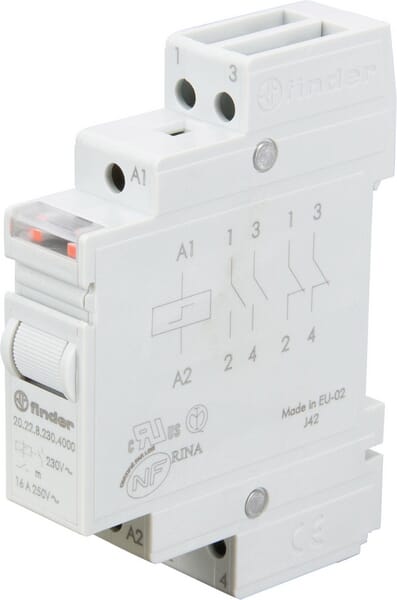

Finder Step relay 2NO 16A 230VAC 202282304000
£40.36 excl.
£48.43 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000027550

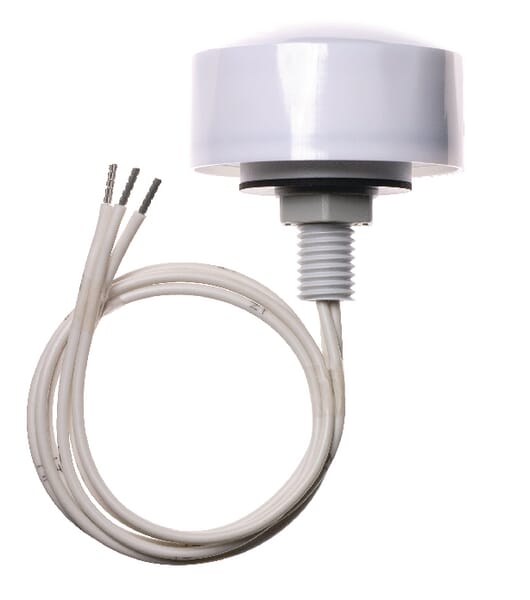

Finder Twilight switch 106182300000
£71.11 excl.
£85.33 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000192495

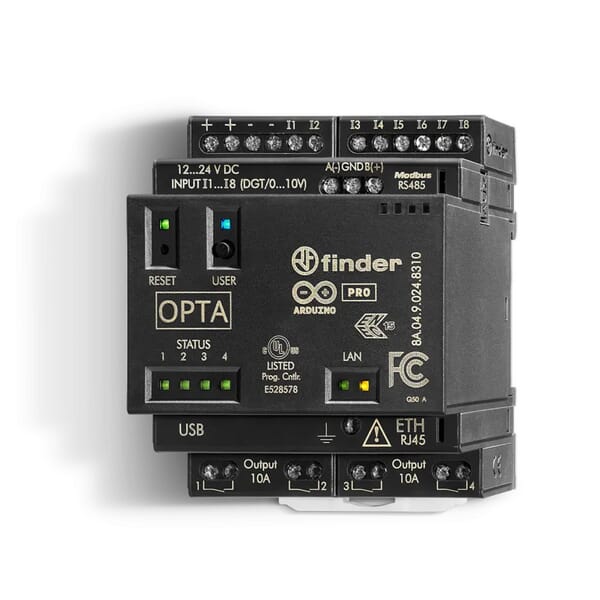

Finder Programmable Logic relay 8 inputs/4 outputs 12..24V DC 8A0490248320
£455.76 excl.
£546.91 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000122313

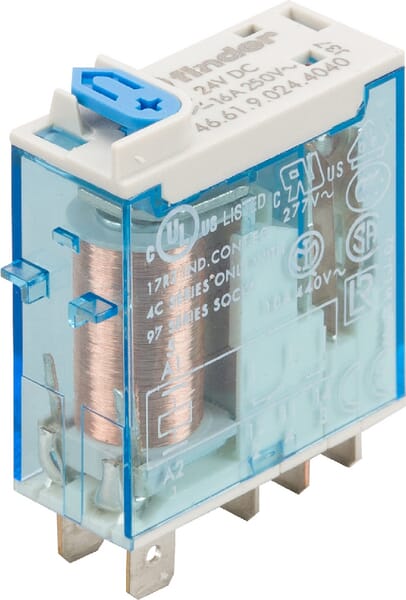

Finder Relay 1CO 16A 24VDC 466190244040
£11.71 excl.
£14.05 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000021334

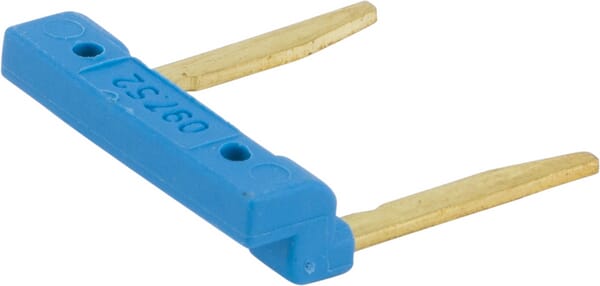

Finder Retaining bracket 09752
