About this product
A Finder modular contactor relay (MPN 222280244000) with two normally open (NO) contacts, rated at 20 A and designed for 24 V AC control at 50–60 Hz. The relay is constructed with AgSnO2 contact material and operates mechanically with a 24 V AC supply voltage. It mounts directly to standard DIN rail and has a built-in depth of 58.4 mm, occupying 1 mm of modular width; overall dimensions are 92 mm length, 70 mm width, and 25 mm height. Maximum switching capacity is 12 A at cos phi = 0.6; the device can handle incandescent lamp loads up to 1000 W and fluorescent lamp loads up to 400 VA depending on circuit configuration. The unit weighs 113 g and carries EAN 8012823119021.
Product details
| Built-in depth | 58.4 mm |
|---|---|
| Control voltage 1 | 24.0-24.0 V |
| Frequency control voltage 1 | 50.0-60.0 Hz |
| Function | Mechanical |
| Manufacturer Product ID | 22.22.8.024.4000 |
| Max. incandescent lamp load | 1000 W |
| Max. load fluorescent lamp | 400 VA |
| Max. load fluorescent lamp (Duo circuit) | 400 VA |
| Max. load fluorescent lamp (parallel compensated) | 360 VA |
| Max. switching current (cos phi = 0.6) | 12 A |
| Mounting method | DIN rail |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 2 |
| Rated current | 20 A |
| Supply voltage | 24.0-24.0 V |
| Type of control voltage 1 | AC |
| Unit | Each |
| Voltage type of supply voltage | AC |
| Width in number of modular spacings (mm) | 1 mm |
Logistics
| EAN | 8012823119021 |
|---|---|
| Unit of measure | EA |
| Weight | 113 g |
| Dimensions | 92 × 70 × 25 mm |
| Dangerous goods | No |
You might also like
BPA000124986
Finder Rel.interface Mod. screw terminal 1CO 10A/12V DC/Agni/LED/diode 493190120050
£24.51 excl.
£29.41 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000058775
Finder Motion detector 1M 10 A 230 V 183182300000
£121.85 excl.
£146.22 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000065416
Finder Mod.step rel.17,4mm.1NO 16A/12V DC /AgSnO2 202190124000
£28.92 excl.
£34.70 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000122313
Finder Relay 1CO 16A 24VDC 466190244040
£11.71 excl.
£14.05 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000179906
Finder Energy meter, 3 phase 80A LCD 2S0+IR+NFC 7M3884000112
£374.44 excl.
£449.33 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000202807
Finder Connecting socket with time fctn 93680024
£56.50 excl.
£67.80 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000246279

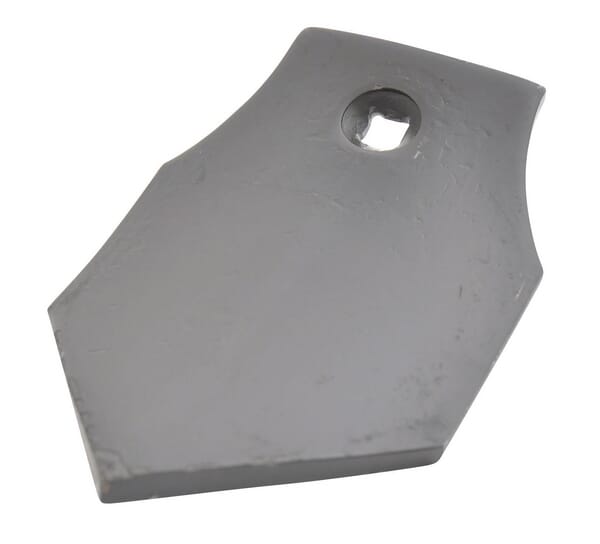

Non Original Cultivator point 135x10mm, hardened, flat, 1 hole, suitable for Razol CP486053
£24.75 excl.
£29.70 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000230163

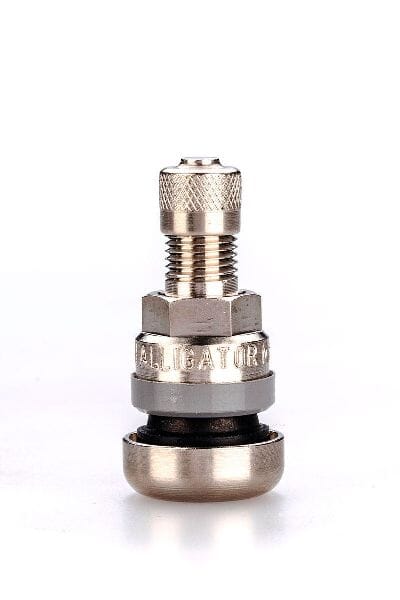

Rema Tip Top Tubeless Valve 31Ms, Alligator AL512512
£11.79 excl.
£14.15 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000403946
SKF Bearing SKF Foodline YAR2042LPWZM
£124.30 excl.
£149.16 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000268469

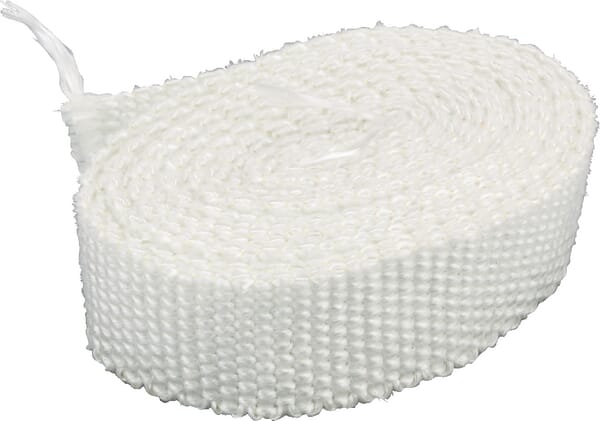

Non Original Glas fiber band, 3 x 50 mm EX9350500
