£8.10
excl. VAT
£9.72 incl. VAT
£9.72
incl. VAT
£8.10 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Complete with socket | No |
|---|---|
| Depth | 29 mm |
| Drive, polarization | Polarity free |
| Drive, switching attitude | Mono stable |
| Height | 25 mm |
| Manufacturer Product ID | 40.31.8.012.0000 |
| Material contact | Silver nickel (AgNi) |
| Max. starting current | 20 A |
| Nominal current | 10 A |
| Number of contacts as change-over contact | 1 |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 0 |
| Operating voltage AC 50 Hz | 9.6-13.2 V |
| Operating voltage AC 60 Hz | 9.6-13.2 V |

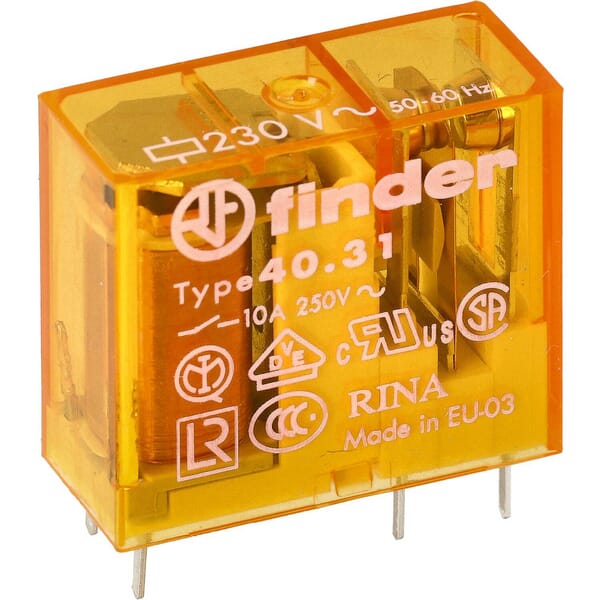

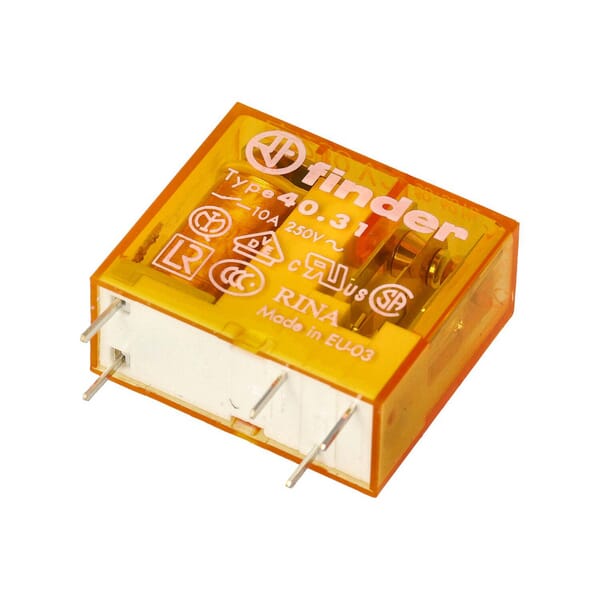

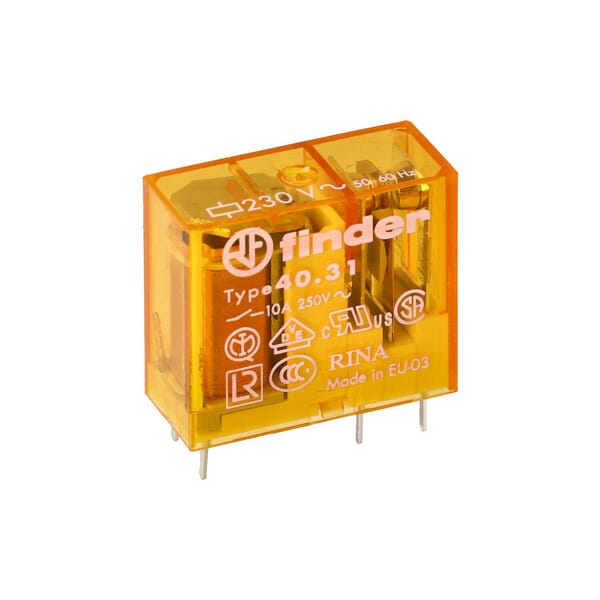

| Product details | Finder relays Series 40 with the following features (according to Type):, Plug-in mounting on (DIN rail) sockets or on PCB's., Pin length 5.2 mm (for socket mount) or 3.5 mm (for PCB mount), 1 or 2 Change over contacts., AC or DC coils (low current consumption) |
| Rated control supply voltage Us at AC 50HZ | 12.0-12.0 V |
| Rated control supply voltage Us at AC 60HZ | 12.0-12.0 V |
| Relay technology category according to IEC 61810-7 | RT II |
| Type of electric connection | PCB connection |
| Type of switch contact | Single contact |
| Unit | Each |
| Voltage type for actuating | AC |
| Voltage type (operating voltage) | AC |
| Width | 12.4 mm |
| With detachable clamps | No |
| With forced-guided contacts | No |
| With LED indication | No |
Logistics
| EAN | 8012823238968 |
|---|---|
| Unit of measure | EA |
| Weight | 16 g |
| Dimensions | 33 × 30 × 14 mm |
| Dangerous goods | No |
You might also like
BPA000100715

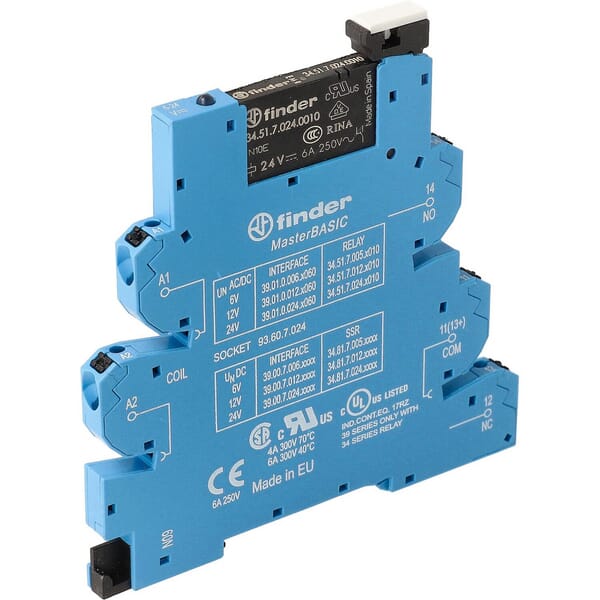

Finder Relay interface Mod. (EMR)MasterBASIC push-in.6,2mm.1CO 6A/24V UC/AgNi 390100240060
£19.24 excl.
£23.09 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000177948
Finder Socket Outlet 7U0082300010
£8.38 excl.
£10.06 incl.
In stock
Expected to ship on Friday 18 September
BPA000091713
Finder Relay 12-V, 6-A, 1-W ins/print 345170120010
£11.88 excl.
£14.26 incl.
In stock
Expected to ship on Friday 18 September
BPA000177947

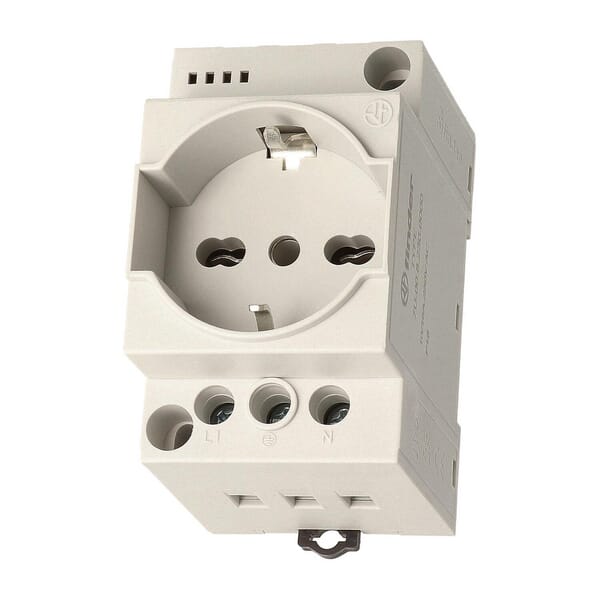

Finder Power outlet 230V, grey 7U0082300000
£10.41 excl.
£12.49 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000109559

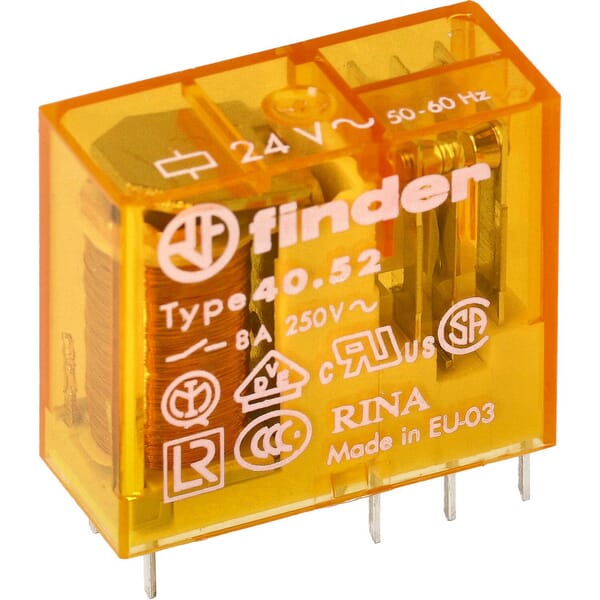

Finder Relay 2W 8A 24V AC 405280240000
