£11.34
excl. VAT
£13.61 incl. VAT
£13.61
incl. VAT
£11.34 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Complete with socket | No |
|---|---|
| Depth | 29 mm |
| Drive, polarization | Polarity free |
| Drive, switching attitude | Mono stable |
| Height | 25 mm |

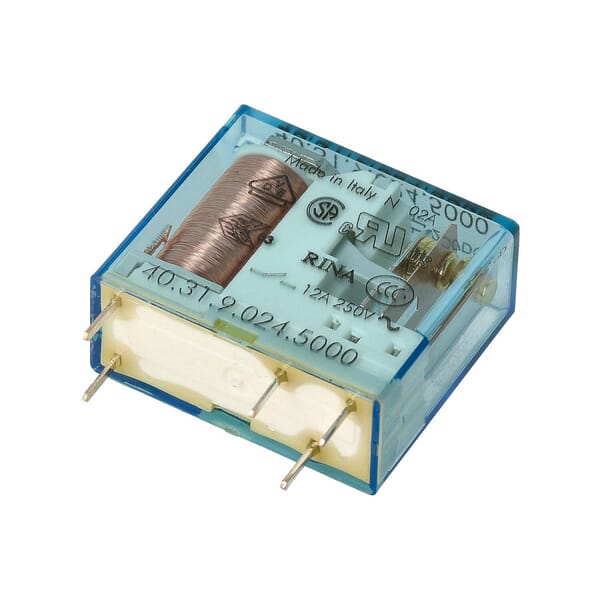

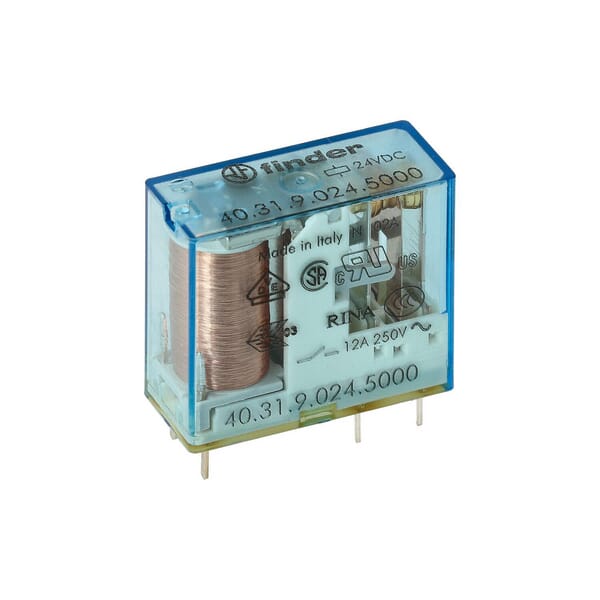

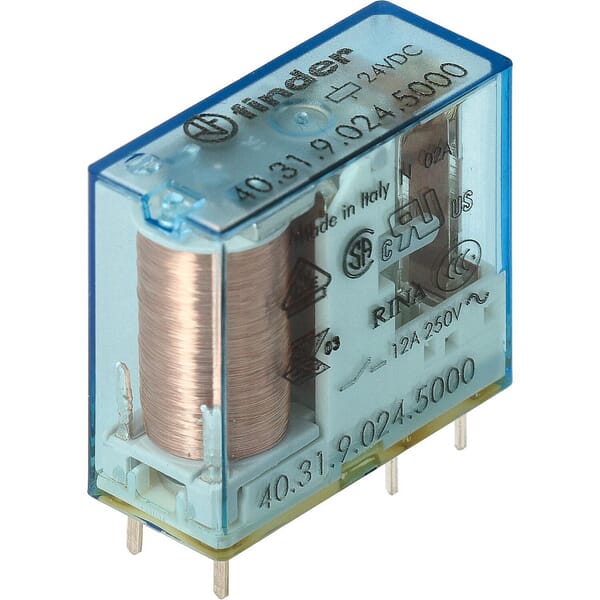

| Manufacturer Product ID | 40.31.9.024.5001 |
| Material contact | Silver nickel (AgNi) |
| Material of contact surface | Gold |
| Max. starting current | 20 A |
| Nominal current | 10 A |
| Number of contacts as change-over contact | 1 |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 0 |
| Operating voltage DC | 17.5-36.0 V |
| Product details | Finder relays Series 40 with the following features (according to Type):, Plug-in mounting on (DIN rail) sockets or on PCB's., Pin length 5.2 mm (for socket mount) or 3.5 mm (for PCB mount), 1 or 2 Change over contacts., AC or DC coils (low current consumption) |
| Rated control supply voltage Us at DC | 24.0-24.0 V |
| Relay technology category according to IEC 61810-7 | RT II |
| Type of electric connection | PCB connection |
| Type of switch contact | Single contact |
| Unit | Each |
| Voltage type for actuating | DC |
| Voltage type (operating voltage) | DC |
| Width | 12.4 mm |
| With detachable clamps | No |
| With forced-guided contacts | No |
| With LED indication | No |
Logistics
| EAN | 8012823009131 |
|---|---|
| Unit of measure | EA |
| Weight | 17 g |
| Dimensions | 29 × 12 × 30 mm |
| Dangerous goods | No |
You might also like
BPA000150749

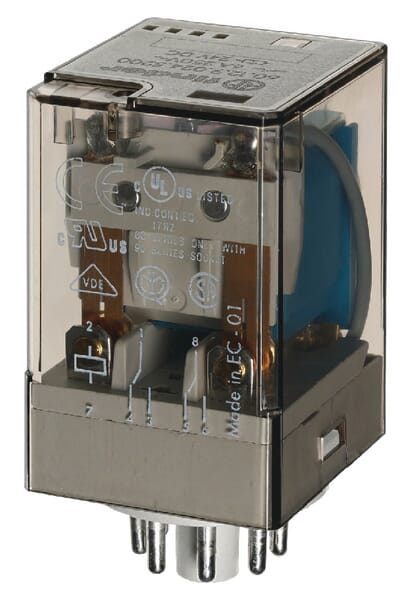

Finder Relay 2W 10A 24V/DC 601290240070
£34.83 excl.
£41.80 incl.
In stock
Expected to ship on Monday 21 September
BPA000100715

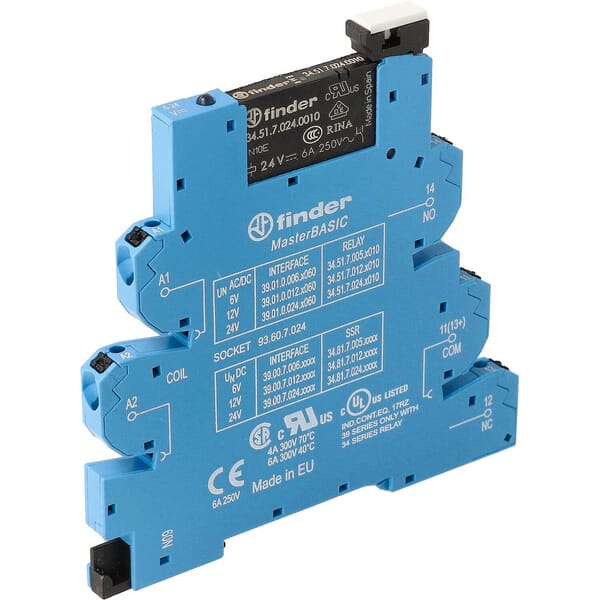

Finder Relay interface Mod. (EMR)MasterBASIC push-in.6,2mm.1CO 6A/24V UC/AgNi 390100240060
£19.24 excl.
£23.09 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000122308

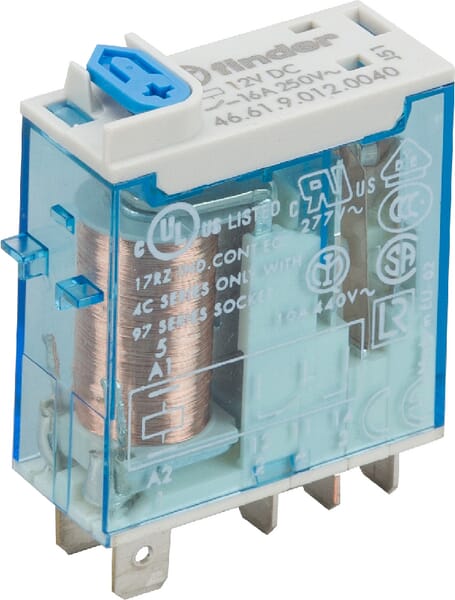

Finder Relay 1CO 16A 12VDC 466190120040
£10.24 excl.
£12.29 incl.
In stock
Expected to ship on Monday 21 September
BPA000189161

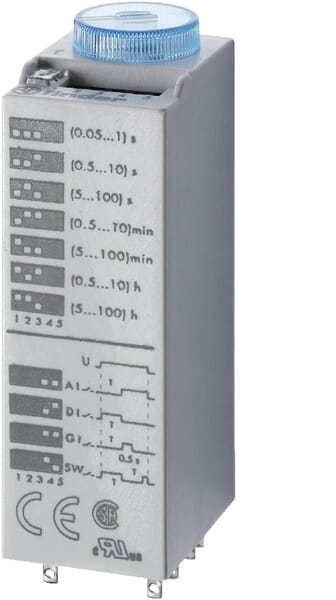

Finder Mini timing relay, 12VDC, 2W 850200120000
£94.13 excl.
£112.96 incl.
In stock
Expected to ship on Monday 21 September
BPA000072905
Finder Magnetic switch 223200244320
£39.98 excl.
£47.98 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000072904

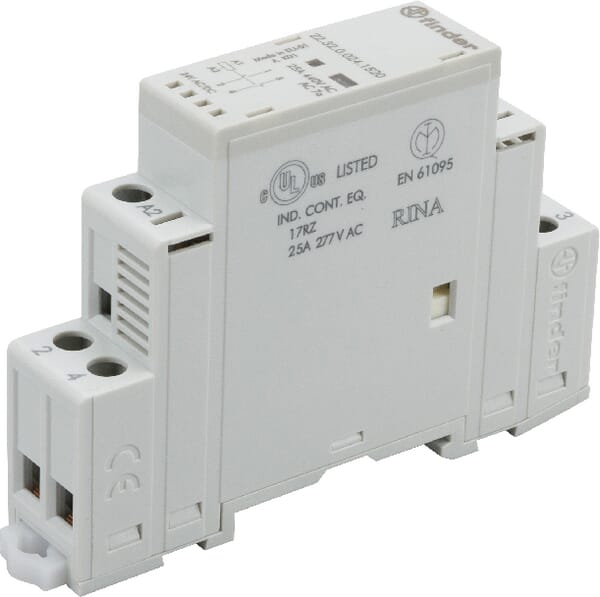

Finder Contactor 1NO 1NC 25A 24VUC 223200241520
