£16.25
excl. VAT
£19.50 incl. VAT
£19.50
incl. VAT
£16.25 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Complete with socket | No |
|---|---|
| Depth | 29 mm |
| Drive, polarization | Polarity free |
| Drive, switching attitude | Mono stable |
| Height | 25 mm |

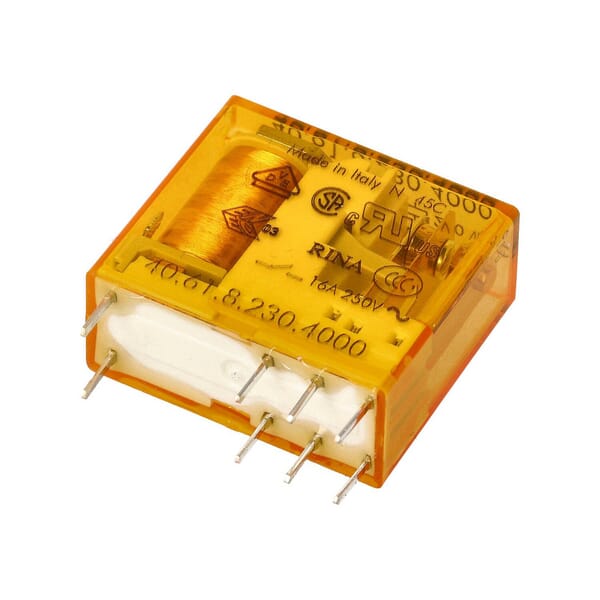

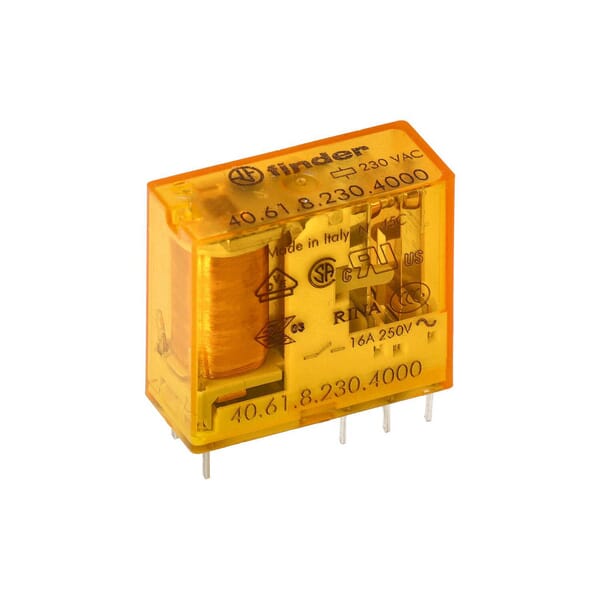

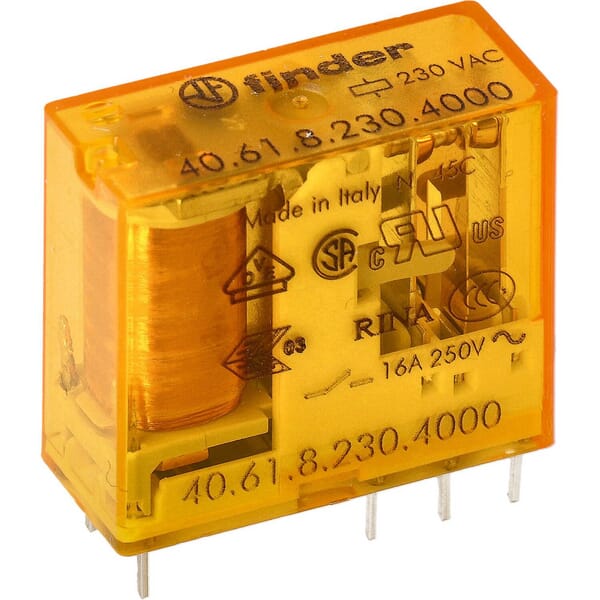

| Manufacturer Product ID | 40.61.8.230.4000 |
| Material contact | Silver tin oxide (AgSnO2) |
| Max. starting current | 30 A |
| Nominal current | 16 A |
| Number of contacts as change-over contact | 1 |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 0 |
| Operating voltage AC 50 Hz | 184.0-253.0 V |
| Operating voltage AC 60 Hz | 184.0-253.0 V |
| Product details | Finder relays Series 40 with the following features (according to Type):, Plug-in mounting on (DIN rail) sockets or on PCB's., Pin length 5.2 mm (for socket mount) or 3.5 mm (for PCB mount), 1 or 2 Change over contacts., AC or DC coils (low current consumption) |
| Rated control supply voltage Us at AC 50HZ | 230.0-230.0 V |
| Rated control supply voltage Us at AC 60HZ | 230.0-230.0 V |
| Relay technology category according to IEC 61810-7 | RT II |
| Type of electric connection | PCB connection |
| Type of switch contact | Single contact |
| Unit | Each |
| Voltage type for actuating | AC |
| Voltage type (operating voltage) | AC |
| Width | 12.4 mm |
| With detachable clamps | No |
| With forced-guided contacts | No |
| With LED indication | No |
Logistics
| EAN | 8012823096018 |
|---|---|
| Unit of measure | EA |
| Weight | 17 g |
| Dimensions | 29 × 12 × 30 mm |
| Dangerous goods | No |
You might also like
BPA000100311
Finder Relay interface Mod. (EMR)Screw.6,2mm.1CO 6A/24V UC/AgNi 385100240060
£21.64 excl.
£25.97 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000070155
Finder Contactor 4NO 40A 24VUC 224400244310
£106.45 excl.
£127.74 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000061732

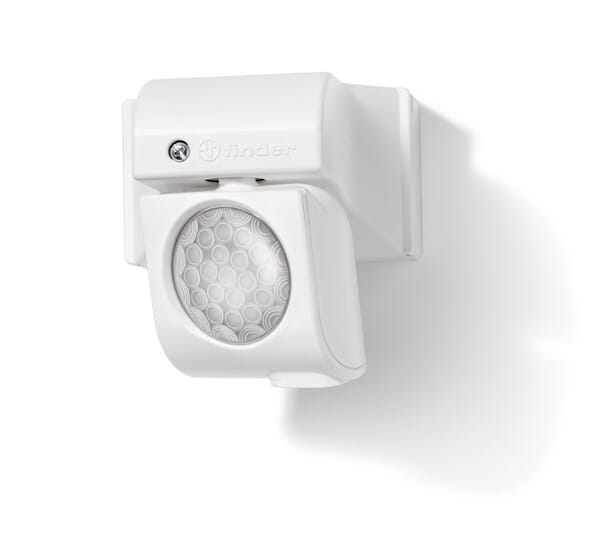

Finder PIR mov. Detector extern wall, push-in terminals, 1NO 10A/110-230V AC 18A182300000
£129.18 excl.
£155.01 incl.
In stock
Expected to ship on Monday 21 September
BPA000092209

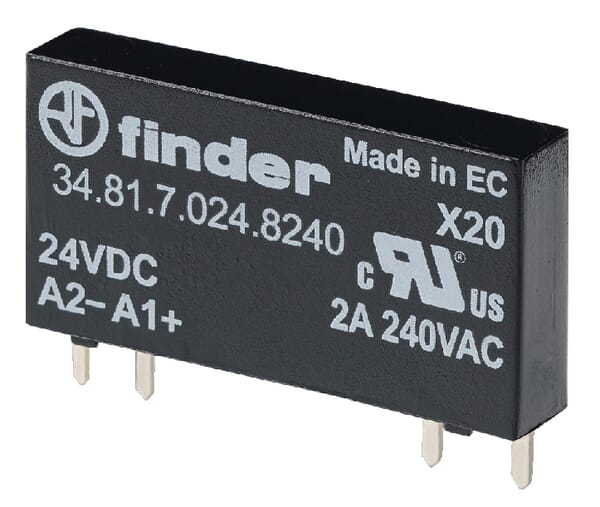

Finder Relay 24-VDC SSR, 2-A, 240-VAC output 348170248240
