£12.03
excl. VAT
£14.44 incl. VAT
£14.44
incl. VAT
£12.03 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Content in sale unit | 2 pcs |
|---|---|

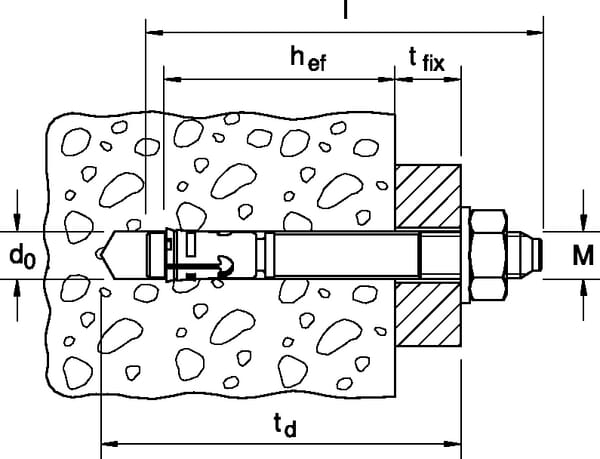

| d0Drill hole diameter | 8 mm |
| hefEffective anchorage depth | 45 mm |
| Length | 77 mm |
| Material anchor | Steel |
| Min. drill hole depth | 75 mm |
| Product details | The fischer FAZ II Plus bolt anchor is the steel anchor for the most demanding applications, with high tensile strengths and a wide range of applications. Heavy loads can be secured in cracked concrete using the steel anchor. The FAZ II Plus is easier and quicker to set thanks to the elimination of hole cleaning (M8-M24). The proven expansion clip safely inserts loads into the concrete and achieves a high load capacity that can be immediately loaded. For example, the steel anchor is ideal for anchoring railings, walkways, and consoles., Quick and easy installation without the need for hole cleaning (M8-M24), The new ETA rating significantly increases tensile strength, reducing the number of fixing points and anchors required., The rapid installation process of the FAZ II Plus offers an efficient fastening solution for dynamic applications with low load cycles (M16-24) with an immediately loadable fixing point., The FAZ II Plus can absorb high seismic loads of categories C1 and C2 for diameters M10-M24 with and without the use of the FFD backfill disc during installation., Numerous type approval certificates for various substrate materials (C12/15-C80/95 concrete, steel fiber concrete, solid lime sand bricks) increase the number of applications and fields of use., The new ETA confirms the use of the FAZ II Plus for dynamic loads for diameters M16-M24., The ETA evaluation, together with other test reports (RWS, ZTV, ETK), guarantees high loads in the event of a fire. |
| Surface protection anchor | Zinc-plated |
| tfixMax. clamping thickness | 10 mm |
| Thread diameter | M8 |
| Thread length | 38 mm |
| Unit | Pack |
| Wrench/spanner size | 13.0 mm |
Logistics
| EAN | 4006209909195 |
|---|---|
| Unit of measure | PAC |
| Weight | 69 g |
| Dimensions | 145 × 75 × 15 mm |
| Dangerous goods | No |
You might also like
BPA000139206
Fischer Frame fixing SXRL 10x160 4pcs 536194
£20.66 excl.
£24.79 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000139144
Fischer Plug Duopower 5x25 S 50pcs 535458
£9.86 excl.
£11.83 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000267499
Fischer Impact pin to fix FEAM16 FEAWH16PLUS
£106.65 excl.
£127.98 incl.
In stock
Expected to ship on Friday 18 September

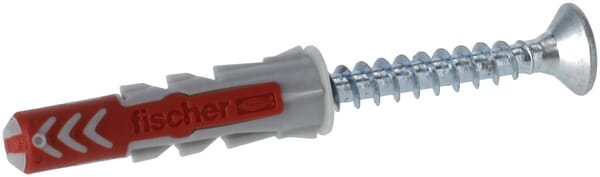

BPA000139145
Fischer Plug Duopower 6x30 S 50pcs 535459
£11.35 excl.
£13.62 incl.
In stock
Expected to ship on Friday 18 September
BPA000281152
Fischer Plasterboard plug with screw 5 GKSK
£10.59 excl.
£12.71 incl.
In stock
Expected to ship on Friday 18 September
Free shipping

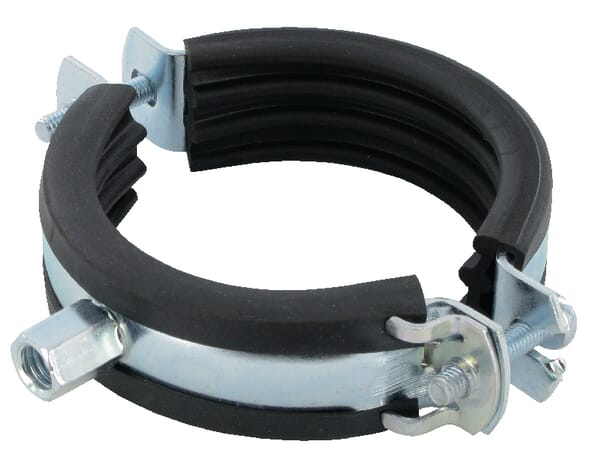

BPA000174296
