£3.61
excl. VAT
£4.33 incl. VAT
£4.33
incl. VAT
£3.61 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Content in sale unit | 20 pcs |
|---|---|

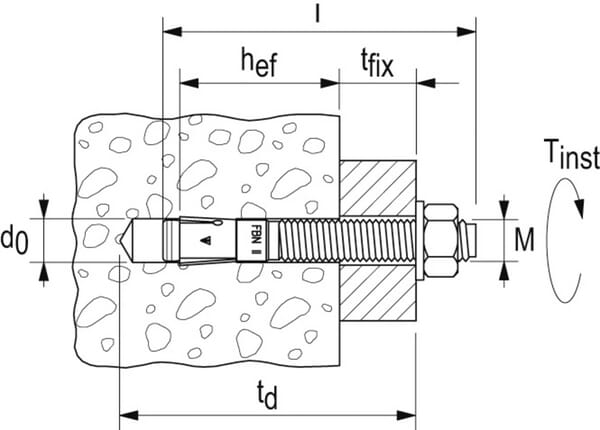

| d0Drill hole diameter | 12 mm |
| hefEffective anchorage depth | 65 mm |
| Length | 146 mm |
| Material anchor | Steel |
| Product details | The fischer FBN II anchor is a steel anchor for cost-effective fastenings in non-cracked concrete. Thanks to its long thread and two anchoring depths, the fischer FBN II anchor is particularly flexible. The bolt anchor is also suitable for stand-off installation, as well as pre-positioned and push-in installation. The galvanized steel version of the bolt anchor is suitable for fastening railings, walkways, and brackets in interior areas., The standard anchoring depth achieves maximum load-bearing capacities. This requires fewer fixing points and smaller anchor plates., The long thread balances component tolerances and allows for stand-off installations, thus increasing flexibility., The drive pin protects the thread from damage, thus ensuring faster installation and disassembly of the anchor., The reduced anchoring depth reduces the depth of the drill hole. This minimizes installation time while increasing flexibility., Few hammer blows and minimal torque slippage make installation significantly easier. |
| Surface protection anchor | Zinc-plated |
| tdMin. drill hole depth | 135 mm |
| tfixMax. clamping thickness | 50 mm |
| Thread diameter | M12 |
| Thread length | 99 mm |
| Unit | Each |
| Wrench/spanner size | 19.0 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 126 g |
| Dimensions | 91 × 90 × 9 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000174297

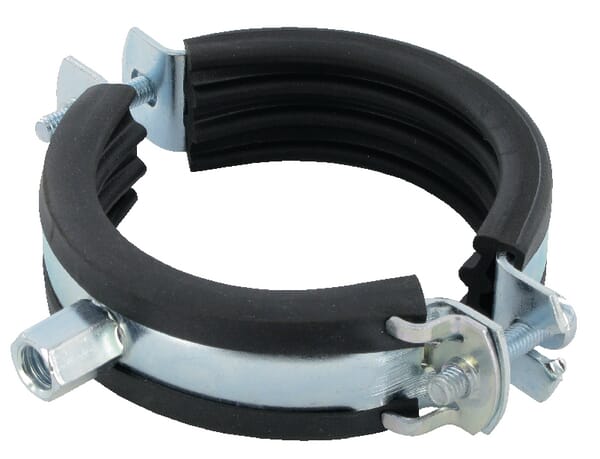

Fischer Pipe clamp FRS 133-141 8/10 10x 79457
£115.78 excl.
£138.94 incl.
In stock
Expected to ship on Friday 18 September
BPA000139039
Fischer Plug Duopower 8x40 WH K 4pcs 535001
£8.84 excl.
£10.61 incl.
In stock
Expected to ship on Friday 18 September
BPA000278417
Fischer Set tool for FTPK8 FTPEK8
£42.65 excl.
£51.18 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000107736

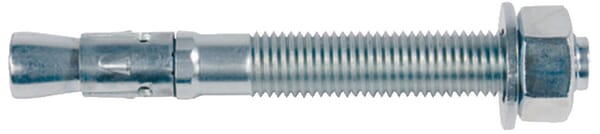

Fischer Bolt anchor FBN II 12/10 zinc plated 20x 40950
£40.66 excl.
£48.79 incl.
In stock
Expected to ship on Friday 18 September
BPA000139269
Fischer Concrete screw FBS II 12x70 20pcs 536869
£56.87 excl.
£68.24 incl.
In stock
Expected to ship on Friday 18 September
BPA000273499

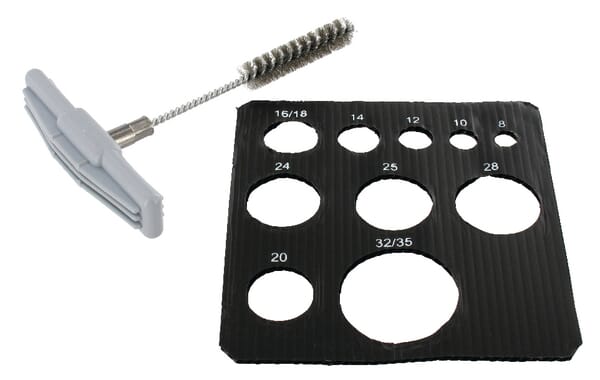

Fischer Round steel brush for hole diameter 12 FISBS12
