£354.33
excl. VAT
£425.20 incl. VAT
£425.20
incl. VAT
£354.33 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details
| Anchor model | External thread |
|---|---|
| Bracing | Split anchor |
| Content in sale unit | 50 pcs |
| Drill hole diameter | 10 mm |
| Effective anchorage depth | 50 mm |
| Fastening by expander tool | No |
| Fastening provision | Nut |
| Length | 85 mm |
| Manufacturer Product ID | 507558 |
| Material anchor | Stainless steel |
| Material quality anchor | A4 (steel) |
| Max. clamping thickness | 10 mm |
| Min. drill hole depth | 78 mm |
| Number of nuts | 1 |
| Number of washers | 1 |
| Pre-positioned installation | Yes |
| Product details | The fischer FBN II anchor is a steel anchor for cost-effective fastenings in non-cracked concrete. Thanks to its long thread and two anchoring depths, the fischer FBN II anchor is particularly flexible. The bolt anchor is also suitable for stand-off installation, as well as pre-positioned and push-in installation. The stainless steel version of the bolt anchor is suitable for fastening facade substructures, consoles, and stairs in outdoor areas., The standard anchoring depth achieves maximum load-bearing capacities. This requires fewer fixing points and smaller anchor plates., The long thread balances component tolerances and allows for stand-off installations, thus increasing flexibility., The drive pin protects the thread from damage, thus ensuring faster installation and disassembly of the anchor., The reduced anchoring depth reduces the depth of the drill hole. This minimizes installation time while increasing flexibility., Few hammer blows and minimal torque slippage make for significantly easier installation. |
| Push-through installation | Yes |
| Screwing system | Outside hexagon |
| Spaced installation | No |
| Surface protection anchor | None |
| Thread diameter | M10 |
| Thread length | 46 mm |
| Thread type | Metric |
| Unit | Box |
| With collar | No |
| Wrench/spanner size | 17.0 mm |
Logistics
| EAN | 4048962087413 |
|---|---|
| Unit of measure | BOX |
| Weight | 2733 g |
| Dimensions | 225 × 90 × 90 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000174391
Fischer Perforated banding LBK 19 8x 79554FIS
£319.32 excl.
£383.18 incl.
In stock
Expected to ship on Monday 21 September
BPA000139788
Fischer Plug Duopower 6x50 S box 50pcs 538255
£20.07 excl.
£24.08 incl.
In stock
Expected to ship on Monday 21 September

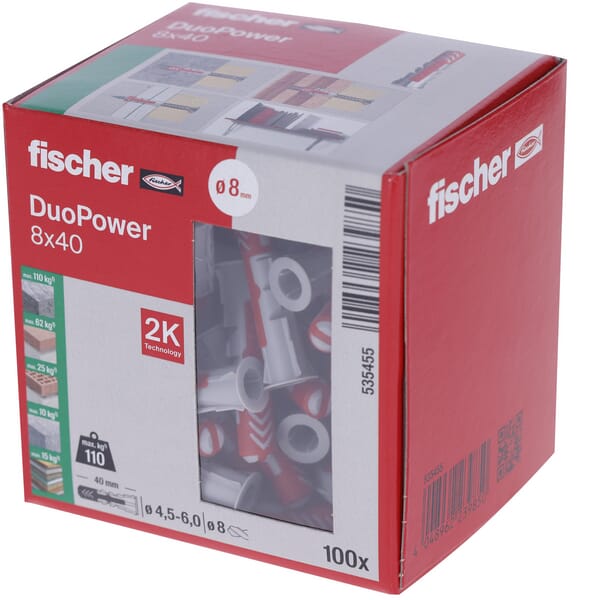

BPA000139142
Fischer Plug Duopower 8x40 100pcs 535455
£12.56 excl.
£15.07 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000138798
Fischer Concrete screw FBS II 6x40 P 100pcs 546378
£49.34 excl.
£59.21 incl.
In stock
Expected to ship on Monday 21 September

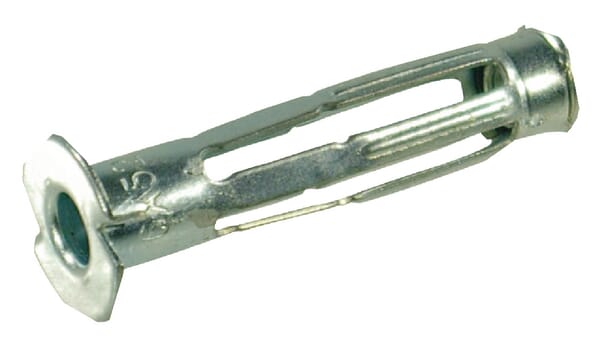

BPA000135155
Fischer Cavity fixing HM 6x52S metric screw 50x 519778
£78.05 excl.
£93.66 incl.
In stock
Expected to ship on Monday 21 September

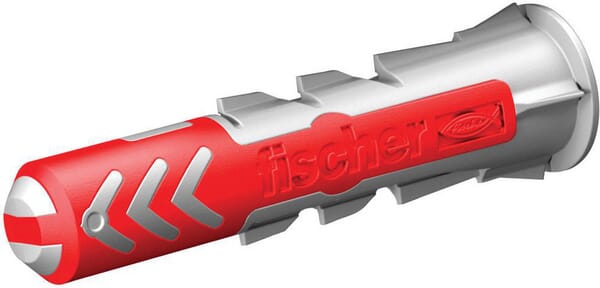

BPA000139032
