£35.76
excl. VAT
£42.91 incl. VAT
£42.91
incl. VAT
£35.76 excl. VAT
In stock
Expected to ship on Thursday 17 September
Product details
| Content in sale unit | 20 pcs |
|---|---|

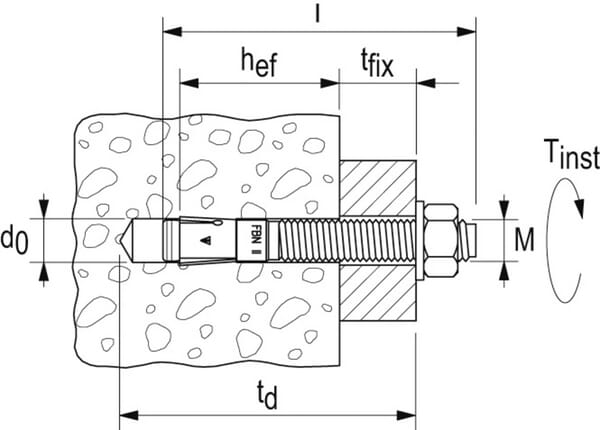

| d0Drill hole diameter | 10 mm |
| hefEffective anchorage depth | 50 mm |
| Length | 126 mm |
| Material anchor | Steel |

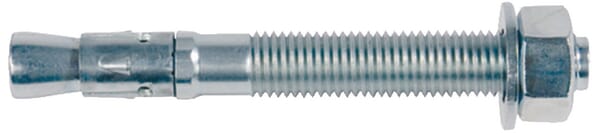

| Product details | The fischer FBN II anchor is a steel anchor for cost-effective fastenings in non-cracked concrete. Thanks to its long thread and two anchoring depths, the fischer FBN II anchor is particularly flexible. The bolt anchor is also suitable for stand-off installation, as well as pre-positioned and push-in installation. The galvanized steel version of the bolt anchor is suitable for fastening railings, walkways, and brackets in interior areas., The standard anchoring depth achieves maximum load-bearing capacities. This requires fewer fixing points and smaller anchor plates., The long thread balances component tolerances and allows for stand-off installations, thus increasing flexibility., The drive pin protects the thread from damage, thus ensuring faster installation and disassembly of the anchor., The reduced anchoring depth reduces the depth of the drill hole. This minimizes installation time while increasing flexibility., Few hammer blows and minimal torque slippage make installation significantly easier. |
| Surface protection anchor | Zinc-plated |
| tdMin. drill hole depth | 118 mm |
| tfixMax. clamping thickness | 50 mm |
| Thread diameter | M10 |
| Thread length | 86 mm |
| Unit | Box |
| Wrench/spanner size | 17.0 mm |
Logistics
| EAN | 4006209408551 |
|---|---|
| Unit of measure | BOX |
| Weight | 1516 g |
| Dimensions | 178 × 90 × 90 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000130327

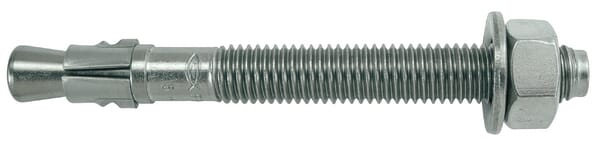

Fischer Bolt anchor FBN II 8/30R stainless steel 50x 507556FIS
£328.83 excl.
£394.60 incl.
In stock
Expected to ship on Friday 18 September
BPA000139273
Fischer Concrete screw FBS II 14x75 20pcs 536874
£77.64 excl.
£93.17 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000170149

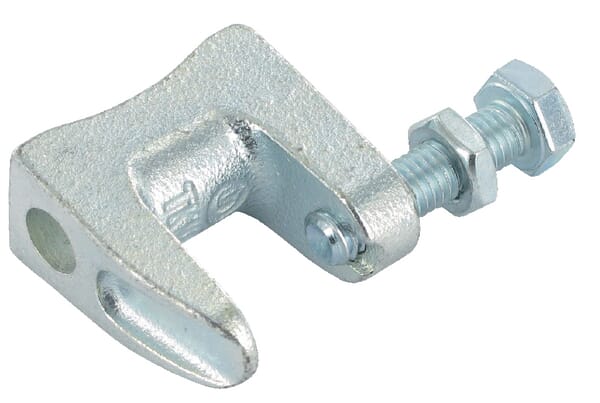

Fischer Clamp hanger TKL L diameter 9 50x 77605
£213.66 excl.
£256.39 incl.
In stock
Expected to ship on Friday 18 September
BPA000138462

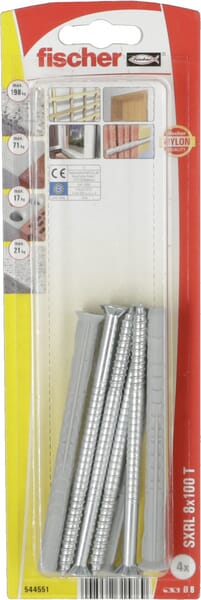

Fischer Frame fixing SXRL 8x100 4pcs 544551
