£328.83
excl. VAT
£394.60 incl. VAT
£394.60
incl. VAT
£328.83 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Anchor model | External thread |
|---|---|
| Bracing | Split anchor |
| Content in sale unit | 50 pcs |
| d0Drill hole diameter | 8 mm |
| Fastening by expander tool | No |
| Fastening provision | Nut |
| hefEffective anchorage depth | 40 mm |
| Length | 90 mm |
| Manufacturer Product ID | 507556 |
| Material anchor | Stainless steel |
| Material quality anchor | A4 (steel) |
| Number of nuts | 1 |
| Number of washers | 1 |
| Pre-positioned installation | Yes |
| Product details | The fischer FBN II anchor is a steel anchor for cost-effective fastenings in non-cracked concrete. Thanks to its long thread and two anchoring depths, the fischer FBN II anchor is particularly flexible. The bolt anchor is also suitable for stand-off installation, as well as pre-positioned and push-in installation. The stainless steel version of the bolt anchor is suitable for fastening facade substructures, consoles, and stairs in outdoor areas., The standard anchoring depth achieves maximum load-bearing capacities. This requires fewer fixing points and smaller anchor plates., The long thread balances component tolerances and allows for stand-off installations, thus increasing flexibility., The drive pin protects the thread from damage, thus ensuring faster installation and disassembly of the anchor., The reduced anchoring depth reduces the depth of the drill hole. This minimizes installation time while increasing flexibility., Few hammer blows and minimal torque slippage make for significantly easier installation. |
| Push-through installation | Yes |
| Screwing system | Outside hexagon |
| Spaced installation | No |
| Surface protection anchor | None |
| tdMin. drill hole depth | 86 mm |
| tfixMax. clamping thickness | 30 mm |
| Thread diameter | M8 |
| Thread length | 59 mm |
| Thread type | Metric |
| Unit | Box |
| With collar | No |
| Wrench/spanner size | 13.0 mm |
Logistics
| EAN | 4048962087390 |
|---|---|
| Unit of measure | BOX |
| Weight | 1702 g |
| Dimensions | 180 × 90 × 90 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000130331

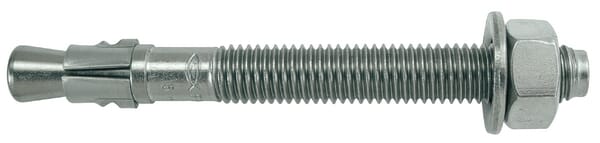

Fischer Bolt anchor FBN II 10/50R stainless steel 20x 507561FIS
£189.27 excl.
£227.12 incl.
In stock
Expected to ship on Friday 18 September
BPA000138809
Fischer Concrete screw FBS II 6x35 100pcs 546400
£79.18 excl.
£95.02 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000170149
Fischer Clamp hanger TKL L diameter 9 50x 77605
£213.66 excl.
£256.39 incl.
In stock
Expected to ship on Friday 18 September
BPA000267502
Fischer Impact pin to fix FEAM8x40 FEAWH8X40PLUS
£57.70 excl.
£69.24 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000138103

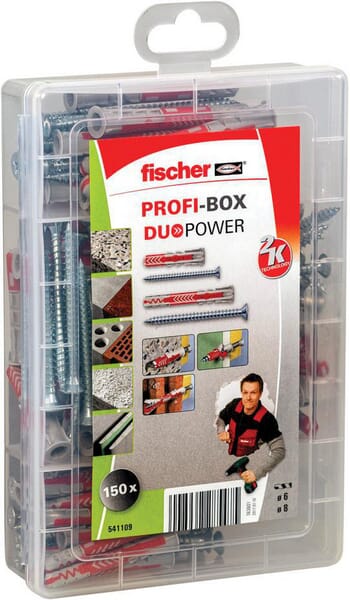

Fischer Profi-Box Duopower plug/screw assortment SL 150pcs 541109
£40.04 excl.
£48.05 incl.
In stock
Expected to ship on Friday 18 September
BPA000139204

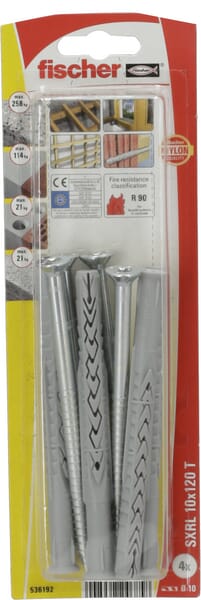

Fischer Frame fixing SXRL 10x120 4pcs 536192
