£189.27
excl. VAT
£227.12 incl. VAT
£227.12
incl. VAT
£189.27 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details
| Anchor model | External thread |
|---|---|
| Bracing | Split anchor |
| Content in sale unit | 20 pcs |

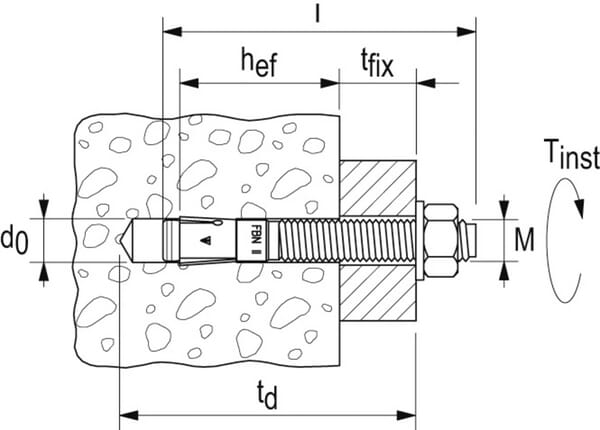

| d0Drill hole diameter | 10 mm |
| Fastening by expander tool | No |
| Fastening provision | Nut |
| hefEffective anchorage depth | 50 mm |
| Length | 125 mm |
| Manufacturer Product ID | 507561 |
| Material anchor | Stainless steel |
| Material quality anchor | A4 (steel) |
| Number of nuts | 1 |
| Number of washers | 1 |
| Pre-positioned installation | Yes |
| Product details | The fischer FBN II anchor is a steel anchor for cost-effective fastenings in non-cracked concrete. Thanks to its long thread and two anchoring depths, the fischer FBN II anchor is particularly flexible. The bolt anchor is also suitable for stand-off installation, as well as pre-positioned and push-in installation. The stainless steel version of the bolt anchor is suitable for fastening facade substructures, consoles, and stairs in outdoor areas., The standard anchoring depth achieves maximum load-bearing capacities. This requires fewer fixing points and smaller anchor plates., The long thread balances component tolerances and allows for stand-off installations, thus increasing flexibility., The drive pin protects the thread from damage, thus ensuring faster installation and disassembly of the anchor., The reduced anchoring depth reduces the depth of the drill hole. This minimizes installation time while increasing flexibility., Few hammer blows and minimal torque slippage make for significantly easier installation. |
| Push-through installation | Yes |
| Screwing system | Outside hexagon |
| Spaced installation | No |
| Surface protection anchor | None |
| tdMin. drill hole depth | 118 mm |
| tfixMax. clamping thickness | 50 mm |
| Thread diameter | M10 |
| Thread length | 86 mm |
| Thread type | Metric |
| Unit | Box |
| With collar | No |
| Wrench/spanner size | 17.0 mm |
Logistics
| EAN | 4048962087444 |
|---|---|
| Unit of measure | BOX |
| Weight | 1483 g |
| Dimensions | 180 × 90 × 90 mm |
| Dangerous goods | No |
You might also like
BPA000139577

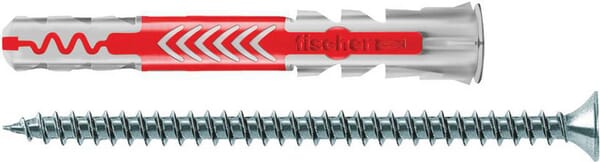

Fischer Plug Duopower 6x50 S 4pcs 537660
£8.55 excl.
£10.26 incl.
In stock
Expected to ship on Monday 21 September
BPA000317490
Fischer Nail plug+screw 8 N8100ZK
£12.45 excl.
£14.94 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000125668
Fischer Hammer.anchor EA II M10 stainless steel 50x 48414
£446.09 excl.
£535.31 incl.
In stock
Expected to ship on Monday 21 September
BPA000118907

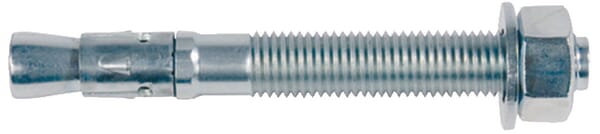

Fischer Bolt anchor FBN II 20/30 zinc plated 10x 45573
£98.47 excl.
£118.16 incl.
In stock
Expected to ship on Monday 21 September
BPA000139029

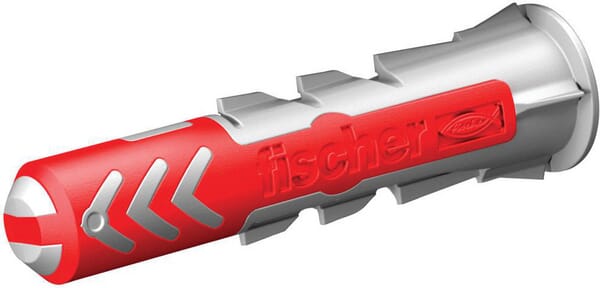

Fischer Plug Duopower 5x25 K 45pcs 534992
