£174.87
excl. VAT
£209.84 incl. VAT
£209.84
incl. VAT
£174.87 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Content in sale unit | 10 pcs |
|---|---|

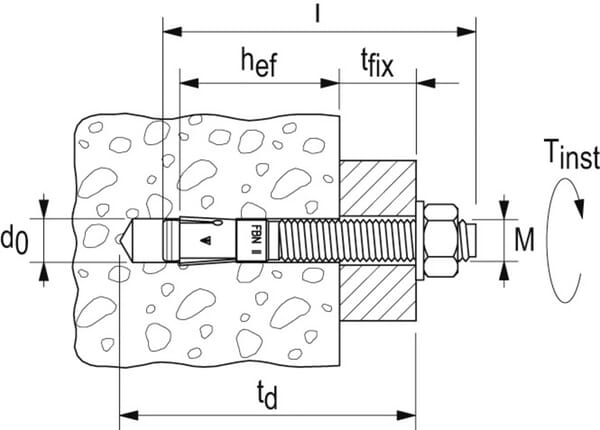

| d0Drill hole diameter | 20 mm |
| hefEffective anchorage depth | 105 mm |
| Length | 234 mm |
| Material anchor | Steel |
| Product details | The fischer FBN II anchor is a steel anchor for cost-effective fastenings in non-cracked concrete. Thanks to its long thread and two anchoring depths, the fischer FBN II anchor is particularly flexible. The bolt anchor is also suitable for stand-off installation, as well as pre-positioned and push-in installation. The galvanized steel version of the bolt anchor is suitable for fastening railings, walkways, and brackets in interior areas., The standard anchoring depth achieves maximum load-bearing capacities. This requires fewer fixing points and smaller anchor plates., The long thread balances component tolerances and allows for stand-off installations, thus increasing flexibility., The drive pin protects the thread from damage, thus ensuring faster installation and disassembly of the anchor., The reduced anchoring depth reduces the depth of the drill hole. This minimizes installation time while increasing flexibility., Few hammer blows and minimal torque slippage make installation significantly easier. |
| Surface protection anchor | Zinc-plated |
| tdMin. drill hole depth | 215 mm |
| tfixMax. clamping thickness | 80 mm |
| Thread diameter | M20 |
| Thread length | 90 mm |
| Unit | Box |
| Wrench/spanner size | 30.0 mm |
Logistics
| EAN | 4006209455753 |
|---|---|
| Unit of measure | BOX |
| Weight | 5904 g |
| Dimensions | 250 × 180 × 65 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000129356

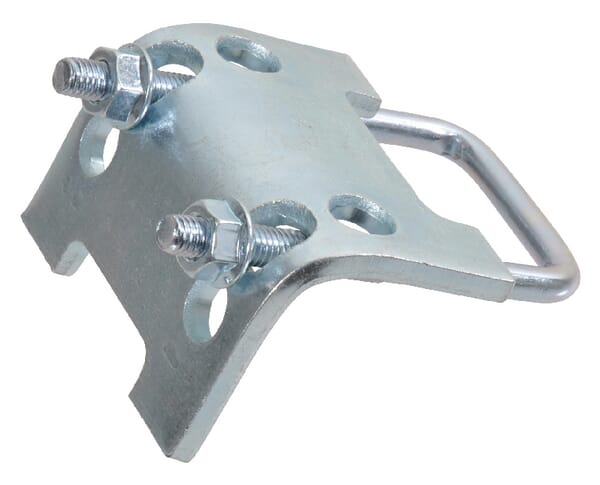

Fischer Beam clamp TKR 82 20x 504366
£276.12 excl.
£331.34 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000143672
Fischer FAZ II Plus 12/100 EV (12X200) 20pcs 564591
£101.30 excl.
£121.56 incl.
In stock
Expected to ship on Friday 18 September
BPA000273382

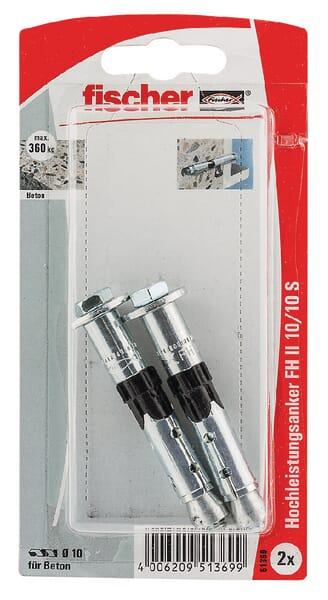

Fischer Anchor plug FH 10/10 (2) FH1010SK
£17.57 excl.
£21.08 incl.
In stock
Expected to ship on Friday 18 September
BPA000200597

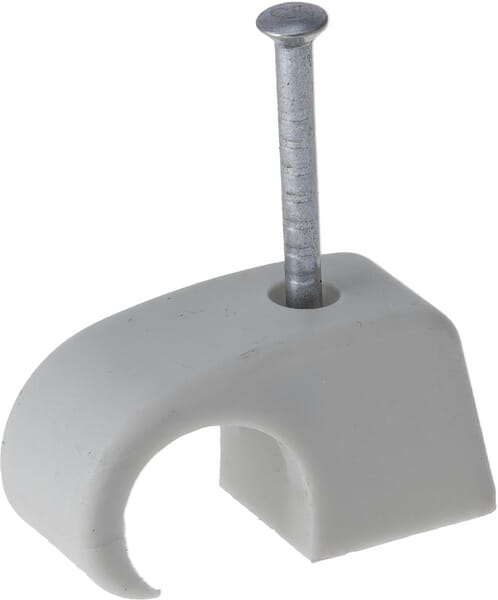

Fischer Nail clip MNS 7-11 100x 94674
£10.08 excl.
£12.10 incl.
In stock
Expected to ship on Friday 18 September
BPA000138798
Fischer Concrete screw FBS II 6x40 P 100pcs 546378
£49.34 excl.
£59.21 incl.
In stock
Expected to ship on Friday 18 September
BPA000317490

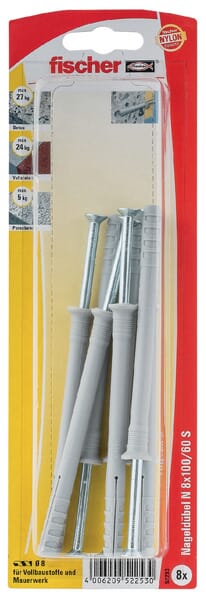

Fischer Nail plug+screw 8 N8100ZK
