£119.65
excl. VAT
£143.58 incl. VAT
£143.58
incl. VAT
£119.65 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details

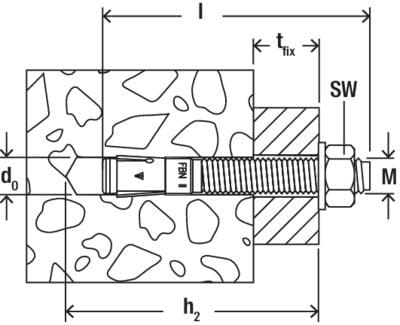

| Anchor model | External thread |
|---|---|
| Bracing | Split anchor |
| Content in sale unit | 100 pcs |
| Drill hole diameter | 6 mm |
| Effective anchorage depth | 30 mm |
| Fastening by expander tool | No |
| Fastening provision | Nut |
| Length | 55 mm |
| Manufacturer Product ID | 505527 |
| Material anchor | Steel |
| Max. clamping thickness | 10 mm |
| Min. drill hole depth | 50 mm |
| Number of nuts | 1 |
| Number of washers | 1 |
| Pre-positioned installation | Yes |
| Product details | The fischer FBN II anchor is a steel anchor for cost-effective fastenings in non-cracked concrete. Thanks to its long thread and two anchoring depths, the fischer FBN II anchor is particularly flexible. The bolt anchor is also suitable for stand-off installation, as well as pre-positioned and push-in installation. The galvanized steel version of the bolt anchor is suitable for fastening railings, walkways, and brackets in interior areas., The standard anchoring depth achieves maximum load-bearing capacities. This requires fewer fixing points and smaller anchor plates., The long thread balances component tolerances and allows for stand-off installations, thus increasing flexibility., The drive pin protects the thread from damage, thus ensuring faster installation and disassembly of the anchor., The reduced anchoring depth reduces the depth of the drill hole. This minimizes installation time while increasing flexibility., Few hammer blows and minimal torque slippage make installation significantly easier. |
| Push-through installation | Yes |
| Screwing system | Outside hexagon |
| Spaced installation | No |
| Surface protection anchor | Zinc-plated |
| Thread diameter | M6 |
| Thread length | 17 mm |
| Thread type | Metric |
| Unit | Box |
| With collar | No |
| Wrench/spanner size | 10.0 mm |
Logistics
| EAN | 4048962070248 |
|---|---|
| Unit of measure | BOX |
| Weight | 1302 g |
| Dimensions | 180 × 90 × 45 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000143672
Fischer FAZ II Plus 12/100 EV (12X200) 20pcs 564591
£101.30 excl.
£121.56 incl.
In stock
Expected to ship on Friday 18 September
BPA000118438

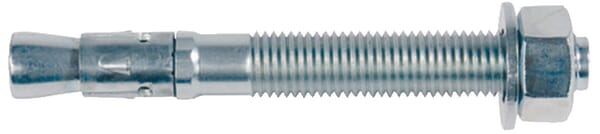

Fischer Bolt anchor FBN II 12/5 zinc plated 20x 45272FIS
£52.01 excl.
£62.41 incl.
In stock
Expected to ship on Friday 18 September
BPA000139144
Fischer Plug Duopower 5x25 S 50pcs 535458
£9.86 excl.
£11.83 incl.
In stock
Expected to ship on Thursday 17 September
BPA000143675
Fischer FAZ II Plus 16/50 EV (16X173) 10pcs 564596
£66.01 excl.
£79.21 incl.
In stock
Expected to ship on Friday 18 September
BPA000281152

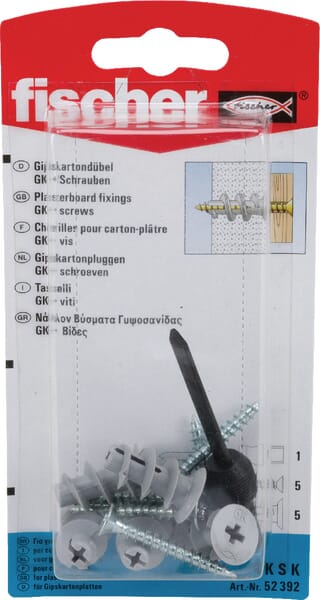

Fischer Plasterboard plug with screw 5 GKSK
