Product details
| Content in sale unit | 50 pcs |
|---|---|

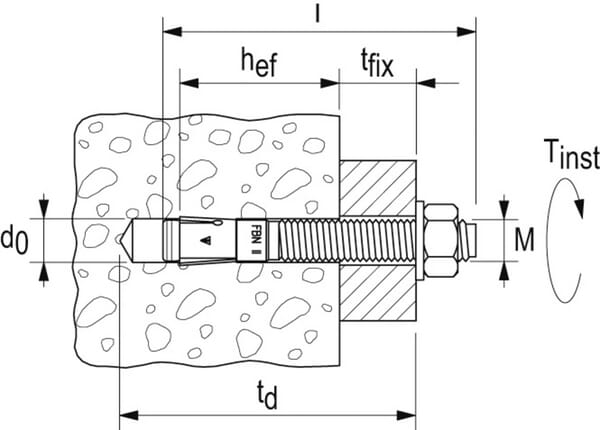

| d0Drill hole diameter | 8 mm |
| hefEffective anchorage depth | 40 mm |
| Length | 91 mm |
| Material anchor | Steel |
| Product details | The fischer FBN II anchor is a steel anchor for cost-effective fastenings in non-cracked concrete. Thanks to its long thread and two anchoring depths, the fischer FBN II anchor is particularly flexible. The bolt anchor is also suitable for stand-off installation, as well as pre-positioned and push-in installation. The galvanized steel version of the bolt anchor is suitable for fastening railings, walkways, and brackets in interior areas., The standard anchoring depth achieves maximum load-bearing capacities. This requires fewer fixing points and smaller anchor plates., The long thread balances component tolerances and allows for stand-off installations, thus increasing flexibility., The drive pin protects the thread from damage, thus ensuring faster installation and disassembly of the anchor., The reduced anchoring depth reduces the depth of the drill hole. This minimizes installation time while increasing flexibility., Few hammer blows and minimal torque slippage make installation significantly easier. |
| Surface protection anchor | Zinc-plated |
| tdMin. drill hole depth | 86 mm |
| tfixMax. clamping thickness | 30 mm |
| Thread diameter | M8 |
| Thread length | 59 mm |
| Unit | Box |
| Wrench/spanner size | 13.0 mm |
Logistics
| EAN | 4006209407004 |
|---|---|
| Unit of measure | BOX |
| Weight | 1750 g |
| Dimensions | 180 × 90 × 90 mm |
| Dangerous goods | No |
You might also like
BPA000139031

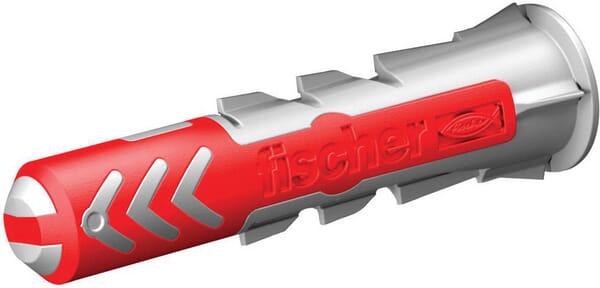

Fischer Plug Duopower 8x40 K 18pcs 534994
£7.35 excl.
£8.82 incl.
In stock
Expected to ship on Friday 18 September
BPA000266687
Fischer Anchor pin FBN II 12X50 FBN21250
£3.61 excl.
£4.33 incl.
In stock
Expected to ship on Thursday 17 September
BPA000140633
Fischer Concrete screw FBS II CP 8X100 50pcs 557785
£85.33 excl.
£102.40 incl.
In stock
Expected to ship on Friday 18 September
BPA000138806
Fischer Concrete screw FBS II 6x40 US 100pcs 546390
£43.08 excl.
£51.70 incl.
In stock
Expected to ship on Friday 18 September
BPA000170667

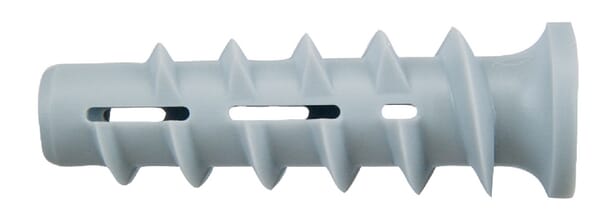

Fischer Turbo aircrete anchor FTP K8 25x 78413FIS
£48.57 excl.
£58.28 incl.
In stock
Expected to ship on Friday 18 September
BPA000278416

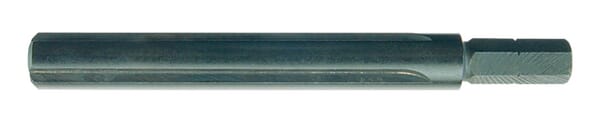

Fischer Set tool for FTPK4/FTPK6 FTPEK46
