£42.86
excl. VAT
£51.43 incl. VAT
£51.43
incl. VAT
£42.86 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Colour | Grey |
|---|---|
| Connection facility | Internal thread |
| Connection size, connection facility | M8, M10 |
| Content in sale unit | 25 pcs |
| Inlay | Rubber |
| Length | 52.3 mm |
| Lock facility | Screw |
| Manufacturer Product ID | 562351 |
| Material | Steel |
| Max. working diameter | 24 mm |
| Max. working temperature | 100 °C |
| Min. working diameter | 20 mm |
| Min. working temperature | -40 °C |
| Mounting plate width | 20 mm |

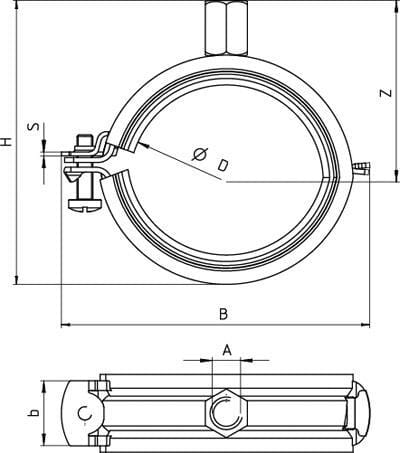

| Product details | The fischer hinged pipe clamp FGRS Universal is a pipe clamp with one screw made from zinc-plated steel in material quality DD11 with a M8 or combination M8 / M10 thread, The rapid-locking mechanism and combination thread ensure easy and time-saving assembly, The quick-release mechanism snaps into place, ensuring reliable adjustment of the pipe without causing the clamp to pop open, This allows pipelines with an outer diameter of 12 - 66mm to be securely fixed with a threaded rod or stud screw indoors, With a chlorine-free and silicone-free sound insulation insert, the pipe clamp meets the requirements of DIN 4109, Material: steel DC01 (material no. 1.0330) acc. to DIN EN 10130, Zinc plating: electro zinc-plated, Connecting nut: resistance welded, M8 / M10, SW 13, Locking screw: flat head screw with TX drive, Material sound insulation insert: EPDM; chlorine-free; silicone-free, Sound insulation: for DIN 4109, Temperature range: -40 °C to +100 °C, Hardness: 55 ± 5° Shore A, Fire behaviour: DIN 4102: Class B2 |
| Suitable for aluminium tube | Yes |
| Suitable for cast iron pipe | Yes |
| Suitable for copper tube | Yes |
| Suitable for pipe coil | Yes |
| Suitable for plastic tube | Yes |
| Suitable for stainless steel tube | Yes |
| Suitable for steel tube | Yes |
| Suitable for thin-walled pipe | Yes |
| Surface protection | Galvanised, Electrolytic zinc plated |
| Surface treatment | None |
| Unit | Box |
| Width | 58 mm |
Logistics
| EAN | 4048962440904 |
|---|---|
| Unit of measure | BOX |
| Weight | 943 g |
| Dimensions | 260 × 125 × 55 mm |
| Dangerous goods | No |
You might also like
BPA000273503

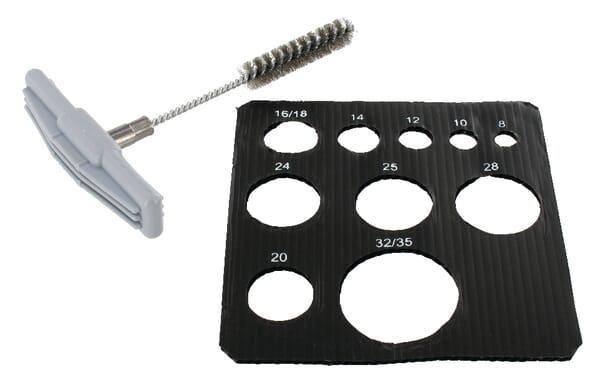

Fischer Round steel brush for hole diameter 8 FISBS8
£38.98 excl.
£46.78 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000174296
Fischer Pipe clamp FRS 121-128 8/10 10x 79456FIS
£102.87 excl.
£123.44 incl.
In stock
Expected to ship on Friday 18 September
BPA000139205
Fischer Frame fixing SXRL 10x140 4pcs 536193
£15.75 excl.
£18.90 incl.
In stock
Expected to ship on Friday 18 September
BPA000118901
Fischer Bolt anchor FBN II 16/25 zinc plated 10x 45564
£52.07 excl.
£62.48 incl.
In stock
Expected to ship on Friday 18 September
BPA000128126

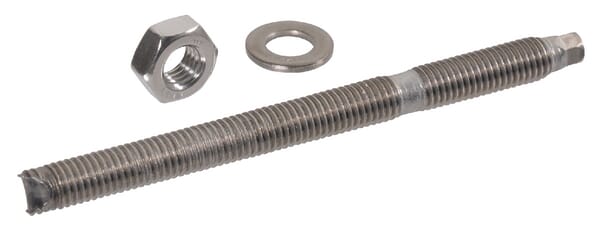

Fischer Threaded rod RG M10x130 galvanised steel 5.8 10x 50257
£30.38 excl.
£36.46 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000130326
Fischer Bolt anchor FBN II 8/10R stainless steel 50x 507555
£286.98 excl.
£344.38 incl.
In stock
Expected to ship on Friday 18 September
Recently viewed
BPA000405258
GLT/LHG Bearing bush 25x28x30mm ZB252830PTFE
£2.28 excl.
£2.74 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000404935
GLT/LHG Bearing bush 6x12x8mm ZB061208SINT
£2.30 excl.
£2.76 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000237083
GLT/LHG Bearing bush 40x50x50mm BB40506050SINT
£39.87 excl.
£47.84 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000043812
Walterscheid Yoke, Flange, W2300/P300/W300E 1363081
£287.98 excl.
£345.58 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000345978

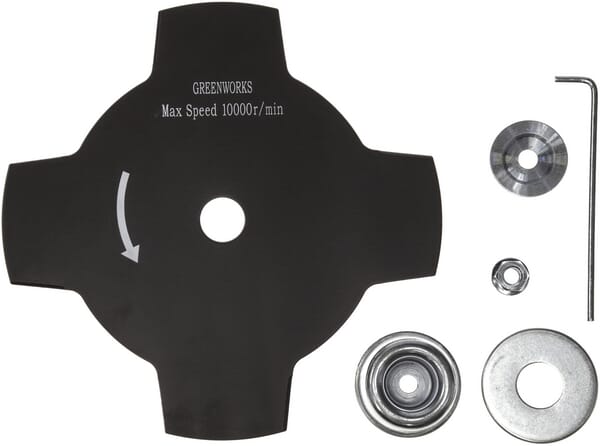

Greenworks Brushcutter blade 4T, diameter 300-25.4mm RA33313836V
£34.52 excl.
£41.42 incl.
In stock
Expected to ship on Monday 21 September
BPA000195960
Hella Fuse Mini blade 32V 15A Length 16.3mm blue Pack 10x 8JS728596222
£1.57 excl.
£1.88 incl.
In stock
Expected to ship on Friday 18 September
BPA000328949
Kramp O-ring 158.12x5.33mm 90 shore OR1581253390P001
£3.10 excl.
£3.72 incl.
In stock
Expected to ship on Monday 21 September
BPA000307568
Kramp T-shirt grey/black XS KW106830090046
£19.24 excl.
£23.09 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000309729
Kramp 9" carbon steel crimp pliers, with 6 crimp dies LAT2000ASS1KR
£208.50 excl.
£250.21 incl.
In stock
Expected to ship on Monday 21 September
BPA000405332
GLT/LHG Bearing bush 30x40x60mm ZB304060SINT
£25.32 excl.
£30.38 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000055836

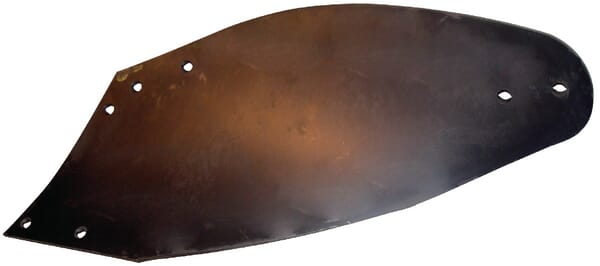

Grégoire-Besson Mouldboard LH AR5H BORON steel Gand B 174019
