£124.86
excl. VAT
£149.83 incl. VAT
£149.83
incl. VAT
£124.86 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Connections thread diameter | 1/2 Inch |
|---|---|
| Designed for medium | Hydraulic oil |
| Includes | Cartridge, Steel housing |
| Long description | Equalising valves or brake valves provide controlled movement, stopping and holding of loads. They prevent the lag of movements (negative load) and protect the installation against external forces (anti-shock). Overcentre valves provide controlled initiation and stopping of a movement, while holding the load at rest. When mounted directly on the cylinder or motor, they also function as hose breakage protection. |
| Material | Steel |
| Max flow rate | 50 l/min |
| Max working pressure | 350 BAR |
| Number of connections | 4 |
| Pilot ratio | 1:4.25 |
| Product details | Load-holding function adjustable for A or B lines, pressure setting should be approx. 30% higher than the maximum load pressure, Operation is return pressure dependent, high return pressure may adversely affect the function of the valve, Free flow from V to C, Max. pressure 350 bar., Max. flow Range 0 to 120 l/min |
| Pros | Allows smooth, controlled movements and accurate positioning of pulling and pushing loads, Hose breakage protection if fitted as close to the user as possible, Negative final check |
| Surface treatment | Zinc-plated |
| Total height | 30 mm |
| Total length | 156 mm |
| Total width | 55 mm |
| Type | n/a |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1695 g |
| Dimensions | 155 × 65 × 35 mm |
| Dangerous goods | No |
You might also like

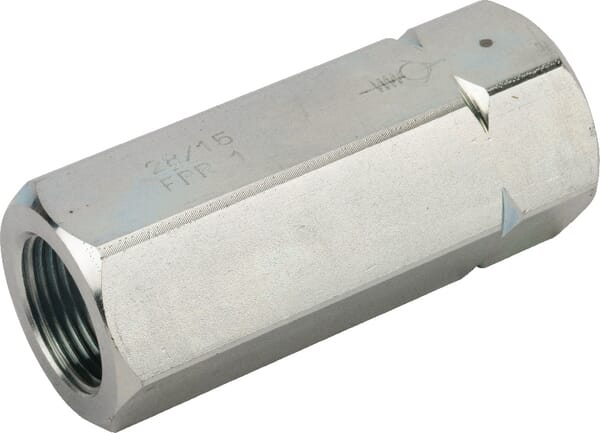

BPA000310208
FluidPress Check valve S 16 (5.0 bar) LCV25002
£56.54 excl.
£67.85 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000279593
FluidPress Flow control valve 50–90 ST 3 Way FPVP12ST
£223.86 excl.
£268.63 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000279522
FluidPress Counter balance valve double 3/4" FPOE120D34LA35B
£268.07 excl.
£321.68 incl.
In stock
Expected to ship on Tuesday 22 September

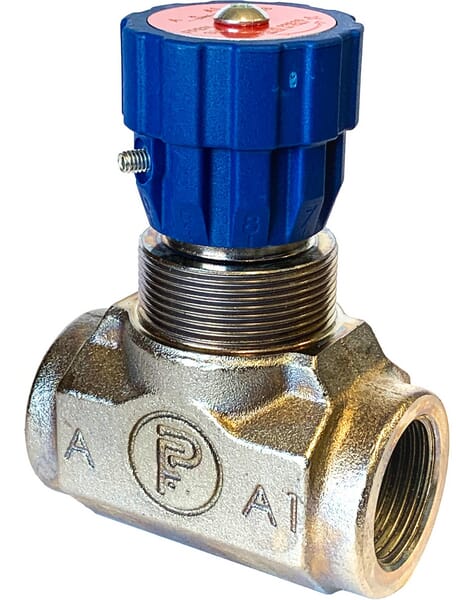

BPA000279403
