£173.93
excl. VAT
£208.72 incl. VAT
£208.72
incl. VAT
£173.93 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Connections thread diameter | 1/2 Inch |
|---|---|
| Designed for medium | Hydraulic oil |
| Includes | Cartridge, Steel housing |
| Long description | Equalising valves or brake valves provide controlled movement, stopping and holding of loads. They prevent the lag of movements (negative load) and protect the installation against external forces (anti-shock). Overcentre valves provide controlled initiation and stopping of a movement, while holding the load at rest. When mounted directly on the cylinder or motor, they also function as hose breakage protection. |
| Material | Steel |
| Max flow rate | 50 l/min |
| Max working pressure | 350 BAR |
| Number of connections | 3 |
| Pilot ratio | 1:4.25 |
| Product details | Load-holding function adjustable for A or B lines, pressure setting should be approx. 30% higher than the maximum load pressure, Operation is return pressure dependent, high return pressure may adversely affect the function of the valve, Free flow from V to C, Max. pressure 350 bar., Max. flow Range 0 to 120 l/min |
| Pros | Allows smooth, controlled movements and accurate positioning of pulling and pushing loads, Hose breakage protection if fitted as close to the user as possible, Negative final check |
| Surface treatment | Zinc-plated |
| Total height | 30 mm |
| Total length | 158 mm |
| Total width | 55 mm |
| Type | n/a |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1687 g |
| Dimensions | 158 × 65 × 35 mm |
| Dangerous goods | No |
You might also like
BPA000310202
FluidPress Check valve S 08 (2.5 bar) LCV10004
£13.00 excl.
£15.60 incl.
Backorder available
Usually ships within 3–8 weeks

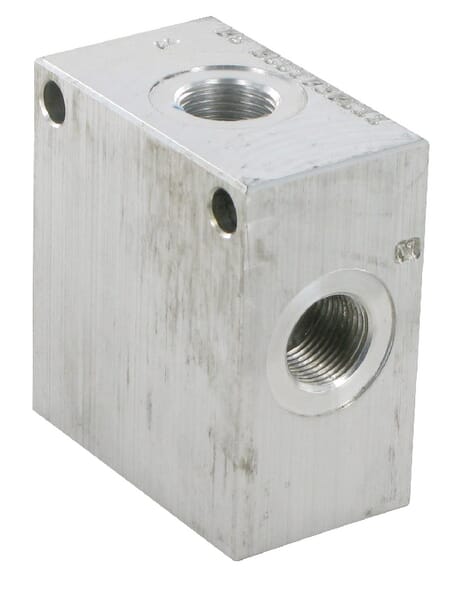

BPA000089846
FluidPress Body steel 8/3 - 1/4" 33081G04S1
£53.45 excl.
£64.14 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000279479
FluidPress Press. relief valve FPMD 1/2 FPMD10001IL
£138.01 excl.
£165.61 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000279445
FluidPress Flow divider 1-3/4 115–150 l FPFDS16CB1E34
£301.90 excl.
£362.28 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000279491
FluidPress Relief Valve FPM D 70 CB R 3/4 20 FPMD70CBR3420
£88.61 excl.
£106.33 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000089937
FluidPress Body Aluminium 10/3 - 3/8" 33101G06A1
£57.10 excl.
£68.52 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000397170
Kramp Lower link pin 22x138mm thread: M20x39mm Cat.1 Z422120KR
£3.04 excl.
£3.65 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000119452
Kramp Circlip external 37x1.8mm DIN471 Steel 47137P025
£0.66 excl.
£0.79 incl.
In stock
Expected to ship on Tuesday 22 September

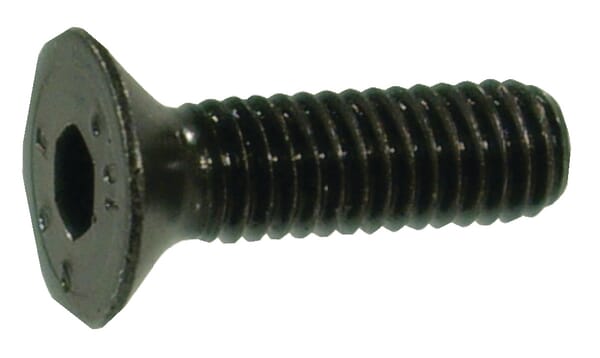

BPA000179400
