£169.55
excl. VAT
£203.46 incl. VAT
£203.46
incl. VAT
£169.55 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Housing material | Aluminium, Steel |
|---|---|
| Includes | Housing with mounted cartridges |

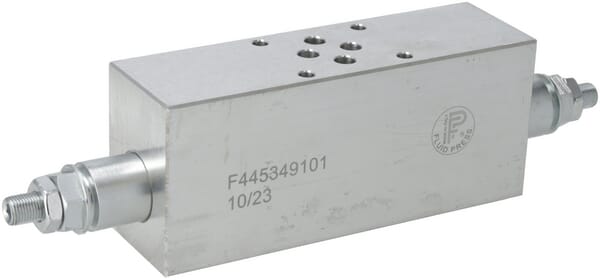

| Long description | Balancing valves or brake valves have triple action and can be used in all hydraulic systems where negative loads occur. On the one hand, they brake and control the negative load for optimal and safe ease of use. Furthermore, as load-holding valves, they ensure that an unoperated motor or cylinder remains in its current position. As a third function, it acts as hose breakage protection if mounted directly on the cylinder or motor. Type 6L is the flange fitting CETOP model. |
| Max. flow rate | 50 l/min |
| Max working pressure | 270 BAR |
| Pressure range | 80-350 BAR |
| Product details | Type 6L is the flange fitting CETOP model., Load-holding function adjustable for A and B lines, pressure setting should be approx. 30% higher than the maximum load pressure, Negative load check, Operation depends on return pressure, Protects consumer against cavitation, Protects against pressure peaks caused by external forces, Allows smooth, controlled movement, Compact flush mounting, Pressure increase : 120 bar/turn, Setting: 280 bar |

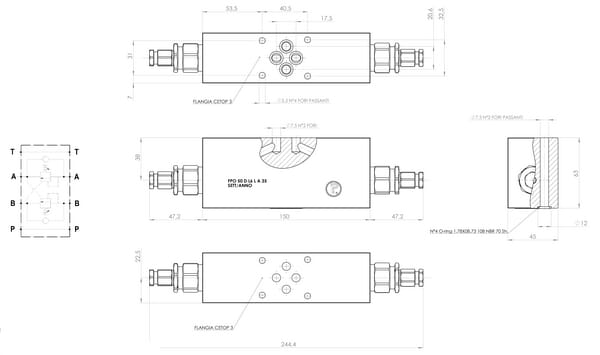

| Total height | 63 mm |
| Total length | 244.4 mm |
| Total width | 45 mm |
| Unit | Each |
| Weight | 1.4 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1390 g |
| Dimensions | 240 × 65 × 45 mm |
| Dangerous goods | No |
You might also like
BPA000279478
FluidPress Press. relief valve FPMD 1/2 FPMD10001
£59.66 excl.
£71.59 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000070861
FluidPress Body Steel 10/2 - 1/2 BSP 23101G08S1
£51.87 excl.
£62.24 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000279400

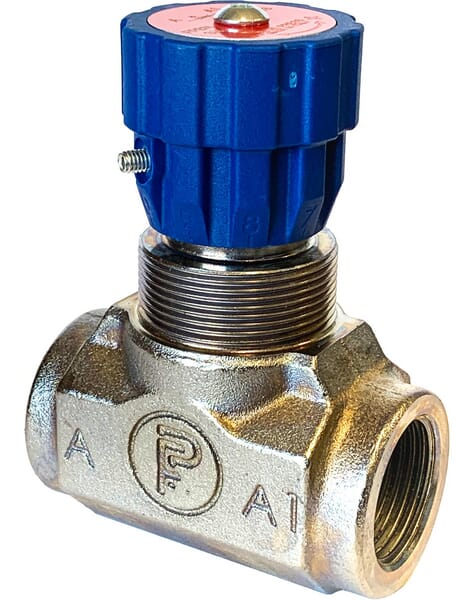

FluidPress Throttle Valve M-04-PV-P-V-1/4 FPBN03001
£30.68 excl.
£36.82 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000279508

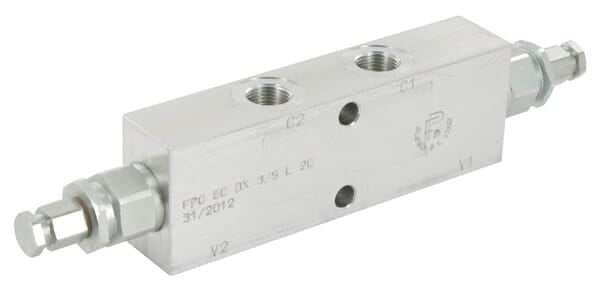

FluidPress Double equalising valve FPO50DX38L20
£92.42 excl.
£110.90 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000279530

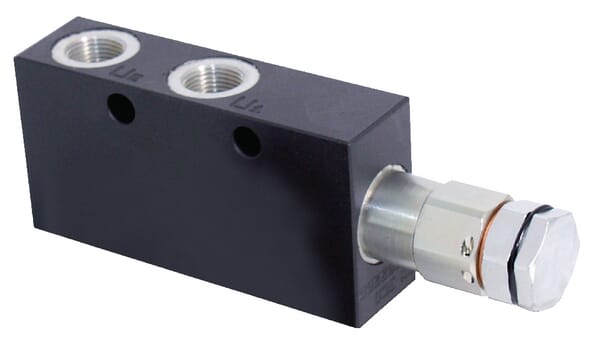

FluidPress Counter balance FPOFB 50 S 1/2 L P 35 FPOFB50S12LP35
£160.09 excl.
£192.11 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000279292

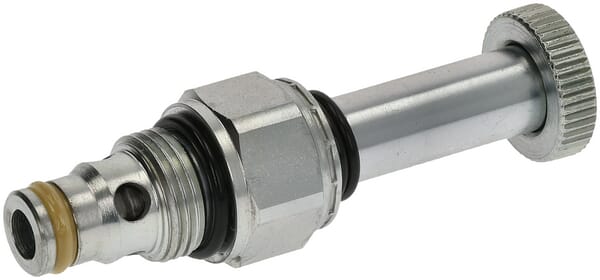

FluidPress Valve 2/2 NC FP-22-CP-S08-06 FP22CPS0806
