£326.77
excl. VAT
£392.12 incl. VAT
£392.12
incl. VAT
£326.77 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September

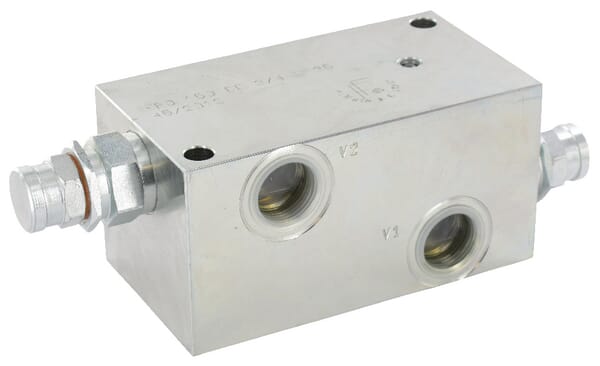

Product details
| Adjustable pressure range | 100-350 BAR |
|---|---|
| Body length | 146 mm |
| Connections thread diameter | 3/4 Inch |
| Designed for medium | Hydraulic oil |
| Includes | Cartridge, Steel housing |

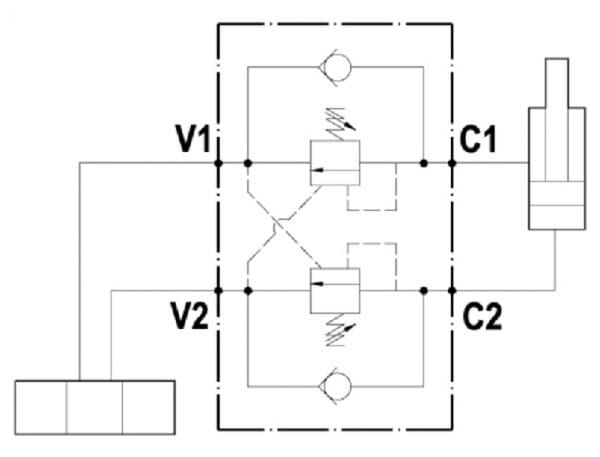

| Long description | Equalising valves or brake valves provide controlled movement, stopping and holding of loads. They prevent the lag of movements (negative load) and protect the installation against external forces (anti-shock). Overcentre valves provide controlled initiation and stopping of a movement, while holding the load at rest. When mounted directly on the cylinder or motor, they also function as hose breakage protection. |
| Material | Steel |
| Max flow rate | 150 l/min |
| Max working pressure | 350 BAR |
| Max working temperature | 90 °C |
| Min working temperature | -20 °C |
| Number of connections | 4 |
| Pilot ratio | 1:4.0 |

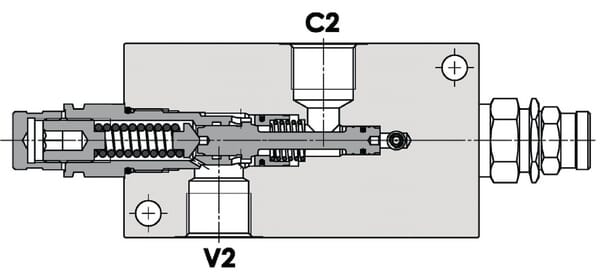

| Product details | Load-holding function adjustable for A or B lines, pressure setting should be approx. 30% higher than the maximum load pressure, Operation is return pressure dependent, high return pressure may adversely affect the function of the valve, Free flow from V to C, Max. pressure 350 bar., Max. flow Range 0 to 120 l/min |
| Pros | Allows smooth, controlled movements and accurate positioning of pulling and pushing loads, Hose breakage protection if fitted as close to the user as possible, Negative final check |
| Sealing material | Buna-N |
| Standard pressure setting | 280 BAR |
| Surface treatment | Zinc-plated |
| Total height | 75 mm |
| Total length | 238 mm |
| Total width | 80 mm |
| Type | Double |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 6405 g |
| Dimensions | 235 × 80 × 75 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000279521
FluidPress Counter balance valve double 3/4" FPOE120D34LA20B
£244.38 excl.
£293.26 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000279522

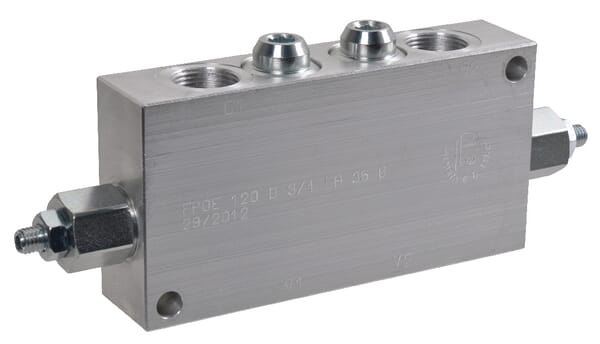

FluidPress Counter balance valve double 3/4" FPOE120D34LA35B
£268.07 excl.
£321.68 incl.
In stock
Expected to ship on Friday 18 September
BPA000279410

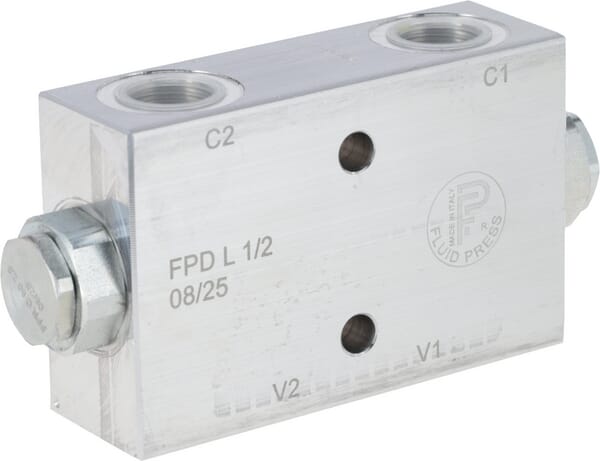

FluidPress Inline gest. check valve 1/2 B FPD10DF
£77.39 excl.
£92.87 incl.
In stock
Expected to ship on Friday 18 September
BPA000310203

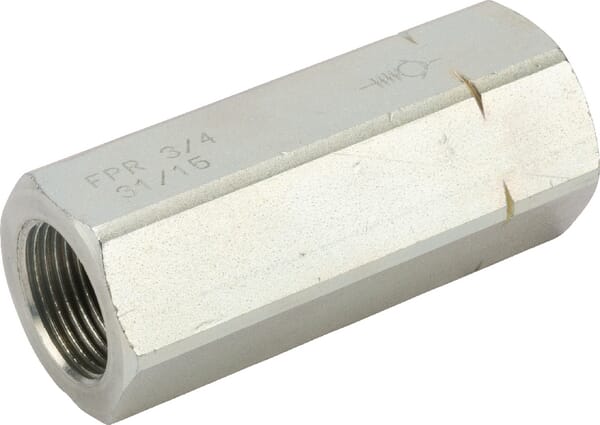

FluidPress Check valve S 12 (0.5 bar) LCV20001
£24.23 excl.
£29.08 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000279418

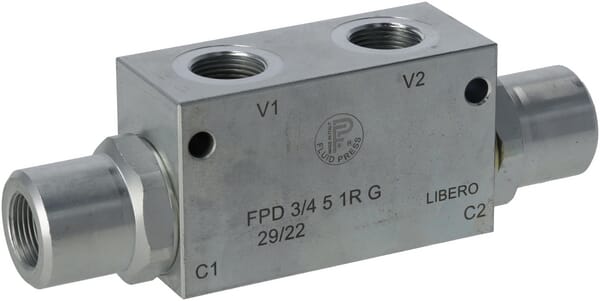

FluidPress Pilot Check valve FPD 3/4 5 1R G FPD3451RG
