£493.76
excl. VAT
£592.51 incl. VAT
£592.51
incl. VAT
£493.76 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Connections thread type | BSP |
|---|---|
| Designed for medium | Oil |
| Includes | Cartridge, Steel housing |
| Long description | Equalising valves or brake valves provide controlled movement, stopping and holding of loads. They prevent the lag of movements (negative load) and protect the installation against external forces (anti-shock). Overcentre valves provide controlled initiation and stopping of a movement, while holding the load at rest. When mounted directly on the cylinder or motor, they also function as hose breakage protection. |
| Material | Aluminium |
| Max flow rate | 150 l/min |
| Max working pressure | 210 BAR |
| Number of connections | 5 |
| Pilot ratio | 1:4.0 |
| Primary application | Hydraulic |
| Product details | Load-holding function adjustable for A or B lines, pressure setting should be approx. 30% higher than the maximum load pressure, Operation is return pressure dependent, high return pressure may adversely affect the function of the valve, Free flow from V to C, Max. pressure 350 bar., Max. flow Range 0 to 120 l/min |
| Pros | Allows smooth, controlled movements and accurate positioning of pulling and pushing loads, Hose breakage protection if fitted as close to the user as possible, Negative final check |
| Sealing material | Buna-N |
| Surface treatment | n/a |
| Type | Single |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | — |
| Dimensions | — |
| Dangerous goods | No |
You might also like
Free shipping
BPA000279547

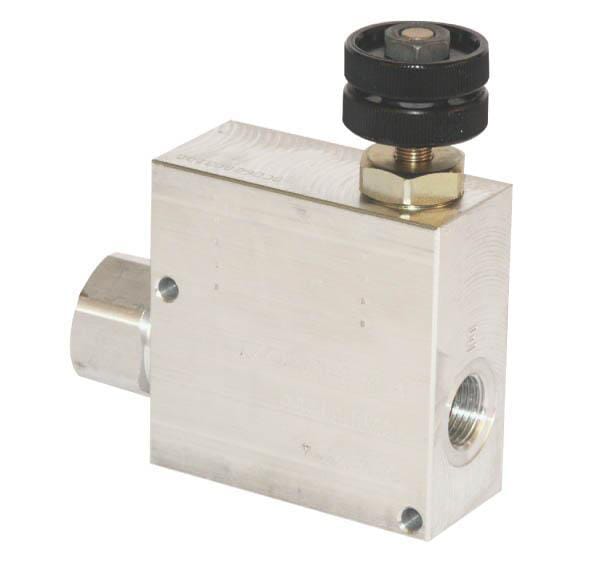

FluidPress Flow control 3 Way FPRF 3/8 K FPRF38K
£200.69 excl.
£240.83 incl.
In stock
Expected to ship on Friday 18 September
BPA000279481
FluidPress Press. relief vlv, steel, 1/2 FPMD10001ST
£73.92 excl.
£88.70 incl.
In stock
Expected to ship on Friday 18 September
BPA000093086

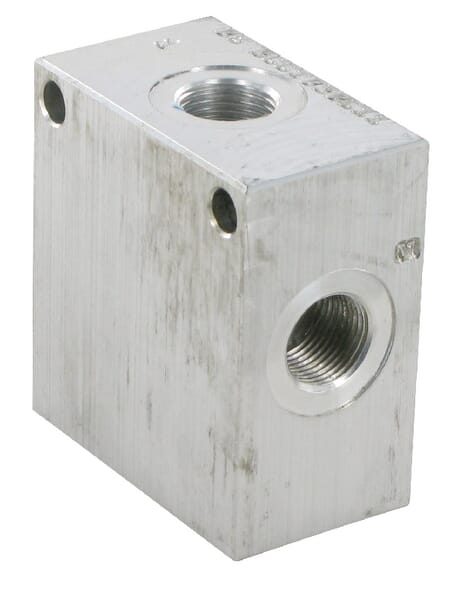

FluidPress Body Aluminium 12/3 - 1/2" 33121G08A1
£99.29 excl.
£119.15 incl.
In stock
Expected to ship on Friday 18 September
BPA000279486

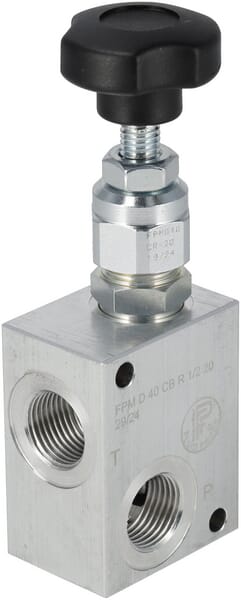

FluidPress Relief Valve FPM D 40 CB R 1/2 20 FPMD40CBR1220
£80.33 excl.
£96.40 incl.
In stock
Expected to ship on Friday 18 September
BPA000282535
FluidPress Hose break valve VB-1/2" BSP HBV910
£16.40 excl.
£19.68 incl.
In stock
Expected to ship on Monday 21 September
BPA000279422

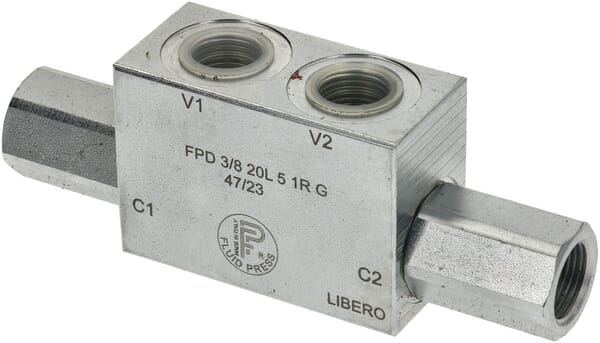

FluidPress Pilot Check valve FPD 3/8 20L 5 1R G FPD3820L51RG
