£905.58
excl. VAT
£1,086.70 incl. VAT
£1,086.70
incl. VAT
£905.58 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details

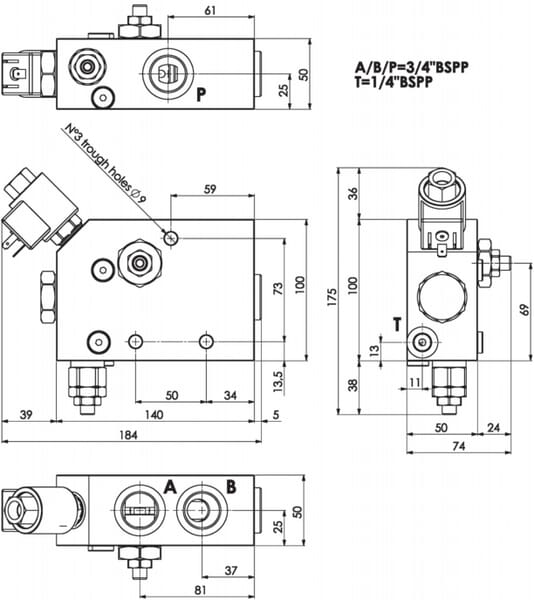

| Connection 2, thread diameter | 1/4 Inch |
|---|---|
| Connection thread diameter | 3/4 Inch |

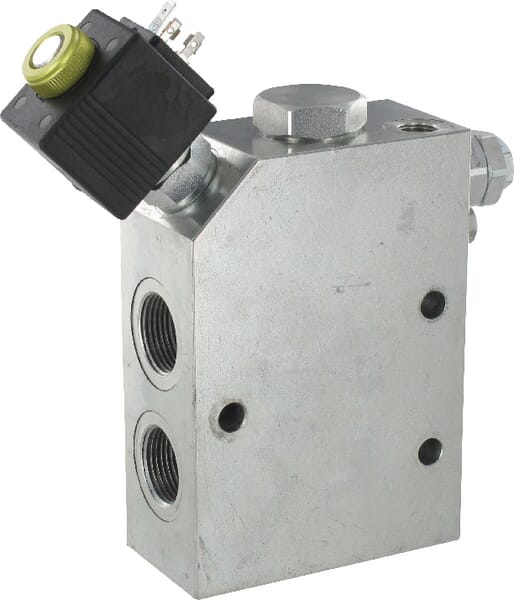

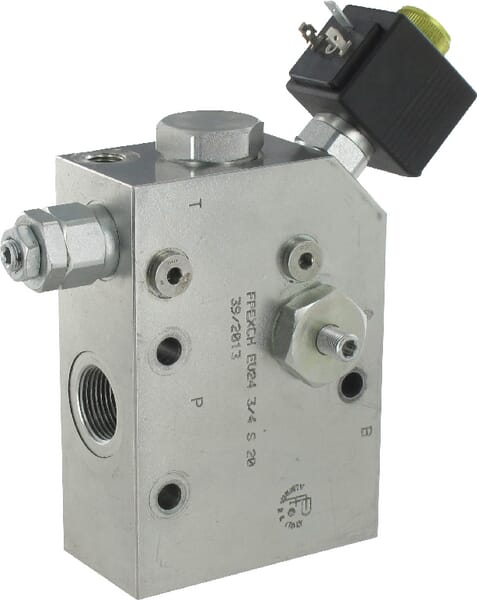

| Long description | A hydraulic hammer valve is utilized in devices such as hydraulic breakers and hammers, commonly found in construction and demolition work. It operates by regulating the flow of hydraulic fluid, generating repeated, high-force impacts. |
| Max. flow rate | 200 l/min |
| Max working pressure | 350 BAR |
| Min. working pressure | 100 BAR |
| Product details | Pressure increase : 95 bar per turn, Max backpressure on T: 1.5 bar, Max leakage: 3 L/min, To ensure the correct operation of the hydrostat when the electric valve is open, it is important to maintain a backpressure of at least 7.5 bar on the regulated line (P). If this backpressure cannot be achieved, a check valve must be installed to guarantee the required backpressure., To avoid deflection of the valve body, which could prevent the internal spool from functioning correctly, it is recommended to use 3 equal spacers (metal washers) when positioning and tightening the valve. Place one spacer on each fixing hole between the valve body and the supporting structure. |
| Total length | 184 mm |
| Total width (diameter) | 100 mm |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 5142 g |
| Dimensions | 215 × 180 × 55 mm |
| Dangerous goods | No |
You might also like
Free shipping

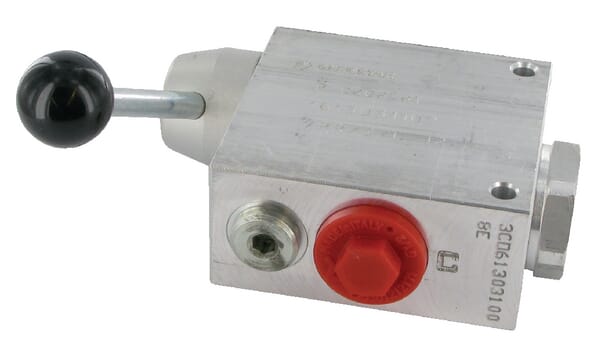

BPA000279567
FluidPress Flow control valve 2 Way FPRUC 3/8 H FPRUC38H
£246.90 excl.
£296.28 incl.
In stock
Expected to ship on Friday 18 September

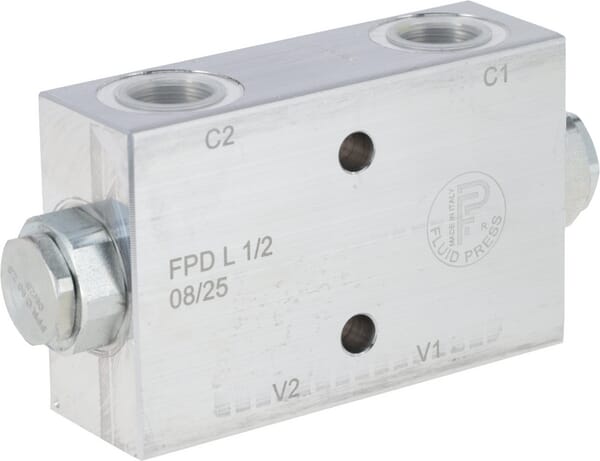

BPA000279408
FluidPress Inline gest. check valve 3/8 B FPD05DF
£52.32 excl.
£62.78 incl.
Backorder available
Usually ships within 3–8 weeks

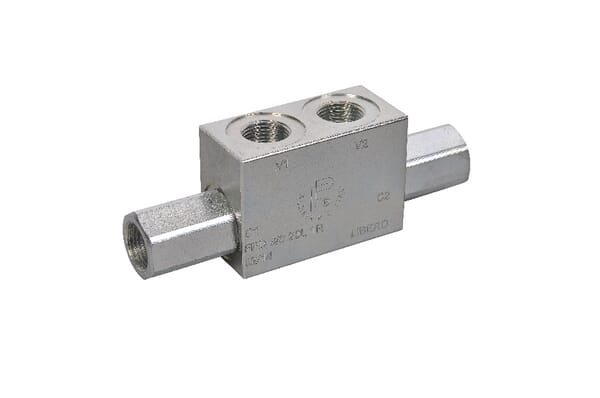

BPA000279405
FluidPress Check valve 3/8 BSP FPD03002
£35.97 excl.
£43.16 incl.
In stock
Expected to ship on Friday 18 September

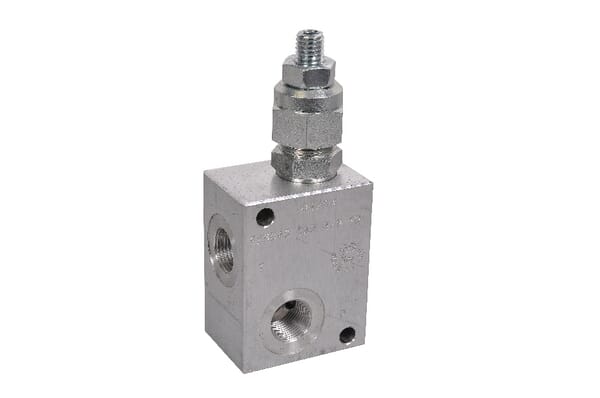

BPA000279482
FluidPress Press. relief valve FPMD 1/2 5-5 FPMD10002
£71.33 excl.
£85.60 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000279522
FluidPress Counter balance valve double 3/4" FPOE120D34LA35B
£268.07 excl.
£321.68 incl.
In stock
Expected to ship on Friday 18 September
Free shipping

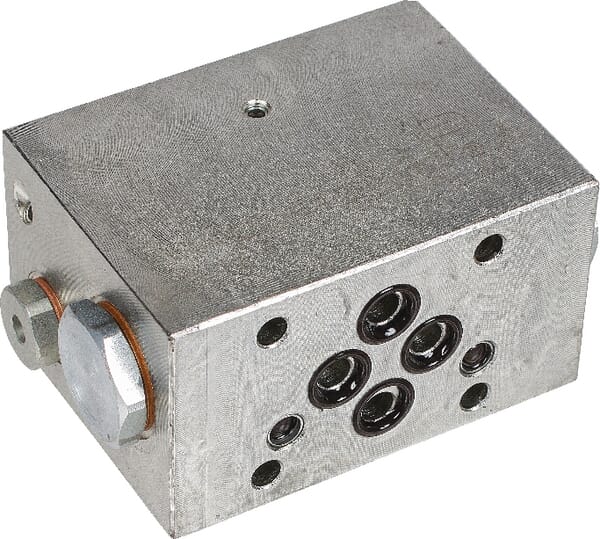

BPA000279461
