£975.00
excl. VAT
£1,170.00 incl. VAT
Pack of 25 · £39.00 each excl. VAT
£1,170.00
incl. VAT
£975.00 excl. VAT
Pack of 25 · £46.80 each incl. VAT
In stock
Expected to ship on Monday 28 September
Product details
| Bend radius | 76 mm |
|---|---|
| DN | 16 mm |
| Hose inside diameter | 15.9 mm |
| Hose outside diameter | 24.1 mm |
| Long description | Gates MegaFlex M2T is a flexible high-pressure hydraulic hose with a small bending radius. This hose meets or exceeds the requirements of the latest SAE 100R16-; ISO-11237 and EN8572SC standards. This compact hose has two layers of high quality steel wire reinforcement. |
| Material inside | Synthetic rubber |
| Material outside | Synthetic rubber |
| Max working pressure | 262 BAR |
| Max working temperature | 100 °C |
| Medium | Hydraulic oil |
| Min working temperature | -40 °C |
| Product details | Recommended for hose installation in tight or confined spaces, The two reinforcement layers are made of high quality steel wire, Manufactured from synthetic rubber and fitted with modified Nitrile type C2, The outside is oil resistant, has a high wear resistance and is weather resistant, Suitable for mobile applications used in agriculture, construction, mining and other sectors, as well as in stationary applications in industry and MRO, among others, These reels contain a maximum of three lengths per reel, with the shortest length being at least 3 metres. |
| Pros | The small bending radius allows shorter assemblies, saving money, Improved flexibility for easier installation in confined spaces, Longer service life in situations with demanding pressure pulses and bending applications, The green hose with silver print makes it easy to identify the hose |
| Qty. Rounding | 25 |
| Reinforcement material | High tensile steel |
| Reinforcement number of plies | 2 |
| Reinforcement type | Braid |
| Type | Hydraulic high pressure hose |
| Unit | Metre |
Logistics
| EAN | — |
|---|---|
| Unit of measure | MTR |
| Weight | 710 g |
| Dimensions | 400 × 400 × 12 mm |
| Dangerous goods | No |
You might also like
BPA000286687

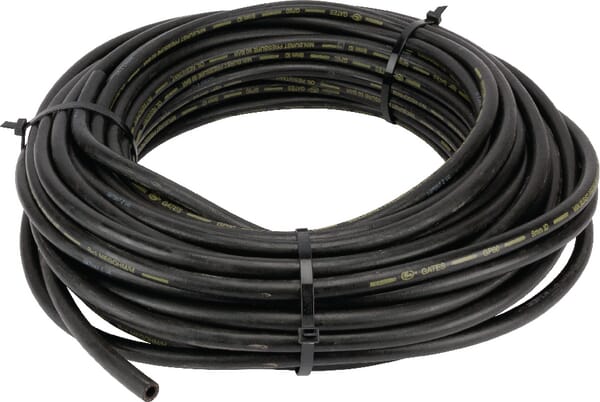

Gates Hose GP60 8mm 40m GP608P040
£11.88 excl.
£14.26 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000160167

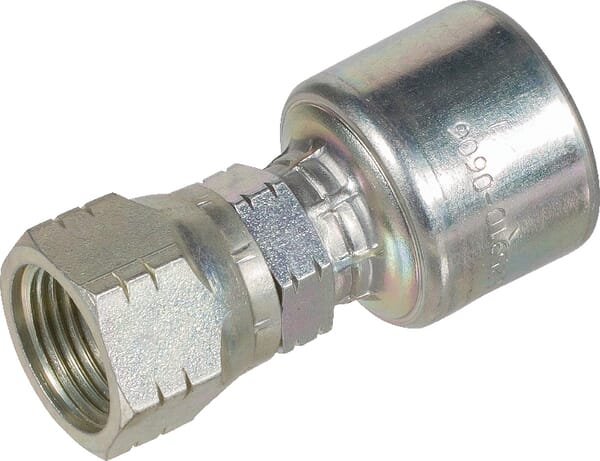

Gates Insert Komatsu DN10-M18x1.5 6G6FKX
£23.27 excl.
£27.92 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000192658
Gates Insert DN13-7/8 JIC 8GS10FJX
£20.76 excl.
£24.91 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000044288

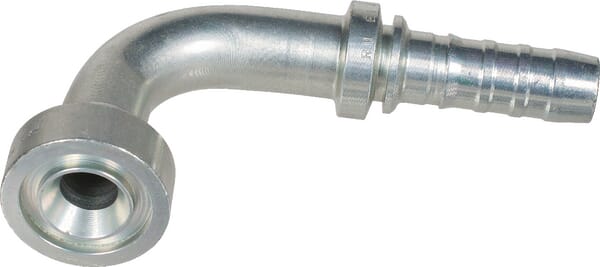

Gates Insert 90° DN20-41.3 suitable for CAT 12GS12FLC90068
£199.16 excl.
£238.99 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000148380

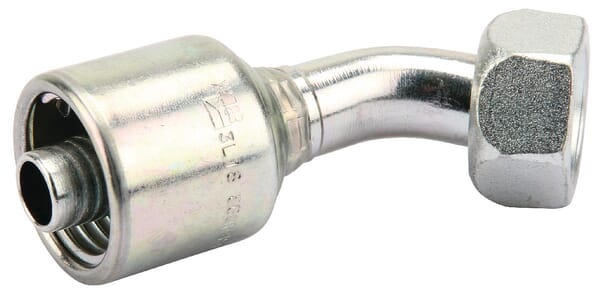

Gates Insert 45° DN8-3/8"BSP 5G6FBSPORX45
