£1,882.50
excl. VAT
£2,259.00 incl. VAT
Pack of 50 · £37.65 each excl. VAT
£2,259.00
incl. VAT
£1,882.50 excl. VAT
Pack of 50 · £45.18 each incl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Approval | MSHA 2G |
|---|---|
| Bend radius | 76 mm |
| Burst pressure | 1048 BAR |
| Colour outside | Black |
| Cover resistance | Abrasion, Flame, Oil, Weather |
| DN | 16 mm |
| Dynamic pressure | 262 BAR |
| EN Standard | 857 2SC, 853 2SN |
| Hose inside diameter | 15.9 mm |
| Hose outside diameter | 24.1 mm |
| ISO standard | 1436 |
| Long description | Gates MegaFlex M2T is a flexible high-pressure hydraulic hose with a small bending radius. This hose meets or exceeds the requirements of the latest SAE 100R16-; ISO-11237 and EN8572SC standards. This compact hose has two layers of high quality steel wire reinforcement. |
| Material inside | Nitrile |
| Material outside | Nitrile, PVC |
| Max working pressure | 262 BAR |
| Max working temperature | 100 °C |
| Max. working temperature | 100 °F |
| Medium | Hydraulic oil, Water Glycol, Esthers |
| Min working temperature | -40 °C |
| Min. working temperature | -40 °F |
| Norm | 100R16, 100R2 |
| Product details | Recommended for hose installation in tight or confined spaces, The two reinforcement layers are made of high quality steel wire, Manufactured from synthetic rubber and fitted with modified Nitrile type C2, The outside is oil resistant, has a high wear resistance and is weather resistant, Suitable for mobile applications used in agriculture, construction, mining and other sectors, as well as in stationary applications in industry and MRO, among others |
| Pros | The small bending radius allows shorter assemblies, saving money, Improved flexibility for easier installation in confined spaces, Longer service life in situations with demanding pressure pulses and bending applications, The green hose with silver print makes it easy to identify the hose |
| Qty. Rounding | 50 |
| Recommended coupling type | GlobalSpiral™ |
| Reinforcement number of plies | 2 |
| Reinforcement type | Braid |
| Size | 10 |
| Type | Hydraulic high pressure hose |
| Unit | Metre |
Logistics
| EAN | 5400608160680 |
|---|---|
| Unit of measure | MTR |
| Weight | 800 g |
| Dimensions | 1000 × 25 × 25 mm |
| Dangerous goods | No |
You might also like
BPA000160189

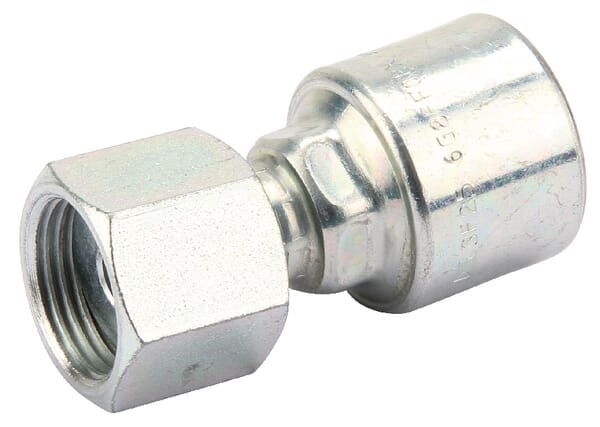

Gates Insert DN10-13/16 ORFS 6G8FFORX
£13.25 excl.
£15.90 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000368228

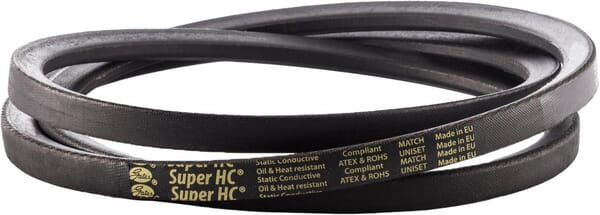

Gates V-belt SPB2650 SUPERHC SPB2650GA
£73.61 excl.
£88.33 incl.
In stock
Expected to ship on Thursday 24 September
BPA000125968

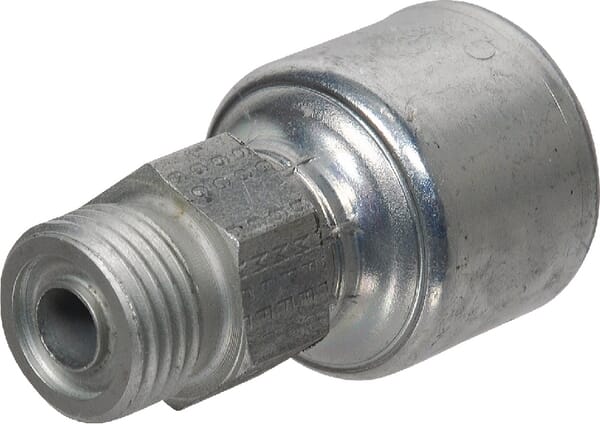

Gates Insert DN6-11/16 ORFS 4G6MFFOR
£41.04 excl.
£49.25 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000192548

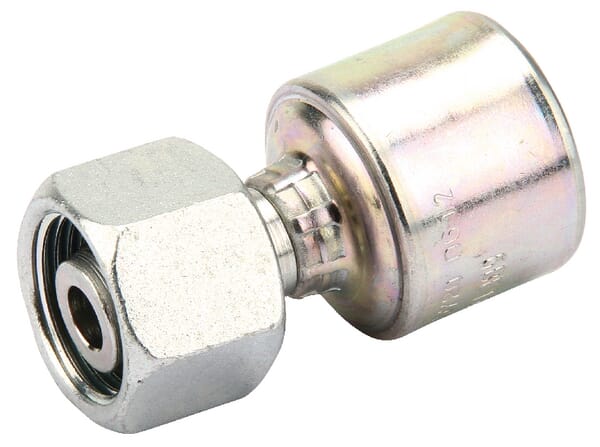

Gates Insert DN13-M20x1.5 8G12FDHORX
£25.39 excl.
£30.47 incl.
In stock
Expected to ship on Thursday 24 September
BPA000192664

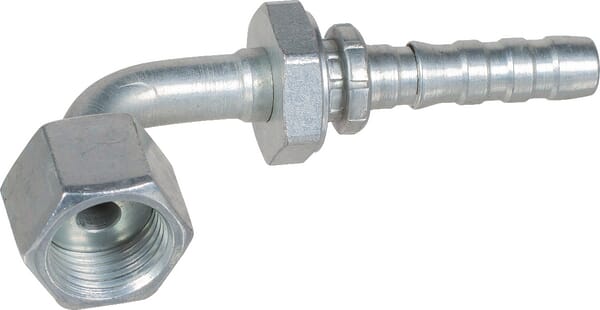

Gates Insert 90° D N13-1"3/16SAE 8GS12FFORX90S
£82.39 excl.
£98.87 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000190671

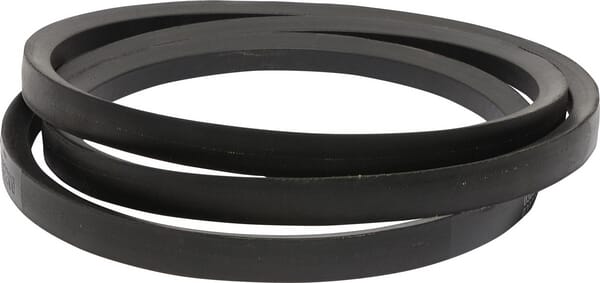

Gates Belt 84817628
