£1,868.50
excl. VAT
£2,242.20 incl. VAT
Pack of 50 · £37.37 each excl. VAT
£2,242.20
incl. VAT
£1,868.50 excl. VAT
Pack of 50 · £44.84 each incl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Approval | DNV, GL, LR, BV, ABS, MOD |
|---|---|
| Bend radius | 100 mm |
| Burst pressure | 1120 BAR |
| Details | Flexible |
| DN | 16 mm |
| Hose inside diameter | 15.9 mm |
| Hose outside diameter | 25 mm |
| Length | 50 m |
| Long description | Gates M4K is a flexible 4000 psi wire-braid hydraulic hose designed for high-pressure hydraulic oil applications and tight installation spaces. Its one- or two-braid reinforcement technology provides high kink resistance, excellent tensile strength and a compact bend radius. M4K supports easier routing and installation while delivering dependable performance for mobile and industrial hydraulic systems using petroleum-based, water-based and compatible general industrial fluids. |
| Material inside | Nitrile rubber [NBR] |
| Material outside | Nitrile rubber [NBR], PVC |
| Max working pressure | 280 BAR |
| Max working temperature | 100 °C |
| Medium | Hydraulic oil, Esthers, Vegetable oil |
| Min working temperature | -40 °C |
| Number of plies | 2 |
| Product details | 4000 PSI constant pressure, Two-wire braid reinforcement, Compact construction, Compatible with biodegradable fluids, Temperature range: -40°C to +100°C, Biodegradable oils (synthetic esters, glycol and vegetable oils), Mineral oils, Good alternative to spiral hoses in high-pressure lines |
| Qty. Rounding | 50 |
| Reinforcement material | High tensile steel |
| Reinforcement number of plies | 2 |
| Reinforcement type | Braid |
| Size | 10 |
| Type | Hydraulic high pressure hose |
| Unit | Metre |
| Weight | 0.74 kg/m |
Logistics
| EAN | — |
|---|---|
| Unit of measure | MTR |
| Weight | 800 g |
| Dimensions | 570 × 570 × 6 mm |
| Dangerous goods | No |
You might also like
Free shipping

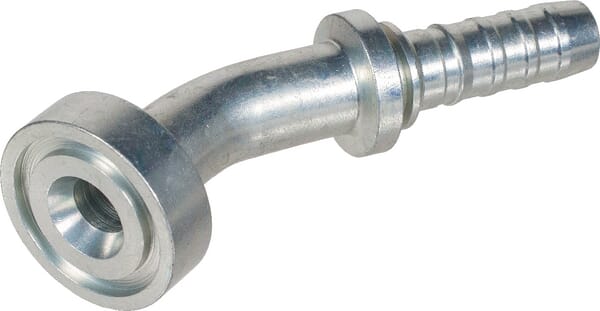

BPA000056621
Gates Insert 30° DN25-54 suitable for CAT 16GS20FLC30023
£245.92 excl.
£295.10 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000031592
Gates Insert DN16-1"3/16 ORFS 10G12MFFOR
£62.28 excl.
£74.74 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

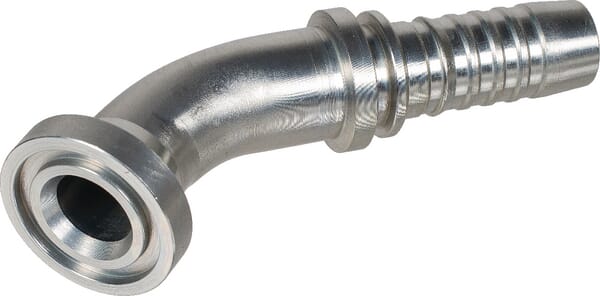

BPA000044319
Gates Insert DN20+47.6 flange 45° 12GS16FLH45M
£115.09 excl.
£138.11 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

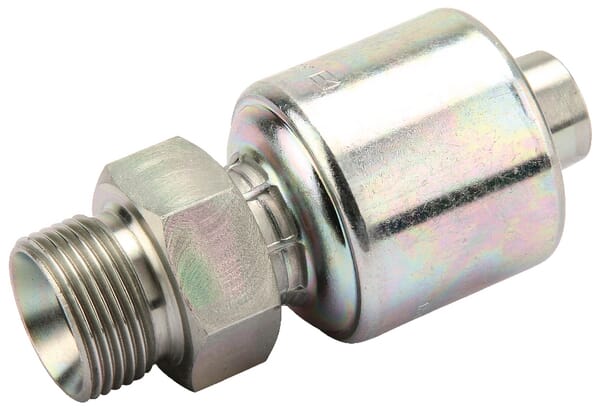

BPA000068793
Gates Insert DN32-1"1/4 BSPP 20G20MBSPP
£153.65 excl.
£184.38 incl.
Backorder available
Usually ships within 3–8 weeks

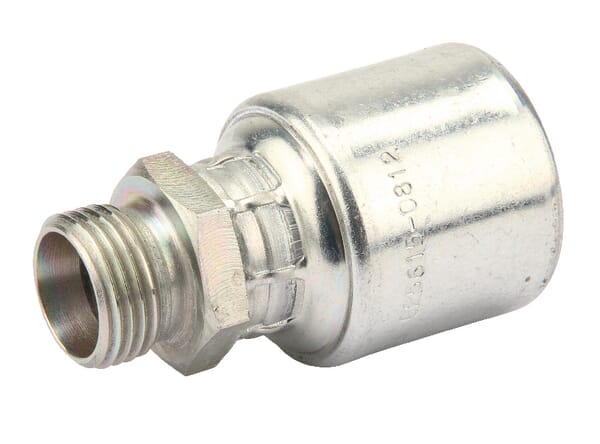

BPA000192566
