£1,800.00
excl. VAT
£2,160.00 incl. VAT
Pack of 50 · £36.00 each excl. VAT
£2,160.00
incl. VAT
£1,800.00 excl. VAT
Pack of 50 · £43.20 each incl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Approval | MSHA 2G |
|---|---|
| Bend radius | 76 mm |
| Burst pressure | 1000 BAR |
| Colour outside | Black |
| Cover resistance | Flame, Oil, Weather |
| DN | 16 mm |
| Dynamic pressure | 250 BAR |
| EN Standard | 857 2SC, 853 2SN |
| Hose inside diameter | 16 mm |
| Hose outside diameter | 24 mm |
| ISO standard | 1436, 11237 |
| Long description | Gates MegaSys MXT is a hydraulic hose made of high quality wear resistant rubber. The hose is light, strong, flexible and universally applicable. |
| Material inside | Nitrile rubber [NBR] |
| Material outside | Nitrile rubber [NBR], PVC |
| Max working pressure | 250 BAR |
| Max working temperature | 100 °C |
| Max. working temperature | 212 °F |
| Medium | Hydraulic oil, Water Glycol, Esthers |
| Min working temperature | -40 °C |
| Min. working temperature | -40 °F |
| Norm | 100R16 |
| Product details | One layer of high tensile strength braided steel wire reinforcement., Made of synthetic rubber, The outside is oil resistant and wear resistant, Certified flame resistant by MSHA, Suitable for mobile applications used in agriculture, construction, mining, Coupling recommendation : MegaCrimp Couplings, G25 Series |
| Pros | A small bending radius, Lightweight, Universally applicable, The blue print makes it easy to identify the hose |
| Qty. Rounding | 50 |
| Recommended coupling type | MegaCrimp® |
| Reinforcement material | High tensile steel |
| Reinforcement type | Braid |
| Size | 10 |
| Type | Hydraulic high pressure hose |
| Unit | Metre |
| Weight | 0.46 kg/m |
Logistics
| EAN | 5400608105261 |
|---|---|
| Unit of measure | MTR |
| Weight | 820 g |
| Dimensions | 570 × 570 × 7 mm |
| Dangerous goods | No |
You might also like
BPA000192553

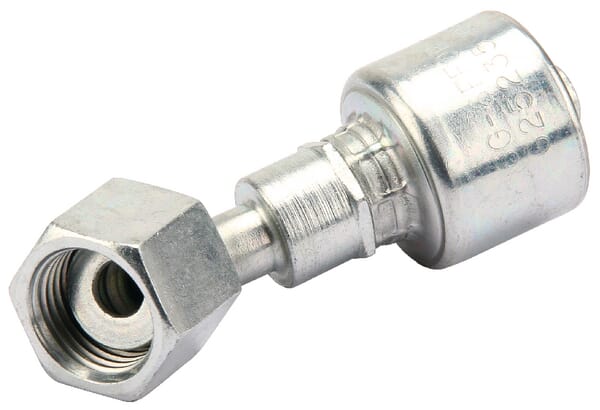

Gates Insert 45° DN13-1"3/16ORFS 8G12FFORX45S
£91.60 excl.
£109.92 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000056530

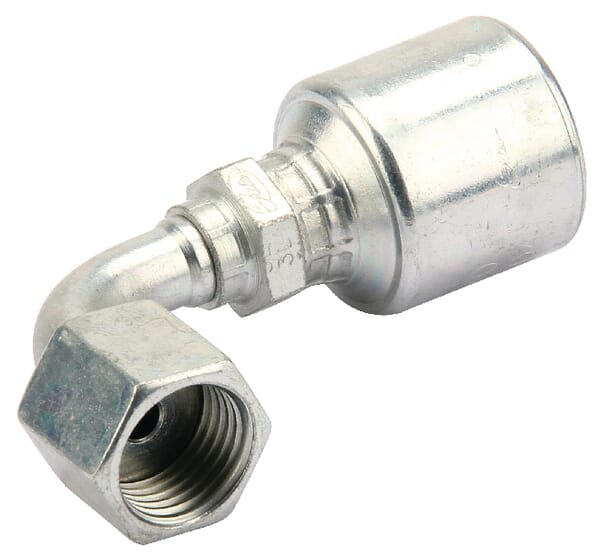

Gates Insert 90° DN25-1"3/16ORFS 16G12FFORX90S
£213.95 excl.
£256.74 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000056588

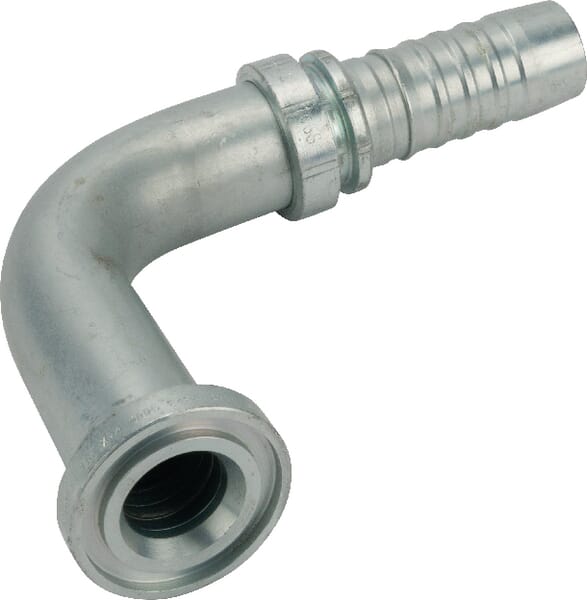

Gates Insert DN25-44.5 flange 90° 16GS16FL90100
£125.37 excl.
£150.44 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000044283

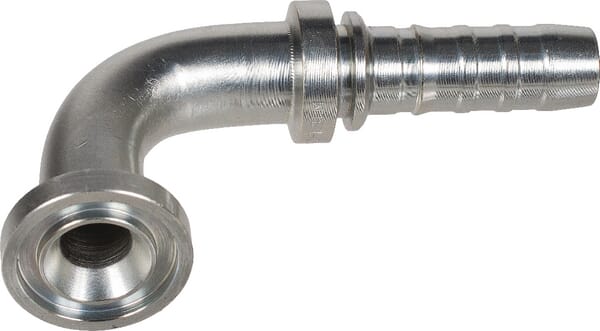

Gates Insert DN20-38.1 flange 90° 12GS12FL90M
£53.20 excl.
£63.84 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000398427

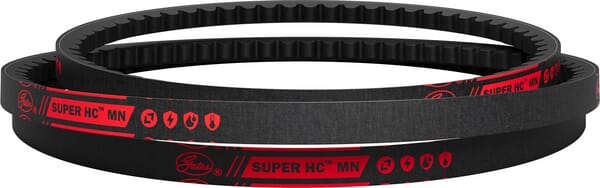

Gates V-belt XPA1705 SUPERHC MN XPA1705GA
£31.37 excl.
£37.64 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000192544

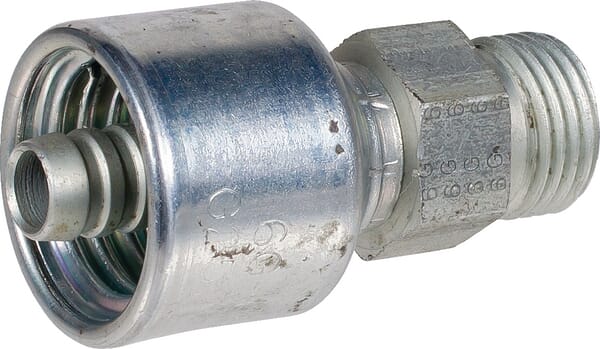

Gates Insert DN13-1" ORFS 8G10MFFOR
