£2,013.45
excl. VAT
£2,416.14 incl. VAT
£2,416.14
incl. VAT
£2,013.45 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Approval | DNV, GL, LR, BV, ABS, MOD |
|---|---|
| Bend radius | 75 mm |
| Burst pressure | 1120 BAR |
| Colour outside | Black |
| Cover resistance | Abrasion, Flame, Oil, Weather |
| Details | Flexible |
| Dynamic pressure | 280 BAR |
| EN Standard | 857 2SC |
| Hose inside diameter | 15.9 mm |
| Hose outside diameter | 25 mm |
| ISO standard | 6945 |
| Length | 67 m |
| Long description | Gates M4K is a flexible 4000 psi wire-braid hydraulic hose designed for high-pressure hydraulic oil applications and tight installation spaces. Its one- or two-braid reinforcement technology provides high kink resistance, excellent tensile strength and a compact bend radius. M4K supports easier routing and installation while delivering dependable performance for mobile and industrial hydraulic systems using petroleum-based, water-based and compatible general industrial fluids. |
| Material inside | Nitrile rubber [NBR] |
| Material outside | Nitrile rubber [NBR], PVC |
| Max working pressure | 280 BAR |
| Max working temperature | 100 °C |
| Max. working temperature | 100 °F |
| Medium | Hydraulic oil, Esthers, Vegetable oil |
| Min working temperature | -40 °C |
| Min. working temperature | -40 °F |
| Norm | 100R19 |
| Product details | 4000 PSI constant pressure, Two-wire braid reinforcement, Compact construction, Compatible with biodegradable fluids, Temperature range: -40°C to +100°C, Biodegradable oils (synthetic esters, glycol and vegetable oils), Mineral oils, Good alternative to spiral hoses in high-pressure lines |
| Recommended coupling type | MegaCrimp® |
| Reinforcement material | High tensile steel |
| Reinforcement number of plies | 2 |
| Reinforcement type | Braid |
| Size | 10 |
| Type | Hydraulic high pressure hose |
| Unit | Each |
Logistics
| EAN | 5412571519792 |
|---|---|
| Unit of measure | EA |
| Weight | 767 g |
| Dimensions | 520 × 460 × 460 mm |
| Dangerous goods | No |
You might also like
BPA000044270

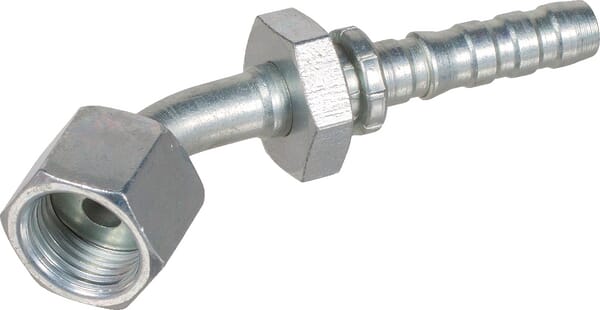

Gates Insert 45° DN20-1"3/16SAE 12GS12FFORX45S
£88.55 excl.
£106.26 incl.
In stock
Expected to ship on Thursday 24 September
BPA000398414

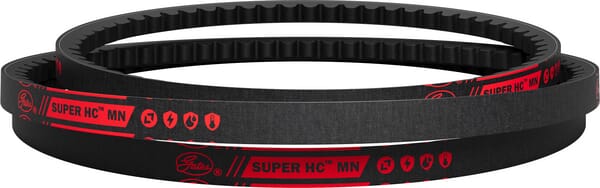

Gates V-belt XPA1630 SUPERHC MN XPA1630GA
£30.76 excl.
£36.91 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000192690

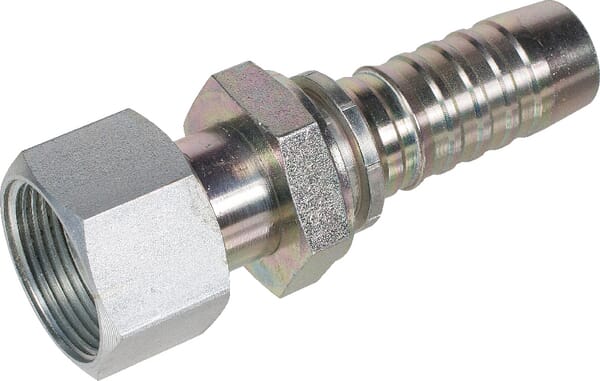

Gates Insert DN13-13/16SAE 8GS8FFORX
£15.83 excl.
£19.00 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000056565
Gates Hose SAE100R4 1" 16GMV
£61.39 excl.
£73.67 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000068792

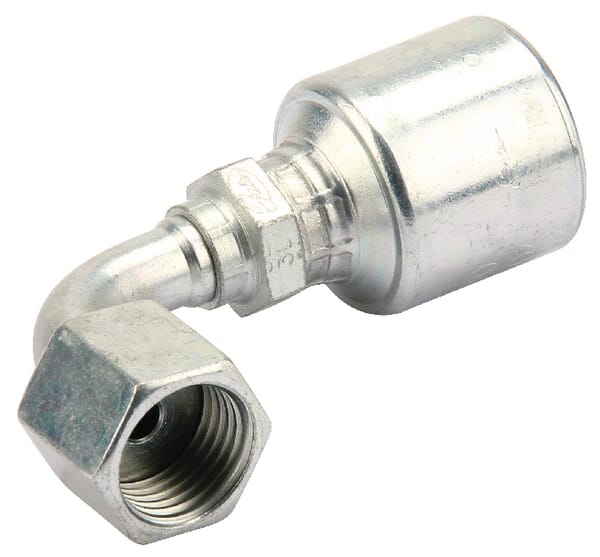

Gates Insert DN32-1"11/16ORFS 90° 20G20FFORX90S
£190.47 excl.
£228.56 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000044237

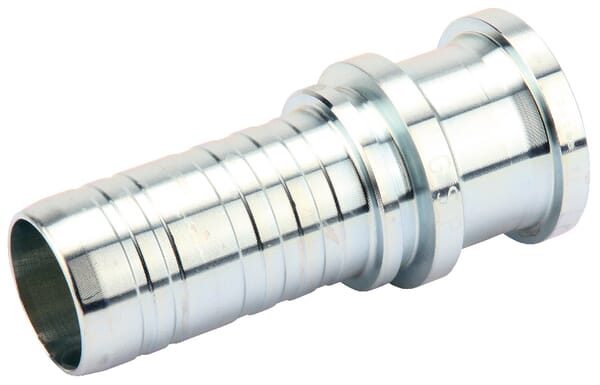

Gates Insert DN20+1" flange 12G16FL
