£53.94
excl. VAT
£64.73 incl. VAT
£64.73
incl. VAT
£53.94 excl. VAT
In stock
Expected to ship on Wednesday 23 September
Product details
| Approval | DNV, GL, LR, BV, ABS, MOD |
|---|---|
| Bend radius | 100 mm |
| Burst pressure | 1120 BAR |
| Colour outside | Black |
| Cover resistance | Abrasion, Flame, Oil, Weather |
| Details | Flexible |
| DN | 16 mm |
| Dynamic pressure | 280 BAR |
| EN Standard | 857 2SC |
| Hose inside diameter | 15.9 mm |
| Hose outside diameter | 25 mm |
| ISO standard | 11237 |
| Long description | Gates M4K is a flexible 4000 psi wire-braid hydraulic hose designed for high-pressure hydraulic oil applications and tight installation spaces. Its one- or two-braid reinforcement technology provides high kink resistance, excellent tensile strength and a compact bend radius. M4K supports easier routing and installation while delivering dependable performance for mobile and industrial hydraulic systems using petroleum-based, water-based and compatible general industrial fluids. |
| Material inside | Nitrile rubber [NBR] |
| Material outside | Nitrile rubber [NBR], PVC |
| Max working pressure | 280 BAR |
| Max working temperature | 100 °C |
| Max. working temperature | 100 °F |
| Medium | Hydraulic oil, Esthers, Vegetable oil |
| Min working temperature | -40 °C |
| Min. working temperature | -40 °F |
| Norm | 100R19 |
| Number of plies | 2 |
| Product details | 4000 PSI constant pressure, Two-wire braid reinforcement, Compact construction, Compatible with biodegradable fluids, Temperature range: -40°C to +100°C, Biodegradable oils (synthetic esters, glycol and vegetable oils), Mineral oils, Good alternative to spiral hoses in high-pressure lines |
| Qty. Rounding | 0.01 |
| Recommended coupling type | MegaCrimp® |
| Reinforcement material | High tensile steel |
| Reinforcement number of plies | 2 |
| Reinforcement type | Braid |
| Size | 10 |
| Type | Hydraulic high pressure hose |
| Unit | Metre |
| Weight | 0.74 kg/m |
Logistics
| EAN | 5400608266238 |
|---|---|
| Unit of measure | MTR |
| Weight | 500 g |
| Dimensions | 1000 × 25 × 25 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000056528

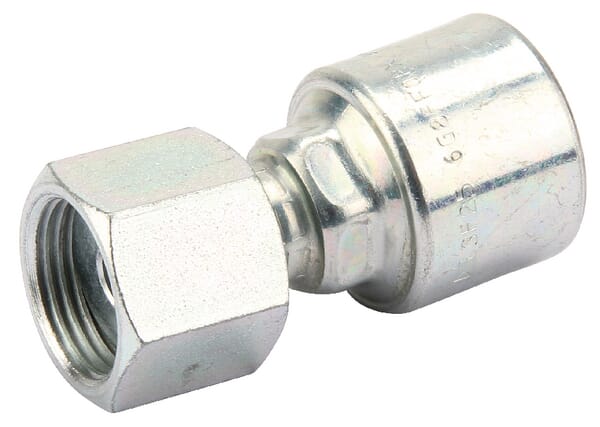

Gates Insert DN25-1"3/16ORFS 16G12FFORX
£145.72 excl.
£174.86 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000398815

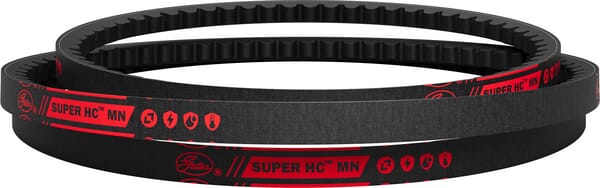

Gates V-belt XPZ850/3VX335 SUPERHC MN XPZ850GA
£11.06 excl.
£13.27 incl.
In stock
Expected to ship on Thursday 24 September
BPA000192563

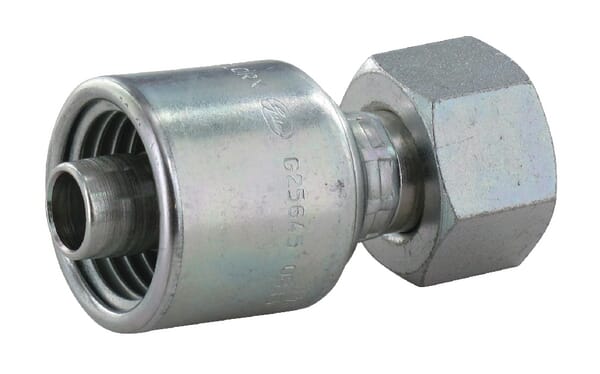

Gates Insert DN13-M22x1.5 8G15FDLORX
£10.23 excl.
£12.28 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000160104

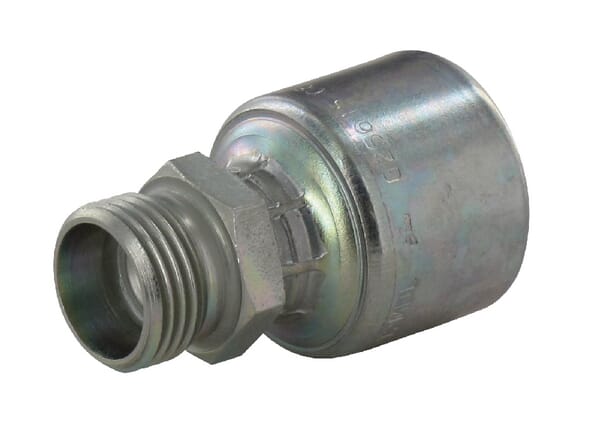

Gates Insert DN10-M16x1.5-10L 6G10MDL
£8.52 excl.
£10.22 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000031665

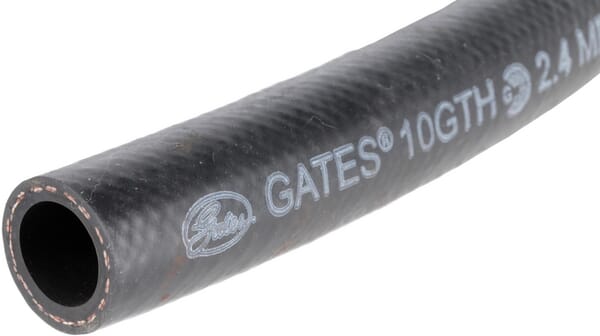

Gates Hose SAE100R6 135° 5/8" 10GTH
£43.47 excl.
£52.16 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000044272

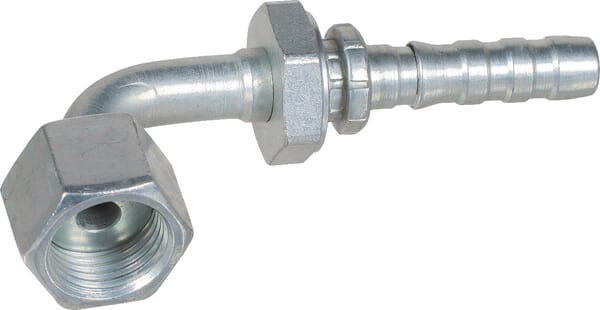

Gates Insert 90° N20-1"3/16SAE 12GS12FFORX90S
£142.46 excl.
£170.95 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000094414

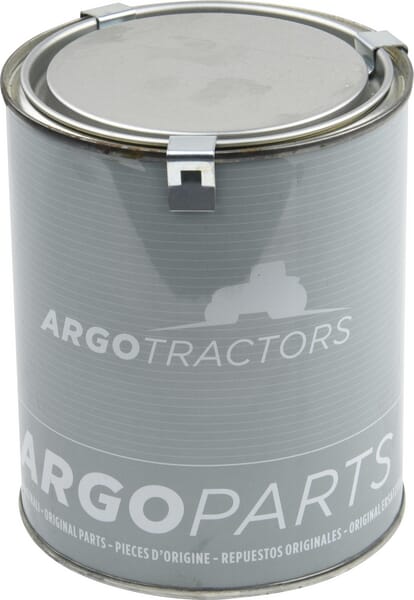

Landini Paint 3541640M1
