£4,246.09
excl. VAT
£5,095.31 incl. VAT
£5,095.31
incl. VAT
£4,246.09 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Approval | DNV, GL, LR, BV, MOD |
|---|---|
| Bend radius | 50 mm |
| Burst pressure | 1400 BAR |
| DN | 6 mm |
| Hose inside diameter | 6.4 mm |
| Hose outside diameter | 13.7 mm |
| Length | 175 m |
| Material inside | Nitrile rubber [NBR] |
| Material outside | Nitrile rubber [NBR], PVC |
| Max working pressure | 350 BAR |
| Max working temperature | 100 °C |
| Medium | Hydraulic oil, Esthers, Vegetable oil |
| Min working temperature | -40 °C |
| Number of plies | 2 |
| Product details | High-pressure oil applications, Biodegradable oils (synthetic esters, glycol and vegetable oils), Mineral oils, These reels contain a maximum of three lengths per reel, with the shortest length being at least 3 metres. |
| Pros | Flexible, Good resistance to pulse pressures, Lightweight, Good alternative to high-pressure spiral hoses |
| Reinforcement material | High tensile steel |
| Reinforcement number of plies | 2 |
| Reinforcement type | Braid |
| Size | 4 |
| Type | Hydraulic high pressure hose |
| Unit | Each |
| Weight | 0.3 kg/m |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 50600 g |
| Dimensions | 560 × 560 × 320 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000126014
Gates Reel f.175-m hose EN8572SC 1/4 4M6KP175
£4,911.93 excl.
£5,894.32 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000367975
Gates V-belt SPA2000 SUPERHC SPA2000GA
£40.58 excl.
£48.70 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000403426

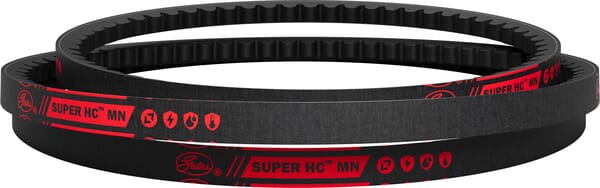

Gates V-belt XPZ925/3VX366 SUPERHC MN XPZ925GA
£11.93 excl.
£14.32 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000056541

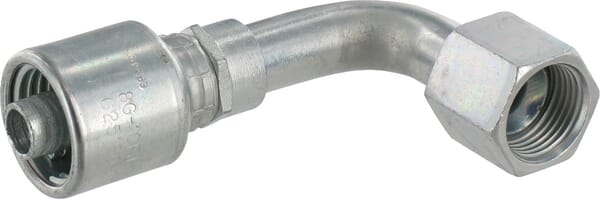

Gates Insert 90° DN25-1"5/16 JIC 16G16FJX90M
£63.32 excl.
£75.98 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000368130

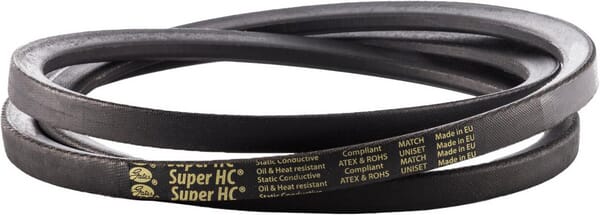

Gates V-belt SPB1250 SUPERHC SPB1250GA
£35.35 excl.
£42.42 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000281671

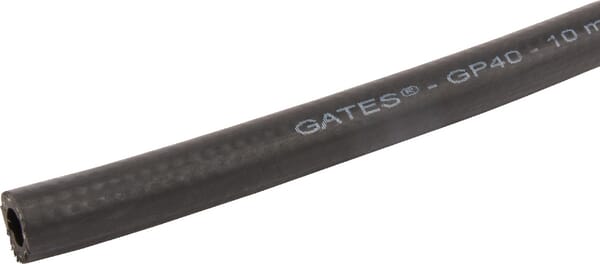

Gates Hose GP40 10 mm 40-m GP4010P040
